CAD Audio 2700VP
56" Mini Choir Boom Variable Polar Pattern Condenser Microphone

OUR PART #:  2700VP

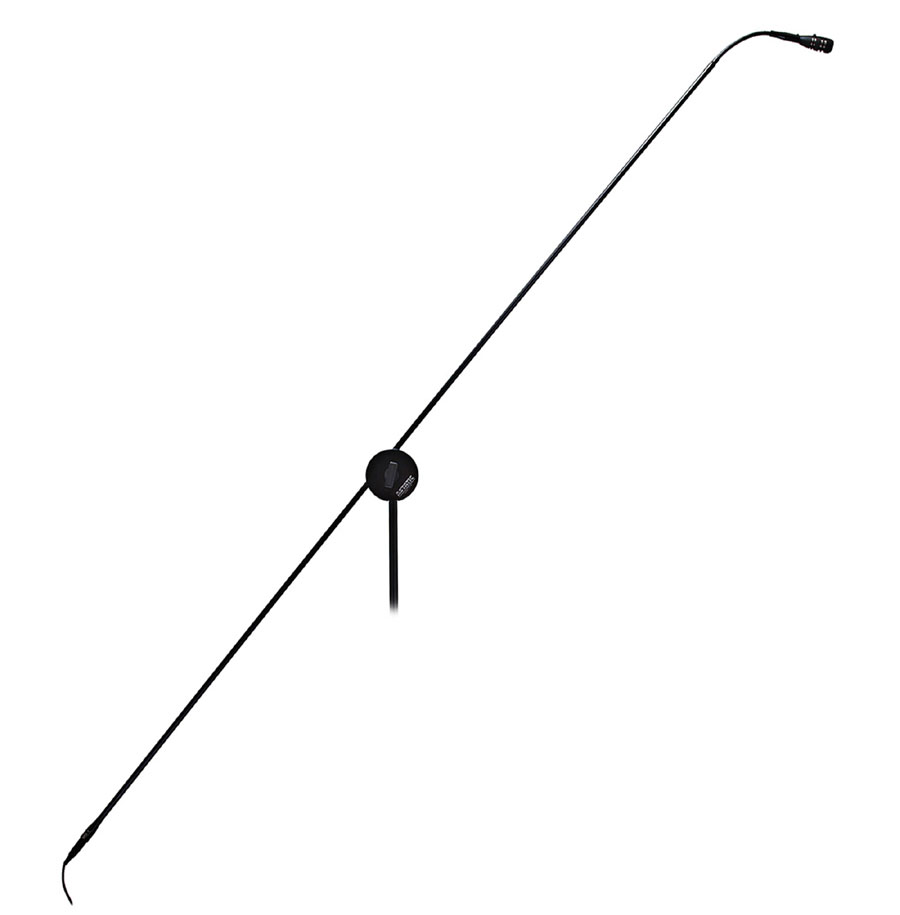

CAD Audio's 2700VP is a continuously-variable pattern condenser 56” boom microphone system with remote polar control through a Digital Signal Processor (DSP).
Learn More
Our Price: $549.00
List Price: $789.00
You save 30%!
Write the first review.
CAD Audio 2700VP
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

CAD Audio's 2700VP is a continuously-variable pattern condenser 56” boom microphone system with remote polar control through a Digital Signal Processor (DSP). The variable polar pattern with remote control allows the user to precisely adjust the shape of the pick-up pattern for best performance from within a DSP. Utilizing a two-conductor shielded cable (max length 2,000 feet) between the microphone head and the DSP unit, the polar pattern of the microphone can be adjusted in real time without changing capsules, microphone positions, or inducing noise in the audio chain.

NOTE: This is a DSP-controlled model and the variable remote control pattern box is NOT included.  Please see the 1700VP remote control box for more information on that option.

Special attention has been given to the frequency response and sensitivity of the microphone while utilizing the variable-pattern control to precisely alter the shape of the pick-up pattern. The large diameter, low-noise elements produce a frequency response of 40Hz to 20KHz.

The 2700VP has been designed to resist interference from devices such as cell phones, two-way communication devices and lighting apparatus. Utilizing our RF Resistant Architecture, the 2700VP meets the stringent RF standards set by the European Union (see the specification section for more information).

The 2700VP comes complete with 30' (9.1m) of two-conductor shielded cable terminated with a TA3F type connector and XLRM-type connector. Also included with the microphone system is a carbon fiber 56” boom with exclusive clutch rotation system.  The boom can be mounted to any tripod or round base microphone stand.

The 2700VP is primarily designed for recording and sound reinforcement of choirs, instruments and ambient miking. The 2700VP can also be used for vocal pick-up in government, institutional and business applications. The 2700VP is designed to be used on a free-standing microphone post.

The 2700VP microphone system is designed to shorten the list of products an audio designer needs to consider when hanging microphones are specified. The remote variable polar pattern control allows the installer or end user the ability to change polar patterns when installed or from scene to scene. Adjustments to the pick-up pattern can be done on the fly without costly lifts, ladders and capsules. Choose the 2700VP for your next overhead boom microphone install.


  • Operating Principle: Condenser
  • Polar Pattern: Continuously-variable
  • Frequency Response: 40Hz - 20KHz
  • Sensitivity: -29dBV (35mV) @ 1Pa
  • Impedance: 135 ohms
  • Self Noise: 22dBA
  • Maximum SPL: 110dB, 1%THD, 1KHz
  • Power Requirements: P12, P24, P48, 4mA
