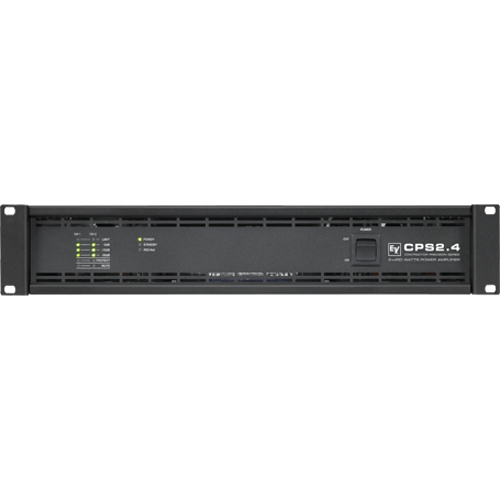

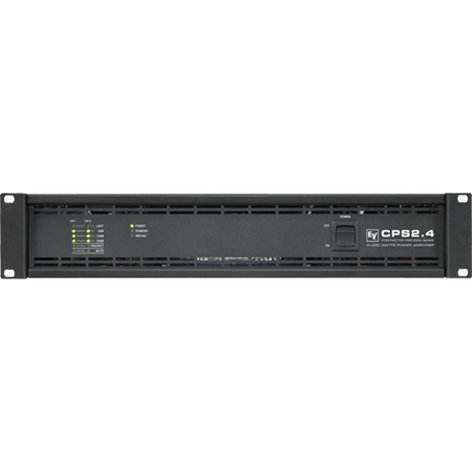

Electro-Voice CPS2.4-II
Power Amplifier, 2 Channel, 2 x 450W @ 4 Ohms

OUR PART #:  CPS2.4-II

Electro-Voice's CPS two-channel amplifiers provide flexibility and reliable audio performance for the professional installation business.
Learn More
Our Price: $807.00
Write the first review.
Electro-Voice CPS2.4-II
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Electro-Voice's CPS two-channel amplifiers provide flexibility and reliable audio performance for the professional installation business. Designed for the contractor, CPS two-channel amplifiers feature 2RU constructions, Phoenix-type connectors for inputs and outputs, pre-programmable power-on delay, easy power-on remote via contact enclosure, rear level controls, and a switchable, 50Hz high-pass filter (HPF).

Various optional signal processing modules include 500Hz and 800Hz crossovers for cinema systems as well as the XHP Variable high-pass module for ZX, Sx and EVID loudspeakers.

Like the CPS multi-channel amplifiers, CPS two-channel models also include a module slot for the RCM-810 remote-control module, enabling networking services for remote system diagnostics and control via IRIS-Net software.

Electro-Voice CPS2.4-II Features:

  • Designed for Cinema, Club Sound, Commercial Sound/Life Safety, House of Worship, Performance & Sports Venues, Stadium Systems, and other applications
  • Up to 2 x 650W into 2 ohms
  • Phoenix-type input and output connections
  • Remote power-on/off contact
  • Rear-mounted attenuators
  • Programmable time for custom power-on delay settings
  • Module slot for optional RCM-810 card, allowing IRIS-Net control and monitoring
  • Switchable 50Hz high-pass filter
  • Three-stage front-to-rear fans

Electro-Voice CPS2.4-II Specifications:

  • Maximum Midband Output Power (THD=1%, 1kHZ):
    • 2 x 650W @ 2 ohms
    • 2 x 450W @ 4 ohms
    • 2 x 270W @ 8 ohms
  • Rated Output Power (THD <0.3%, 20Hz-20kHz):
    • 2 x 400W @ 4 ohms
    • 2 x 200W @ 8 ohms
  • Maximum Bridged Output Power (THD=1%, 1kHz):
    • 1 x 1300W @ 4 ohms
    • 1 x 900W @ 8 ohms
  • Maximum RMS Voltage Swing (THD=1%, 1kHz, per channel): 55.3V
  • Power Bandwidth (THD=1% ref.1kHz, half power @ 4 ohms load): 10Hz-30kHz
  • Voltage Gain, ref. 1kHz: 32.0 dB
  • THD at rated output power (MBW=80kHz, 1kHz): <0.03%
  • IMD-SMPTE, 60Hz, 7kHz: <0.1%
  • DIM30, 3.15kHz, 15kHz: <0.05%
  • Maximum Input Level: +21dBu
  • Crosstalk, ref. 1kHz at rated output power: <80dB
  • Frequency Response, ref. 1kHz: 10Hz-40kHz (+/-1dB)
  • Input Impedance, active balanced: 20k ohms
  • Damping Factor, 1khz, 8 ohms: >300
  • Slew Rate: 27V/us
  • Output Noise, A-weighted: <-71dBu
  • Output Stage Topology: Class AB
  • Power Consumption, 1/8 max. output power @ 4 ohms: 550W
  • Power Requirements: 240V, 230V, 120V or 100V; 50Hz or 60Hz (factoryconfigured)
  • Protections: Audio Limiters, Temperature, DC, HF Short Circuit, Peak Current Limiters, Inrush Current Limiters, Turn-on Delay
  • Cooling: Front-to-rear, 3-stage fans
  • Ambient Temperature Limits: 40° to 105°F
  • Safety Class: I
  • Dimensions (W x H x D): 19" x 34.7" x 16.6"
  • Weight: 27.9 lbs
  • Optional Accessories:
    • 2-way internal X-Over cards, 24dB, LR, XHP-5 for 500Hz/XHP-8 for 800Hz
    • RCM-810 IRIS-Net Control & Supervision Module
    • Rear-Rackmount Kit RMK-15
