Audio-Technica ATW-3110b
Frequency-Agile True Diversity UHF Wireless Bodypack System, 482-507 MHz

OUR PART #:

The Audio-Technica ATW-3110b is part of the third-generation 3000 Series wireless systems...
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

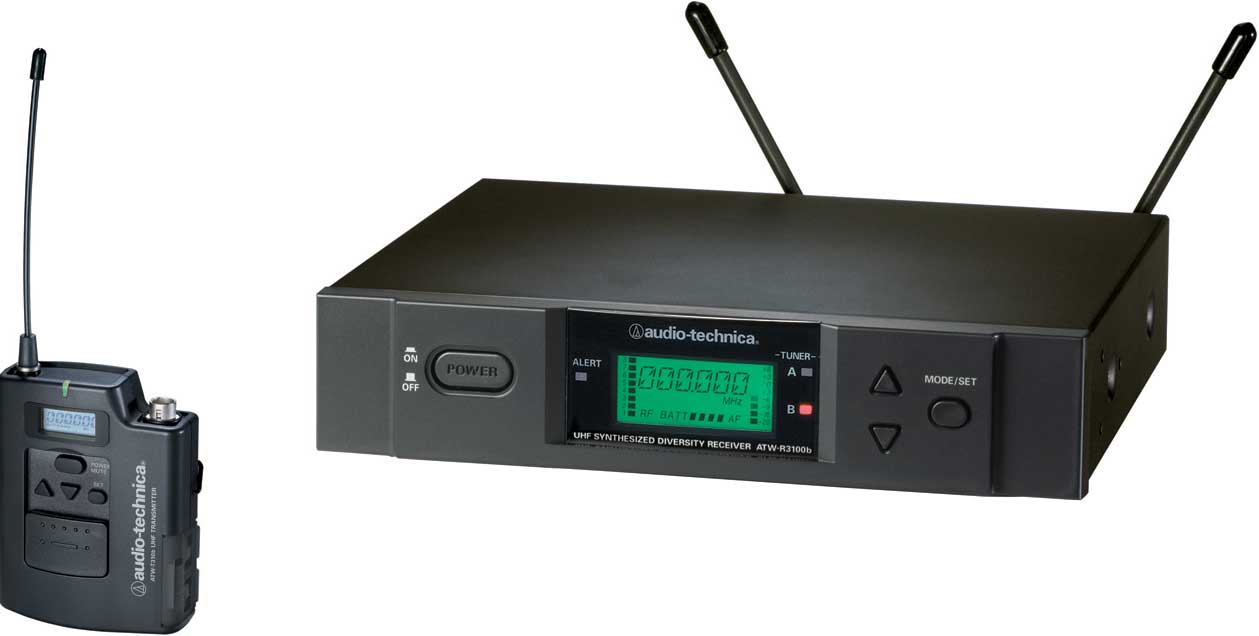

The Audio-Technica ATW-3110b is part of the third-generation 3000 Series wireless systems, which offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. Audio-Technica has simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.

The versatile ATW-T310b UniPak body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter's control panel prevents accidental shut-off or channel-switching. A new locking battery compartment provides a more secure latch and more robust design.

Audio-Technica ATW-3110b Features:

  • 996-1001 UHF frequencies in one of three UHF frequency ranges
  • Antenna power available for powered antennas & other in-line RF devices
  • Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
  • True Diversity operation reduces dropouts
  • Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display
  • Transmitters offer backlit LCD & dual-color LED
  • Locking battery compartment with secure latch and robust design
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks

Audio-Technica ATW-3110b Specifications:

  • Overall System:
    • Operating Frequencies:  UHF Band I, 482.000 MHz to 507.000 MHz (1001 frequencies)
      • Not all frequencies are available in all areas. Please check with local regulations.
    • Minimum Frequency Step:  25 kHz
    • Modulation Mode:  FM
    • Maximum Deviation:  ±35 kHz
    • Dynamic Range:  >110dB (A-weighted), typical
    • Total Harmonic Distortion:  <1% (at 1kHz, +/-17.5 kHz deviation)
    • Operating Range:  100m (300') typical
      • Open range environment with no interfering signals
    • Operating Temperature Range:  -5º C to +45º C (23º F to 113º F)
      • Battery and LCD performance may be reduced at very low temperatures
    • Frequency Response:  70 Hz to 15 kHz (+1 dB, -3 dB)
  • ATW-R3100b Receiver:
    • Receiving System:  True diversity
    • Image Rejection:  60dB nominal, 55dB minimum
    • RF Sensitivity:  20 dBuV at 60 dB S/N ratio
    • Maximum Output Level:  XLR, balanced: +9dBV; 1/4", unbalanced: +7 dBV
    • Antenna Input:  BNC-type, 50 ohms; Bias voltage 12V DC, 60 mA, each
    • Power Requirements:  12-18V DC, 500 mA
    • Dimensions (WxDxH):  8.27" x 6.47" x 1.73" (not including BNC connectors or feet)
    • Net Weight:  38.8 oz, without accessories
    • Accessories Included:  Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
  • ATW-T310b Transmitter:
    • RF Power Output:  High: 30mW, Low: 10mW (switchable), at 50 ohms
    • Spurious Emissions:  Following federal and national regulations
    • Input Connection:  Four-pin Locking Connector
      • Pin 1:  GND
      • Pin 2:  INST INPUT
      • Pin 3:  MIC INPUT
      • Pin 4:  DC BIAS +5V
    • Batteries:  Two 1.5V AA, not included
    • Battery Life:  Depending on battery type and use pattern
      • High:  6 hours (alkaline)
      • Low:  8 hours (alkaline)
    • Dimensions (WxDxH):  2.6" x 0.94" x 3.43"
    • Net Weight:  2.9 oz, without batteries
