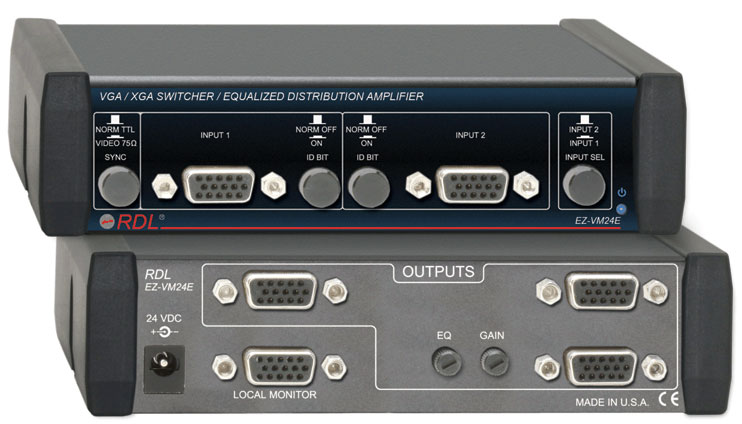

Radio Design Labs EZ-VM24E
Switcher, 2x4 VGA/XGA

OUR PART #  EZ-VM24E

Our Price: $210.82
List Price: $282.02
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The EZ-VM24E is a high-resolution computer video source selector and distribution amplifier with two inputs and four outputs. A front-panel switch selects between the inputs. Each input has an associated ID BIT switch to assure compatibility with various computers. The sync for input 1 is front-panel switch-selectable between standard TTL or 75 Ohm video.

One of the four outputs is indivually buffered for driving the computer monitor. The other three outputs are driven by separate output amplifiers that include rear-panel gain and equalization trimmers that provide adjustable compensation for quality monitor cable lengths exceeding 100 m (300 ft). All switched functions are easily accessible on the front panel. Input switching is fully solid state for long-term reliable immunity from switch noise and the bandwidth limitations of mechanical switches.

The EZ-VM24E is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, stores and commercial A/V systems. Power supply included.

Features:

  • Inputs and Outputs on HD15 Female Connectors
  • Two Front-Panel Switch-Selectable Inputs
  • Wide RGB Bandwidth > 400 MHz Loaded
  • High Resolution Compatibility VGA through QXGA
  • Solid-State Switching of Video and Sync Signals
  • Reliable Full-Size Switches for Switched Functions
  • Switch-Selectable TTL or Video 75 O Input Sync
  • NORM ID BIT Connects LOCAL MONITOR and INPUT 1 ID
  • Front-Panel ID Bit Selection for Each Input
  • DC RGB Coupling, Output Polarity and Offset FollowInput
  • Rear-Panel GAIN and EQ Peaking Trimmers

Specifications:

  • Inputs (2): VGA - QXGA RGBHV or RGB with combinedsync
  • Outputs (4): LOCAL MONITOR (1, Buffered, ID bitpass-thru to INPUT 1), Monitor (3, with GAIN and EQ trim)
  • Gain: Unity (LOCAL MONITOR output), Unity to +6 dB(MONITOR output)
  • Equalization (peaking): None (LOCAL MONITOR output),Adjustable 0 to +8 dB at 100 MHz (MONITOR output)
  • Video bandwidth: > 400 MHz
  • Output offset: ±5 mV typ. (75 O load)
  • Video impedance: 75 O (Input and output)
  • Sync (HV) input: 500 O TTL or 75 O Video(Switch-selectable), 0.7 V to 5 V p-p
  • Sync (HV) output: 5V TTL
  • Sync (HV) Propogation Delay: < 4 nS typ.
  • Sync (HV) Rise Time: < 4 nS typ.
  • Sync (combined): Output follows input
  • Bit Control: Switch-selectable (individual selectorper input, pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
  • 24 Vdc power supply current: 70 mA (idle), 90 mA (max.)  Power supply included.
  • Power supply input voltage: 100 to 240 VAC
  • Warranty: 3 Years; contact RDL technical supportdepartment for assistance
  • Case dimensions: 5.75” (14.6 cm)W x 5” (12.7 cm)D
  • Mounting size: 1/3 rack width
