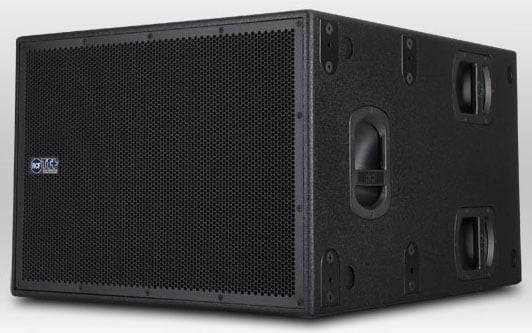

RCF TTS18-A
18" Active Subwoofer

OUR PART #  TTS18-A

Our Price: $2,959.00
List Price: $4,175.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

RCF's TS18-A is a compact, high output, bandpass subwoofer module ideal in combination with TT+ two way systems.  The TS18-A woofer features lightweight, high force, neodymium magnet assembly; 100 mm diameter, 25 mm length, inside-outside copper voice coil; silicon double spiders; water resistant treated cone; magnet assembly complex ventilation for minimum power compression.  The amplifier section features 1000 watt switching power supply, 1000 watt low frequency digital amplifier.

Features:

  • Very compact size
  • Maximum output per size available on market
  • Minimum weight
  • Wide, constant directivity, horizontal coverage angle
  • High power full neodymium 18" transducer
  • 1000 Watt switching amplifier
  • XLR in/out, Powercon in/out
  • Baltic birch cabinet

Applications:

  • Touring sound reinforcement for small and mid-sized venues
  • Portable and installed audio-visual systems
  • Theatres and night clubs
  • Stage monitor side fill reinforcement

Specifications:

ACOUSTICAL
Frequency Response -3 dB: 35 Hz ÷ 120 kHz
Max SPL: 136 dB
Woofer: 18" neo, 100 mm voice coil

INPUT/OUTPUT SECTION
Input signal: Bal/unbal
Input connectors: Stereo XLR
Output connectors: Stereo XLR
Input sensitivity: - 2 dBu / +4 dBu

PROCESSOR SECTION
Crossover frequencies: 80 Hz/110 Hz
Protections: Thermal
Limiter: Fast limiter
Controls: 80/110 add crossover phase

AMPLIFIER
Total power: Switching 1000 Watts
Low frequencies: D/1000 Watts
Cooling: Convection
Connections: Powercon in/out

CABINET
Cabinet Material: Baltic birch
Hardware: Fittings ready
Handles: 6 on side
Pole Mount/Cap: Yes
Colour: Black

PHYSICAL
Height: 520 / 20.47 mm/inch
Width: 700 / 27.55 mm/inch
Depth: 860 / 33.85 mm/inch
Net Weight: 28 / 61,73 Kg/Lbs

Protective Cover for TTS18/18ARCF COVER-TTS18 Protective Cover for TTS18/18A

Protective cover for TTS18 and TT18-A.

In Stock

Free Shipping Available

Our Price:$179.00List Price: $249.00Call for Special Sale Price!

Pole Mount Cap for TTS18, TTS18-A, TTS28, TTS28-A SubwoofersRCF AC-TT-PMA Pole Mount Cap for TTS18, TTS18-A, TTS28, TTS28-A Subwoofers

Pole mount cap for RCF TTS18, TTS18-A, TTS28 and TTS28-A subwoofers.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$39.00List Price: $69.00You save 43%!
