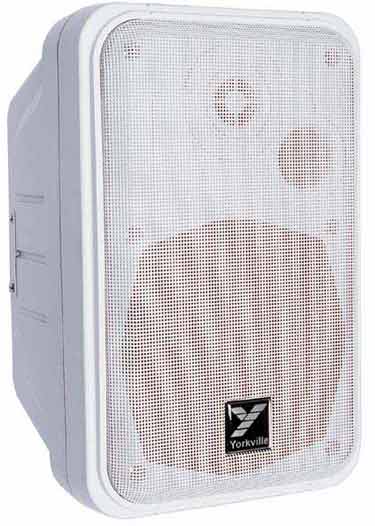

Yorkville C120W/70
100W 70V Speaker with 5" Tweeter in White

OUR PART #  C120W/70

Our Price: $99.99
List Price: $134.99
You save 26%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Yorkville Coliseum C120 is a high-end, water resistant speaker featuring specially treated drivers and a sculpted ABS plastic enclosure. This compact speaker is ideally suited for many applications: commercial installations, home theatre, home stereo, mobile applications, reference monitor, personal stage monitor and can even be used outdoors.

The C120 is a bass reflex enclosure with a tuned port and a 5" woofer, which provides improved bass performance over conventional 5" woofer enclosures. Removing the press-fit grille gives access to the eyeball tweeter, which can be swiveled to suit various listening positions. The C120 will handle 100 Watts of continuous music and is accurate from 75 Hz to over 19 kHz.

The C120 is designed to allow a multitude of mounting options including a 'press-fit' microphone stand mount, integral key hole screw-slots or the provided metal U-bracket which allows it to be angled up, down or sideways depending on the mounting orientation. The optional swivel mount (C120MOUNT) allows the C120 to be dropped through a ceiling or suspended from a wall in any number of angles and includes a safety wire for peace of mind. For maximum convenience in live or mobile applications, the back plate features push terminals and dual 1/4" inputs. The C120 is available in a low-reflectance black (C120) or white (C120W) finish with a matching, perforated metal grille and can be painted to match its surroundings.

The integrated 70V matching transformer allows multiple C120's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (6W, 12.5W, 25W or bypass) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets.

Yorkville C120W/70 Features:

  • 100 watt professional quality cabinet
  • 70V
  • Attractive and discrete white paintable finish
  • Custom installation hardware available

Yorkville C120W/70 Specifications:

  • System Type 2-way
  • Active or Passive Passive
  • Program Power (Watts) 100
  • Nominal Impedance (Ohms) 8
  • Sensitivity (dB @1Watt/1m) 94
  • Max SPL (dB) 104
  • Frequency Response (Hz +/- 3db) 75 - 19,000
  • Driver Configuration Tweeter, 5 inch
  • HF Driver(s) Aimable Mylar Tweeter
  • HF Dispersion (°H x °V) 90 x 90
  • LF Driver(s) 5 inch
  • Inputs 3
  • Inputs - 1/4" Jacks 2
  • Inputs - Screw Terminal 1 (Push Terminal)
  • Flying Hardware U-Bracket, 2 Rear Key Hole Mounts, Mic Stand Mount
  • Optional Flying Hardware Swivel Mount (C120MOUNT)
  • Enclosure Materials Injection Molded, ABS Plastic
  • Port(s) 1
  • Grille Perforated Steel
  • Covering / Finish Low Reflective Black (C120)
  • Optional Covering / Finishes Low Reflective White (C120W)
  • Dimensions (DWH xbackW, inches) 6.5 x 6.75 x 10.25 x 6
  • Dimensions (DWH xbackW, cm) 16.5 x 17 x 26 x 16
  • Weight (lbs/kg) 4.7 / 2.1

* Specifications subject to change without notice

Click to download

Yorkville C120W/70
100W 70V Speaker with 5" Tweeter in White

OUR PART #  C120W/70

Product Information:

The Yorkville Coliseum C120 is a high-end, water resistant speaker featuring specially treated drivers and a sculpted ABS plastic enclosure. This compact speaker is ideally suited for many applications: commercial installations, home theatre, home stereo, mobile applications, reference monitor, personal stage monitor and can even be used outdoors.

The C120 is a bass reflex enclosure with a tuned port and a 5" woofer, which provides improved bass performance over conventional 5" woofer enclosures. Removing the press-fit grille gives access to the eyeball tweeter, which can be swiveled to suit various listening positions. The C120 will handle 100 Watts of continuous music and is accurate from 75 Hz to over 19 kHz.

The C120 is designed to allow a multitude of mounting options including a 'press-fit' microphone stand mount, integral key hole screw-slots or the provided metal U-bracket which allows it to be angled up, down or sideways depending on the mounting orientation. The optional swivel mount (C120MOUNT) allows the C120 to be dropped through a ceiling or suspended from a wall in any number of angles and includes a safety wire for peace of mind. For maximum convenience in live or mobile applications, the back plate features push terminals and dual 1/4" inputs. The C120 is available in a low-reflectance black (C120) or white (C120W) finish with a matching, perforated metal grille and can be painted to match its surroundings.

The integrated 70V matching transformer allows multiple C120's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (6W, 12.5W, 25W or bypass) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets.

Yorkville C120W/70 Features:

  • 100 watt professional quality cabinet
  • 70V
  • Attractive and discrete white paintable finish
  • Custom installation hardware available

Yorkville C120W/70 Specifications:

  • System Type 2-way
  • Active or Passive Passive
  • Program Power (Watts) 100
  • Nominal Impedance (Ohms) 8
  • Sensitivity (dB @1Watt/1m) 94
  • Max SPL (dB) 104
  • Frequency Response (Hz +/- 3db) 75 - 19,000
  • Driver Configuration Tweeter, 5 inch
  • HF Driver(s) Aimable Mylar Tweeter
  • HF Dispersion (°H x °V) 90 x 90
  • LF Driver(s) 5 inch
  • Inputs 3
  • Inputs - 1/4" Jacks 2
  • Inputs - Screw Terminal 1 (Push Terminal)
  • Flying Hardware U-Bracket, 2 Rear Key Hole Mounts, Mic Stand Mount
  • Optional Flying Hardware Swivel Mount (C120MOUNT)
  • Enclosure Materials Injection Molded, ABS Plastic
  • Port(s) 1
  • Grille Perforated Steel
  • Covering / Finish Low Reflective Black (C120)
  • Optional Covering / Finishes Low Reflective White (C120W)
  • Dimensions (DWH xbackW, inches) 6.5 x 6.75 x 10.25 x 6
  • Dimensions (DWH xbackW, cm) 16.5 x 17 x 26 x 16
  • Weight (lbs/kg) 4.7 / 2.1

* Specifications subject to change without notice

Click to download
