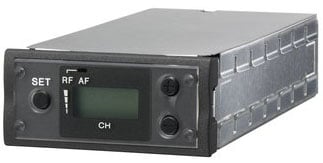

Sony URX-M2/4244
Tuner Module Only

OUR PART #  URX-M2/4244

Our Price: $364.74
List Price: $514.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The UWP series compact plug-in tuner module provides space diversity reception with stable RF reception. The URX-M2/4244 operates on UHF TV channels 42,42,44 and 45. This UWP series plug-in tuner module can be used with the Sony MB-X6 tuner base unit, the SRP-X700P powered mixer, or the SRP-X500P powered mixer.

Features:

  • Space diversity reception provides stable RF reception
  • RF squelch function virtually eliminates ambient noise and unwanted signals from other wireless mic systems
  • LCD screen provides extensive setup information
  • LED Indicates proper RF reception

Specifications:

  • Oscillator: Crystal-controlled PLL synthesizer
  • Weight: 5.3 oz
  • Power Requirements: DC 9.0V
  • Dimensions: 2 1/2 x 11/16 x 4 7/8 inches
  • Receiving frequencies: 638 MHz to 662 MHz (TV channels 42,42,44,45), users may choose from 188 frequencies
  • S/N Ratio: 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
  • Antenna: 1/4 wave length wire
  • Pilot tone signal: 32 kHz
  • Frequency Range: 638 MHz to 662 MHz (TV channels 42,42,44,45), users may choose from 188 frequencies
  • RF squelch level: 25 dBu
  • De-emphasis: 50 us
  • Frequency Response: 50 Hz to 18 kHz
  • De-emphasis: 50 us
  • Reference deviation: +/-5 kHz (at 1 kHz modulation)
  • Signal-to-noise ratio: 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
  • Local Oscillators: Crystal-controlled PLL synthesizer
  • LCD Indicator: LCD: Operating channel number/frequency, audio-output status, RF-input level LED: RF-input status
  • RF Squelch: 25 dBu
  • LED Indicator: RF-input status
  • Tone Signal: 32 kHz
  • Dimensions (W x H x D): 2 1/2 x 1 1/16 x 4 7/8 inches
  • Type of Reception: F3E
  • Mass: 5.3 oz

Sony URX-M2/4244
Tuner Module Only

OUR PART #  URX-M2/4244

Product Information:

The UWP series compact plug-in tuner module provides space diversity reception with stable RF reception. The URX-M2/4244 operates on UHF TV channels 42,42,44 and 45. This UWP series plug-in tuner module can be used with the Sony MB-X6 tuner base unit, the SRP-X700P powered mixer, or the SRP-X500P powered mixer.

Features:

  • Space diversity reception provides stable RF reception
  • RF squelch function virtually eliminates ambient noise and unwanted signals from other wireless mic systems
  • LCD screen provides extensive setup information
  • LED Indicates proper RF reception

Specifications:

  • Oscillator: Crystal-controlled PLL synthesizer
  • Weight: 5.3 oz
  • Power Requirements: DC 9.0V
  • Dimensions: 2 1/2 x 11/16 x 4 7/8 inches
  • Receiving frequencies: 638 MHz to 662 MHz (TV channels 42,42,44,45), users may choose from 188 frequencies
  • S/N Ratio: 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
  • Antenna: 1/4 wave length wire
  • Pilot tone signal: 32 kHz
  • Frequency Range: 638 MHz to 662 MHz (TV channels 42,42,44,45), users may choose from 188 frequencies
  • RF squelch level: 25 dBu
  • De-emphasis: 50 us
  • Frequency Response: 50 Hz to 18 kHz
  • De-emphasis: 50 us
  • Reference deviation: +/-5 kHz (at 1 kHz modulation)
  • Signal-to-noise ratio: 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
  • Local Oscillators: Crystal-controlled PLL synthesizer
  • LCD Indicator: LCD: Operating channel number/frequency, audio-output status, RF-input level LED: RF-input status
  • RF Squelch: 25 dBu
  • LED Indicator: RF-input status
  • Tone Signal: 32 kHz
  • Dimensions (W x H x D): 2 1/2 x 1 1/16 x 4 7/8 inches
  • Type of Reception: F3E
  • Mass: 5.3 oz
