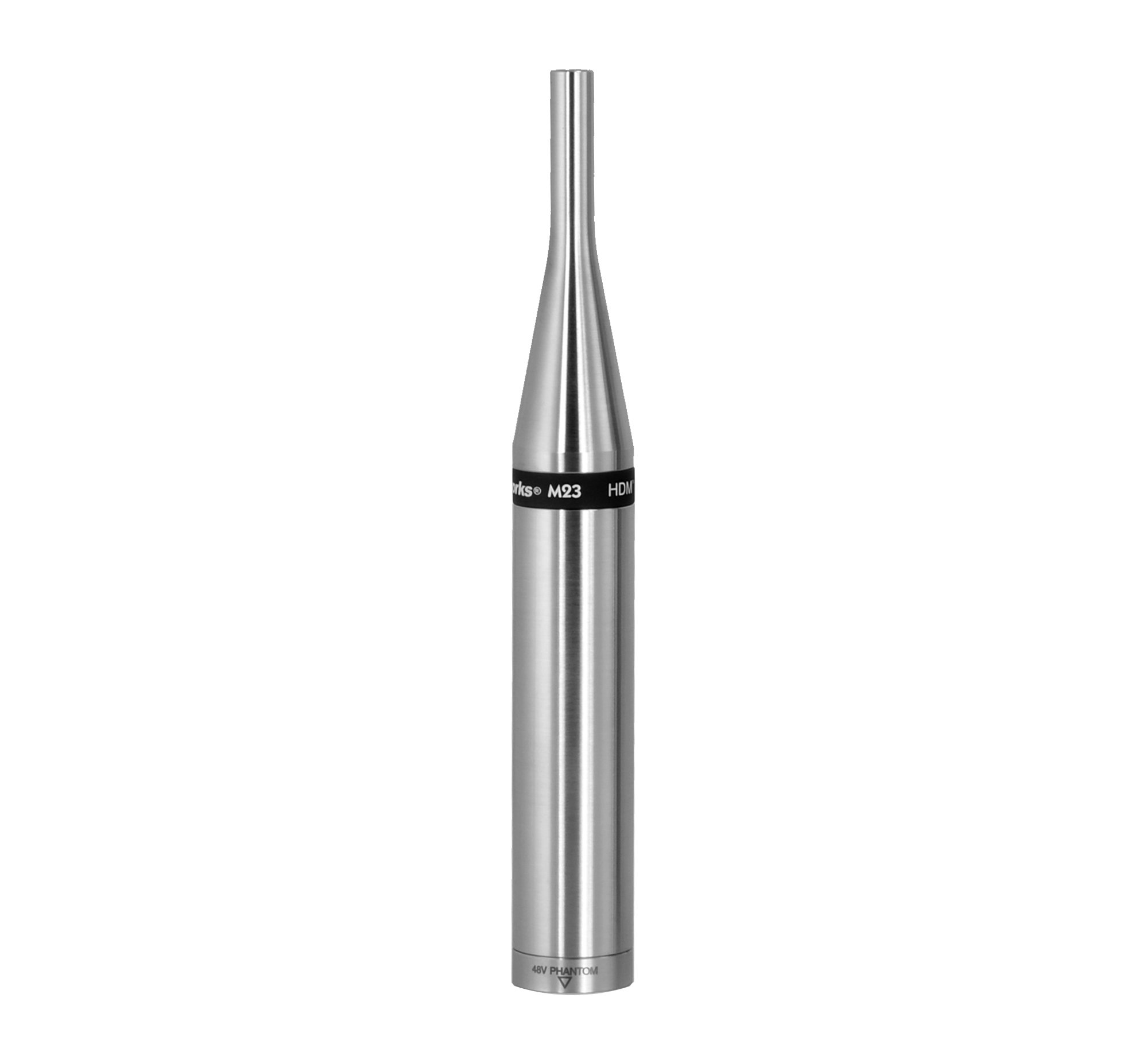

Earthworks M23
High Definition Measurement Microphone

OUR PART #:  M23

The M23 is a high definition measurement microphone.
Learn More
Our Price: $499.00
List Price: $624.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Earthworks M23
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The M23 is a high definition measurement microphone.

The M Series has become the accepted standard for affordable, reliable reference and measurement microphones that are accurate in the time domain and frequency response. They are remarkably stable with respect to temperature and atmospheric conditions and are optimized for clean, very fast impulse performance providing accurate wideband response with virtually no handling noise.

Features:

  • Cost effective measurement microphone
  • Improved version of the SMAARTMIC™ previously offered by EAW
  • Ideally suited for acoustical measurements sound system setup andtroubleshooting, room acoustics, or any application where an accuratefree-field measurement microphone is required
  • Omnidirectional polar pattern
  • Flat frequency response, fast impulse response and exceptional polarcharacteristics
  • Used by SMAART™, MLSSA™, Spectrafoo™, TEF™ and RTA in addition to acousticmeasurement systems manufactured by dbx, DEQX and others
  • Meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements
  • Requires 48V Phantom Power
  • Each M Series microphone is delivered with its own calibration chartproviding its individually measured open-circuit sensitivity and the frequencyresponse curve

Specifications:

  • Frequency Response: 9Hz to 23kHz ±1/-3dB
  • Polar Pattern: Omnidirectional
  • Sensitivity: 30mV/Pa (-30.5dBV/Pa)
  • Power Requirements: 48V Phantom, 10mA
  • Max Acoustic Input: 142dB SPL
  • Output: XLR (pin 2+)
  • Output Impedance: 100 Ohms, balanced (50 Ohms ea. pin 2 & 3)
  • Min Output Load: 600 Ohms between pins 2 & 3
  • Noise: 22dB SPL equivalent (A weighted)
  • Dimensions L x D: 165mm x 22mm (6.5 x .860 inches)
  • Weight: .35 lb. (160g)
