OUR PART # JAVISTAM1/128

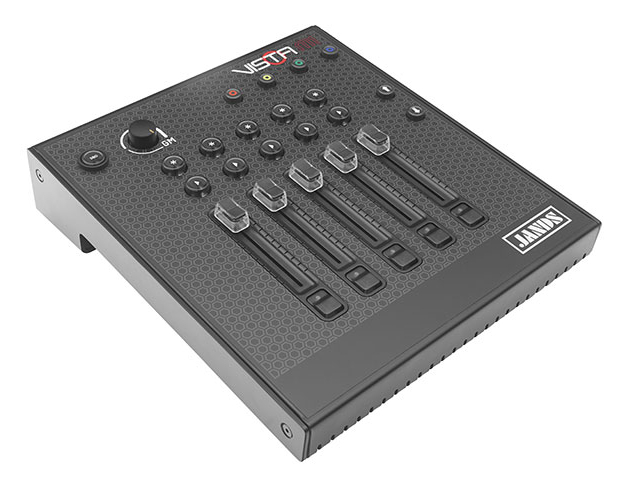

The Vista M1 is an ultra-compact and extremely cost-effective playback-only Vista control surface. The M1 is ideal for situations where you can do your programming in advance on your PC, but you still want hardware to control the playback of your show.
Designed to be used with a laptop, the M1 gives you all the playback benefits of a Vista show in a compact and portable package that‘s perfect for trade show booths, hotels, clubs or any venue where space is tight.
With five playbacks, including faders and flash buttons, plus a rotary master fader, the M1 is a complete and portable Vista playback module. When you want to travel light but you don‘t want to compromise your show, the M1 is the ideal live playback solution.
Blue, Green, Yellow, Red modifier buttons
Grand Master (rotary) fader and DBO button
5 Playbacks with faders and flash buttons
Playbacks feature; Select and Go buttons
Split mode allows control of up to 15 Cuelists
Playbacks can be configured for control of Groups, Presets and more
Page Up / Down buttons
DMX output channels determined by dongle – in this case 128 channels
Input and Output Connections
2 DMX outputs
Windows 7, Vista or XP Professional with Service Pack 3, either?32 or 64bit edition.
Mac OSX 10.6 Snow Leopard or 10.7 Lion *Hardware must support the 64-bit kernel
Intel? processor i3 (i5 or better recommended)
2GB of RAM (4GB recommended)
4GB of available hard disk space
