Kramer WP-110
XGA to Twisted Pair Transmitter Wall Plate

OUR PART #:  WP-110

Kramer's WP-110 is a twisted pair transmitter for computer graphic video signals with resolutions ranging from VGA through UXGA and higher.
Learn More
Selected Model Price: $196.00
List Price: $245.00
Save up to 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer WP-110
Select a Model: (shipping times are approximate)
Qty:

Similar Products

Kramer's WP-110 is a twisted pair transmitter for computer graphic video signals with resolutions ranging from VGA through UXGA and higher. It converts a computer graphics video signal into a twisted pair signal which will be converted back into a computer graphic signal when used in conjunction with the TP-120 twisted pair receiver (or other compatible Kramer receiver).

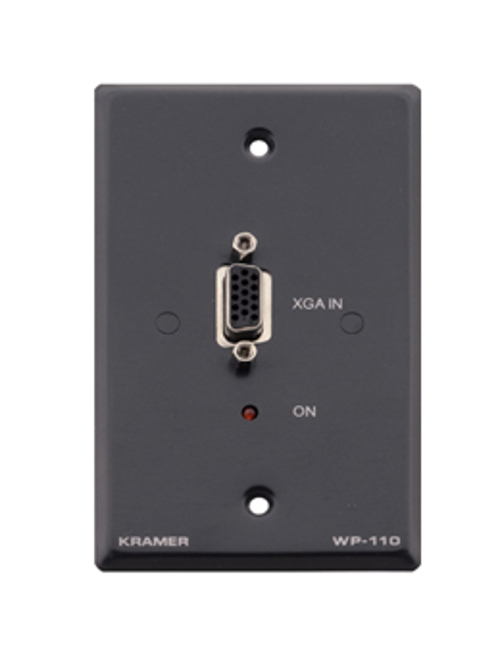

NOTE: No longer available in white. Available only in gray (shown above).

Kramer WP-110 Features:

  • Resolution - Up to UXGA
  • HDTV Compatible
  • Power Connect™ System - Only one unit in a system, the transmitter or the receiver needs to be connected to a power source. All the system units musthave the Power Connect system to use this feature.
  • Advanced Sync Processing - Ensures compatibility with a wide range ofcomputers.
  • Front Panel Connections - 15-pin HD input
  • Rear Panel Connections - RJ-45 output
  • Selectable Sync Input Impedance - 75 ohm (analog) or 510 ohm(TTL)
  • System Range - Up to 100 meters (320 ft.)
  • Cable - UTP (unshielded twisted pair) such as CAT 5.
  • Wall Plate - Single gang

Kramer WP-110 Specifications:

  • Inputs: 1 VGA / UXGA on an HD15 connector
  • Outputs: 1 RJ 45 LINE OUT connector
  • Bandwidth(-3dB) : >150MHz, Fully Loaded
  • Diff. Gain: 2.9% (worst case)
  • Diff. Phase: 0.3° (worst case)
  • K-Factor: <0.05%
  • S/N Ratio: 69dB (worst case)
  • Coupling: AC
  • Power Source: 12 VDC 60mA
  • Dimensions (WxDxH): 2.72" x 1.5" x 4.5" (6.9 x 3.8 x 11.4 cm)
  • Weight: 0.31 lbs. approx. (0.14 kg)
  • Accessories: Power supply
