Premier Mounts PBL-UMW
Universal Projector Mount in White


Our Price: $132.30
List Price: $189.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

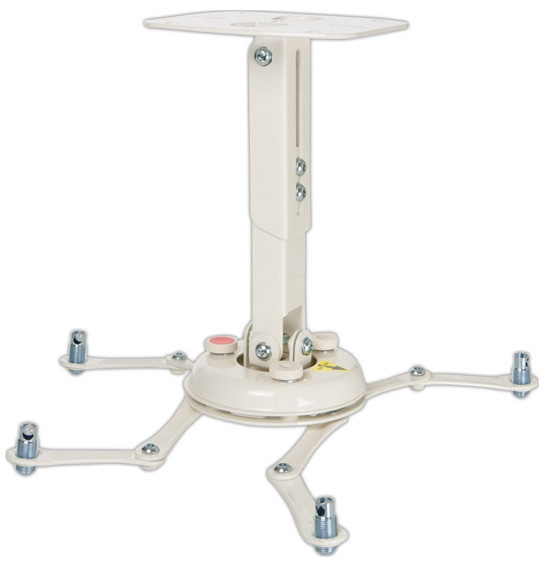

Premier Mounts' PBL-UMW Universal Projector Mount is an adjustable-height universal projector mount that fits most projectors weighing up to 40 lb. (18 kg). The PBL-UMW offers flexible projector positioning, including the ability to mount projectors such as the Sony VPL-FH31 in portrait mode, with four patented dual-joint support arms (US Patent number 7,942,375) that can reach almost any mounting point. It features an adjustable height extension channel and a versatile ceiling plate that can mount to traditional or vaulted ceilings. The quick release connector allows the projector to be installed quickly and then easily released for maintenance, without re-alignment.

Premier Mounts PBL-UMW Features:

  • Four dual-joint support arms with Lock-It™ security leveling barrels for greater protection
  • Flexible design allows both low-profile and extended height installations
  • Can be mounted vertically or horizontally to walls, vaulted or traditional ceilings
  • Mounting plate installs on a single stud or a false ceiling adapter
  • Adjustable height channel extends from 9.8" - 13.3"

Premier Mounts PBL-UMW Specifications:

  • Weight: 7.52 lbs (3.4 kg)
  • Weight Capacity per Mount: 40 lbs (18.2 kg)
  • Number of Mounts: 0
  • Height: 13.45" (342 mm)
  • Mounting Reach: 18.95" (481 mm)
  • Extension: 13.30" (338 mm)
  • Pitch: +20.00° / -20.00°
  • Roll: +20.00° / -20.00°
  • Yaw: +360.00°
  • Dimensions: 7.25" W x 5" H x 14.75" D (184 mm x 127 mm x 375 mm)
