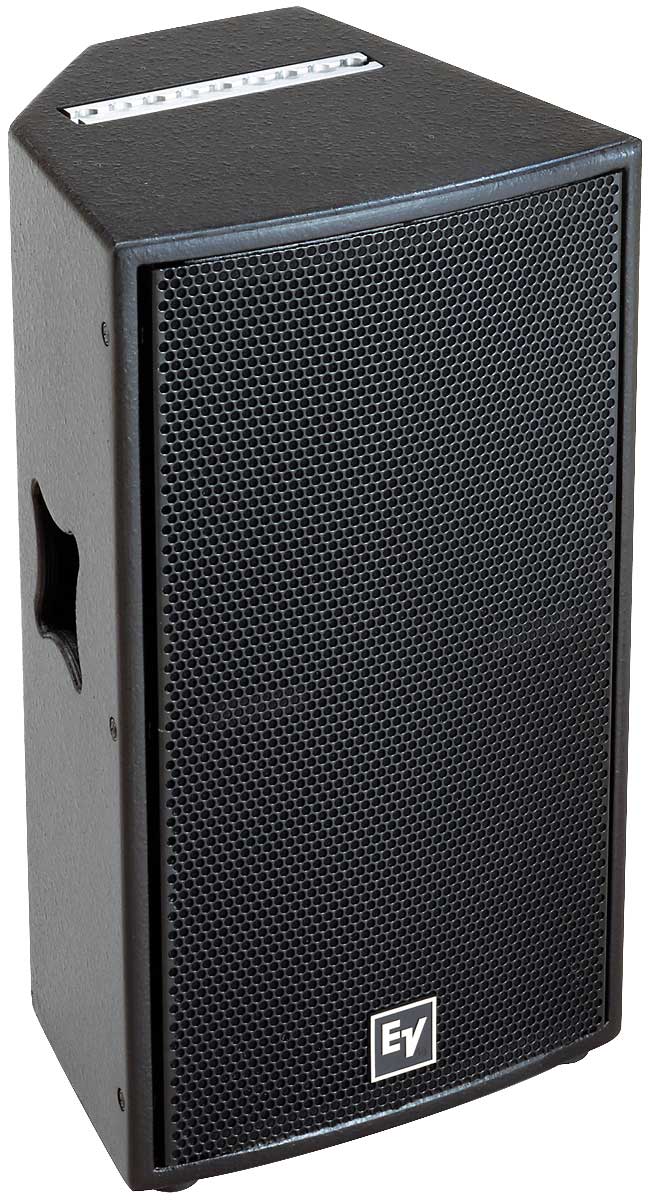

Electro-Voice QRX-112/75-WHITE
Loudspeaker, 12" Two-Way, 300W Continuous, 1,200W Peak, White (Black shown)

OUR PART #:  QRX-112/75-WHITE

The QRx 112/75 is a 12"...
Learn More
Our Price: $1,749.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice QRX-112/75-WHITE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The QRx 112/75 is a 12", two-way full-range loudspeaker system that incorporates a 12" woofer and a 3" voice coil compression driver on an asymmetrical 75-degree x 50-degree fully rotatable constant-directivity horn. In factory-delivered position the horn provides a 15-degree up/35-degree down vertical coverage pattern. The five-sided cabinet design allows this main PA system cabinet to easily conform to duties as a floor monitor or to be tucked tightly against a ceiling for low-profile applications. The fully rotatable horn means that regardless of cabinet position, pattern control is fully user-determined.

The QRx-112/75 is a good solution for small-to-medium size rooms as a main PA, providing optimized midrange reproduction for speech intelligibility and vocal clarity at moderate levels. As a floor monitor, the tight and clear midrange coupled to a large format HF diaphragm helps cut through stage rumble while delivering smooth reproduction. The asymmetrical horn can allow a single box to more adequately direct the high frequencies as needed, as well as streamline multi-cabinet arrays by extending horizontal coverage while minimizing overlapping and allowing tighter packs between the cabinets.

The system is shipped with four Ancra, single-stud fittings. The QRx 112/75 features an enclosure of 13-ply, void-free, grain-oriented plywood and is finished in Futura, a baked-on, polyurethane finish that is rugged and durable. It is available in black or white.

Features

  • Can be easily biamped
  • DH7 3" voice-coil compression driver delivers beautifully detailed sound
  • Asymmetrical, 75 degree x 50 degree, fully rotatable, Constant Directivity horn
  • In the factory-delivered position, the horn provides a 15 degree up and 35 degree down vertical coverage pattern
  • A fully rotatable horn to ensure that pattern control is fully user-determined
  • Five-sided cabinet design - allows for use as a floor monitor, front-of-house system, or to be tucked against a ceiling for low-profile applications
  • Built-in, L-track rigging on top and bottom ofenclosure and single-stud pull-up point on the back
  • Ring-Mode Decoupling for pure, accurate vocals and rich reproduction of instruments

Specifications

  • Frequency Response (-3dB): 75-18000 Hz
  • Frequency Response (-10dB): 52-18000 Hz
  • Sensitivity 1W/1m: 98 dB
  • Max. SPL/1m (calc): 131 dB
  • Coverage (nominal -6dB) H: 75 deg.
  • Coverage (nominal -6dB) V: 50 deg.
  • Rotatable Horn: Yes
  • System Power Handling (continuous/program/peak):300/600/1200 Watts
  • Low Frequency Power Handling(continuous/program/peak): 300/600/1200 Watts
  • High Frequency Power Handling(continuous/program/peak): 75/150/300 Watts
  • LF Transducer: DL12BFH
  • HF Transducer: DH-7
  • Nominal Impedance (Passive): 8 ohms
  • LF Nominal Impedance: 8 ohms
  • HF Nominal Impedance: 8 ohms
  • Color: Black
  • Flying: Yes
  • Input Connections: Parallel Neutrik NL4
  • Outdoor: No
  • Chassis Size: 12"
  • Internal Crossover: Selectable
  • Speaker Type: Fullrange, Mid-High, Two-Way, Wedges
  • Weight, Net: 57.32 lbs
  • Dimensions (H x W x D): 26.57" x 15.35" x 14.65"
