AJA Video Systems Inc RH10UC
HD Up-Converter SDI To HD-SDI, Card

OUR PART #:  RH10UC

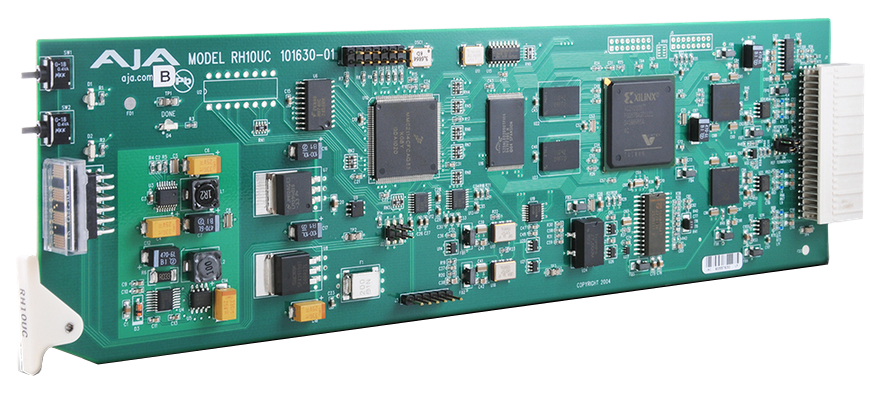

The AJA RH10UC is a 10-bit SD to HD up-converter.
Learn More
Our Price: $1,595.00
Write the first review.
AJA Video Systems Inc RH10UC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AJA RH10UC is a 10-bit SD to HD up-converter. Using motion-adaptive de-interlacing and high quality digital scalers, the RH10UC provides excellent Broadcast quality HD video from SD sources. Output HD video is selectable between 720p and 1080I formats. 4:3 to 16:9 aspect ratio conversion is selectable between 4:3 pillarbox, 14:9 crop, 16:9 morphic, and 16:9 zoom. Input SD ITU Rec. 601 color space is converted to ITU Rec. 709. The RH10UC passes 8 channel embedded audio with a compensating delay. Additionally, the RH10UC can operate as a stand-alone HD Frame Synchronizer. The RH10UC is compatible with AJA's FR1 or FR2 frames.

AJA Video Systems Inc. RH10UC Features:

  • Broadcast-Quality 10-bit SD to HD Up-converter
  • Motion-adaptive de-interlacing
  • Frame Synchronizer function with Genlock input
  • Selectable aspect ratio conversion
  • Selectable HD output format
  • HD-SDI stand-alone Frame synchronizer mode

AJA Video Systems Inc. RH10UC Specifications:

  • Input Formats: 525 / 59.94, 625 / 50, SMPTE 259M
  • Output Formats: 1080i 50 / 59.94, 720p 59.94 Hz(50 Hz output requires 50 Hz input)
  • Up-conversion: Motion adaptive, Multi-point interpolation, 10-bit processing
  • Inputs: SDI, BNC
  • Reference: 2 x BNC, looping
  • Outputs:
    • Input Loop, 2 x BNC, Equalized
    • HD-SDI, 4x BNC
  • User Controls: Mode: Up-convert, Frame Synchronizer, Output Format, Aspect Ration Convert Select, and Output Timing
  • Size: Fits AJA R-Series Frames
  • Power: 6 watts
