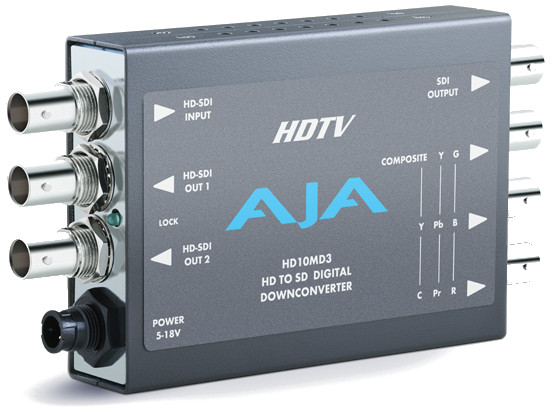

AJA Video Systems Inc HD10MD3
HD-SDI to SDI Down-Converter with Power Supply

OUR PART #:  HD10MD3

The AJA HD10MD3 miniature digital down-converter converts HD-SDI video to standard-definition SDI and analog component/composite video.
Learn More
Our Price: $995.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HD10MD3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA HD10MD3 miniature digital down-converter converts HD-SDI video to standard-definition SDI and analog component/composite video. The HD10MD3 uses a full 10-bit data path and multi-point interpolation to produce broadcast-quality down-converted video. In addition, the HD10MD3 converts either 1080p24 or 1080p24sf to 59.94 Hz output video using the standard 3:2 pulldown technique. The output can be formatted for either 4:3 or 16:9 standard definition monitors. Four-channel input embedded HD-SDI audio is passed to the SDI output.

AJA HD10MD3 HD-SDI to SDI Down-Converter Specifications:

  • Formats:
    • 11035i/1080i/1080p24sf/1080p25sf/720p
    • 23.98/24/25/50/59.94/60 Hz Frame Rate
  • Inputs: HD-SDI/SDI dual-rate, SMPTE 292/296, BNC
  • Outputs:
    • SDI, SMPTE, 259M, BNC
    • YPbPr - SMPTE, EBU-N10, Betacam,
    • RGB, NTSC, PAL, YC (S-Video), 3x BN
  • Downconversion:
    • Multi-Point Interpolation, 10-bit Processing
    • 3:2 Conversion for 24p/psf Input
  • User Controls:
    • External Dipswitch
    • Input Video Format
    • Output Video Format
    • 4:3 Safe-Zone Graticule Overlay
    • Pedestal (Output)
    • 4:3/16:9 Monitor Selec
  • Power: +5 to 18V DC, 6.5 Watts (power supply included)
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
