Product Overview

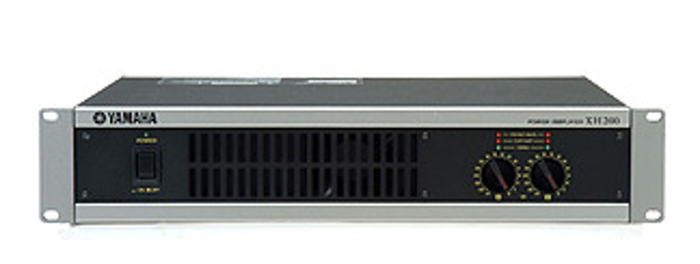

The Yamaha XH200 features a 2-channel high-impedance power amplifier (200W/24 ohms @70V, 200W/48 ohms @100V). Current switching allows for a compact and lightweight design (10 kg). This series utilizes the newly developed 2U shell. Highly precise dB display detented attenuators, dedicated to each channel, are located on the front panel. The models also features a protection circuit that allows you to monitor its status with an indicator. Attention to detail for better practicality can be found wherever you look. Equipped with XLR and Euro-block inputs and barrier strip terminal outputs. Also equipped with monitor/remote terminals and a subsonic filter. The models have been designed with all sorts of usage in mind.
Yamaha XH200 Specifications:
- Power Output Level:
- 20Hz 20kHz THD+N=0.1%; 8-Ohm 70V/channel RL= 24
- 200W x 2 4-Ohm70V/channel RL=24; 200W x 2
- 8 Ohms / BRIDGE 100V/channel RL=48; 200W x 2
- 70V/BRIDGE RL=16 Ohms 100V/channel RL=48; 200W x 2
- Sensitivity: RL=8. Att.max
- S/N Ratio: 20Hz-20kHz (DIN AUDIO)
- Idle Power Consumption: 40W
- 1/8 Power Consumption (4 Ohms): 250W
- Power Bandwidth (Half power THD+N=0.5%): 10Hz – 40kHz
- THD+N: 20Hz 20kHz, half power 0.1%
- Intermodulation Distortion 60Hz: 7kHz, 4:1, half power 0.1%
- Frequency Response (f= 20Hz-20kHz): -0.5dB, 0dB, 80Hz-20kHz
- Channel Separation: Half power RL=8 Ohms, 1kHz
- ATT. Max input: 600 Ohms shunt 60dB (24 Ohms)
- Residual Noise: 20Hz-20kHz (DIN AUDIO) –65dB
- Damping Factor: 8 Ohms, f=1kHz 100
- Voltage Gain ATT:
- Max 38dB (100V)
- 35dB(70V)
- Maximum Input Voltage: 22dB
- Input Impedance:
- 30 kOhms (Balanced)
- 15 kOhms (Unbalanced)
- Controls:
- Front panel POWER switch (push on/push off), attenuator (31-position) x 2
- Rear panel: MODE switch (70V/100V) x 1
- HPF switch (40Hz/80Hz 12dB/oct) x 1
- Connectors Input euro-block (balance)/ch
- Output Barrier strip/ch
- DATA PORT D-sub15P, Monitor: Output Level/ch, Active/ch,
- Model Detect Control: Mute/ch
- Power:
- AC inlet x 1
- Indicators POWER x 1 (Green)
- SIGNAL x 2 (Green)
- CLIP/LIMIT x 2 (Red)
- PROTECT/MUTE x 2 (Red)
- Load Protection POWER switch on/off mute, DC-fault output relay off
- Amplifier Protection thermal (heatsink temp =90°C), VI limiter (RL = 16Ohms)
- Limiter Circuit clip limiting,THD = 1.0%
- Cooling/Variable-speed fan stop: 50C variable 70C Hi
- Power Requirements: UC: 120V / 60Hz, EU: 230V / 50Hz, A: 240V / 50Hz
- Dimensions (WxHxD): 18-7/8" x 3-7/16" x 16-1/4" (480 x 88 x 412.2 mm)
- Weight: 22 lbs. (10 kg)
