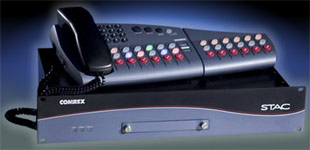

Comrex STAC-12
12-Line Studio Telephone Access Center


 What are you talking about? A call-in on local politics. An interview with the winning quarterback from hishotel. An eyewitness with late-breaking news.
Learn More
Our Price: $3,861.00
List Price: $3,900.00
Write the first review.
Comrex STAC-12
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

 What are you talking about?

  • A call-in on local politics.
  • An interview with the winning quarterback from hishotel.
  • An eyewitness with late-breaking news.
  • A dedication to the one someone loves.
  • Congratulating caller number six on winning concert tickets.

The telephone has always been essential to live broadcast. Studio Telephone Access Center (STAC) puts you in control of your talk shows, call-ins and phoners with great sound, ease of operation and scalable configuration.

STAC incorporates a pair of Comrex high-performance digital hybrids with automatic audio level control. The result is the most natural sounding telephone audio, even when conferencing multiple callers. A compact, rack-mounting mainframe houses the hybrids, the multiline controller and all telephone and audio connections.

The attractive, ergonomic control surfaces offer two operational modes, selectable with a flip of a switch:

  • Studio/Producer Mode provides both pre-air and on-aircaller management.
  • Screener Mode simplifies the task of screening and queuing callers.

Powerful call management can be quickly mastered with minimal training. A single control surface is included for basic operation. For more demanding programming, up to four control surfaces may be used.

Call screening and control are available from any networked computer, using a standard web browser, with the included STAC IP. With STAC IP, your talent can host their shows from anywhere there is an Internet connection or you can economically create more control points from any computer on your local network. No additional computer is needed to serve the STAC IP webpage, as it is served from the mainframe. Your connections are secured by password protection and no dedicated client software needs to be installed. In addition to replicating the call status information on the control surfaces, STAC IP also provides fields for additional information about callers and text “chat” among those on your show network.

Innovative features include an Auto Attendant that automatically answers incoming callers with your custom message and puts them on hold; dedicated control surface buttons to designate the next caller to be placed on air and to activate an external recorder or delay; and program-on-hold audio.

The STAC12 mainframe and control surface are configured for 12 phone lines, while the STAC6 is configured for six lines. Expanding a STAC6 to a STAC12 in the field is quickly accomplished by installing a mainframe extension card and control surface “sidecars”.

No matter what you’re talking about, you’ll be talking about quality, convenience and value when you put the Comrex STAC on the line.

Key Features:

  • Dual, high performance digital hybrids for reliable,natural sounding caller audio, even when conferencing.
  • Configurations for six and 12 phone lines. Easy toexpand in field.
  • Flipping a switch on the back of a control surface isall that is required to select Studio/Producer or Screener Mode.
  • A standard web browser can be used on any locallynetworked or Internet connected computer for call screening and control.
  • Auto Attendant for automatically answering incomingcalls with your custom outgoing message. Call is answered after two or sixrings, the message is played and, at the end of the message, the line is puton hold. If no message is recorded, lines will automatically be answered andput on hold. Function selected from control surface.
  • Two phone lines can be assigned to VIP mode, removingthem from the priority rotation and Auto Attendant. These can be reserved forplacing outgoing calls and incoming hot lines.
  • Selectable auto-disconnect of calls terminated bycaller.
  • Selectable automatic gain control for consistentlevels on-air and send audio down the line to your callers. A separatelycontrollable caller level boost may also be used.
  • Talent maintains control using selectable caller ducking that lowerscaller audio level when talent speaks.

STAC Mainframe:

  • No configuration required after initial installation.Set-up controls are behind an easy-access panel and include pots for leveladjustments and DIP switches for configuring Auto Attendant, auto-disconnect,automatic audio gain control, VIP and other settings.
  • Front panel features three bicolor LEDs indicatinglevel status of audio input and hybrid levels.
  • Telephone line connections provide loop-thru to othersystems or telephone sets sensing loop-thru provided for PBX interconnection.
  • Callers are conferenced within the STAC mainframerequiring only one mix-minus audio input to feed both hybrids.
  • A separate audio input is used for program-on-hold.
  • Each hybrid has an individual audio output to send toyour audio mixing console or router.
  • A third audio output sums the two callers with thehost audio—great for connection to a recording device.
  • Ethernet port allows the integrated web server todeliver call screening info and to control all call functions via STAC IP.
  • Software is field upgradable via compact flash port.

STAC Control Surfaces:

  • One control surface is included with purchase ofmainframe. Additional control surfaces, up to four per system, may be added atany time. STAC6 control surfaces can be upgraded to STAC12 in the field.
  • Clean, logical design allows functions to be masteredquickly. Dedicated buttons, with associated multicolor LEDs, minimize thenumber of button presses and make it easy to determine status of phone linesand callers.
  • Any control surface can operate in Studio/Producer orScreener Mode.
  • Designed to use standard Cat-5 wiring to link the control surfaces to themainframe. No proprietary cabling or additional power source required forcontrol surface connection.

Common STAC control surface functions available in both Studio/Producer and Screener Modes:

  • Auto-Attendant activation, deactivation.
  • Default Priority for next caller to be placed on airis callers on hold who have been screened, followed by callers on hold whohave not been screened, in order of length of time on hold.
  • Change Priority function overrides the defaultpriority to select and indicate the next caller to be to be placed on the air.
  • other uses. Pressed once, the Busy All button dropsall unlocked, lines and will “busy them out”. On second press, the unlocked,lines are freed up and are now available to receive calls.
  • Aux button controls logic output to turn on/offexternal recorder or delay. DIP switch configurable as momentary or latching.The Aux function on each control surface operates independently of the others.In Studio/Producer mode, this button may alternately operate as a “Next”button, seamlessly putting the next priority line on the air.
  • Jack provided for headset connection to provide alternative tohandset.
