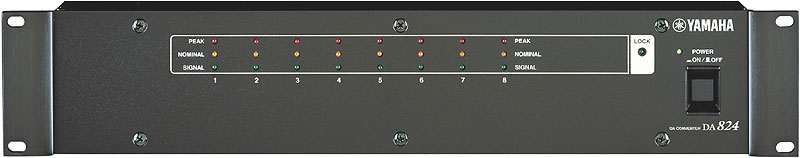

Yamaha DA824E
D/A Converter 8 channel, European Use Only

OUR PART #  DA824E

Call for price! Not available online.


The DA824E is the European version of the DA824. It is an eight-channel recording-quality D/A converter. It features a Mini-YGDAI card slot as its input so that you can use the DA824E as the back end of many digital devices, such as the DME32 or the 02R.

A connection can be made between the DA824E and another device by using any digital MY series card (AES/EBU, TASCAM, ADAT) in the DA824E to the same format on the sending device. For example, to connect the DA824E to the DME32, use an MY8-AE in the DA824 and another MY8-AE in the DME32 unit. The two units connect via an AES/EBU cable.

Using a combination of remote AD824s and DA824Es, on can place the inputs and outputs throughout a facility as needed. By "remoting" the I/O, the signal can be kept in the digital realm where long transmission lines (up to 200 meters with an AES/EBU interface) are required. This keeps the sound quality pristine by preventing possible interference from RF or other factors that degrade analog signals.

Features

  • High Quality 24-bit D/A
  • Balanced XLR and 1/4" output connectors
  • Channel-independent selectable max. output level: +4, +15, +18, +24dBm
  • Mini-YGDAI card slot (ADAT, TASCAM, AES/EBU)
  • Word clock input/thru
  • Signal, nominal and peak LED indicators
  • Wired for Eurpean power.

General Specifications

  • Sampling Rate (MY8-AE, MY8-TD): 39.69 - 50.88kHz
  • Sampling Rate (MY8-AT): 41.013 - 50.88kHz
  • DA Conversion Resolution: 24-bit linear, 128-times oversampling
  • Frequency Response: -3, +1 dB, 20Hz - 20kHz
  • Dynamic Range: 110dB (typical)
  • Gain Error: +/-1dB @ 1kHz
  • THD: 0.5%, 20Hz - 20kHz / 0.01% full scale output @ 1kHz
  • Hum & Noise Level: -92dB (typical)
  • Crosstalk: -70dB between adjacent channels @ 1kHz
  • Signal Delay: 0.57ms (digital inputs to analog output, fs = 48kHz)
  • Indicators: PEAK = 3dB below full scale, NOMINAL = 14dB below full scale, SIGNAL = 34dB below full scale, LOCK = Word clock lock, POWER = Power on/off
  • Power Requirements: USA and Canada 120VAC, 60Hz
  • Power Consumption: 40W
  • Dimensions (W x H x D): 18.9" x 3.84" x 14.44"
  • Weight: 16.53lbs
  • Free-air Operating Temperature: 50 deg. F to 95 deg. F
  • Storage Temperature: -4 deg. F to 140 deg. F
  • Power Cord Length:  6' - 2.8"

Analog Output

Connection

Gain SW

Actual Source Impedance

For Use With Nominal

Output Level Nom

Output Level Max

Connector

Outputs 1-2

+24dB

150 O Lines

600 O Lines

+10dB (2.45V)

+24dB (12.28V)

XLR-3-32 & 1/4"TRS

Outputs 3-4

+18dB

150 O Lines

600 O Lines

+4dB (1.23V)

+18dB (6.16V)

XLR-3-32 & 1/4"TRS

Outputs 5-6

+15dB

150 O Lines

600 O Lines

+1dB (0.87V)

+15dB (4.36V)

XLR-3-32 & 1/4"TRS

Outputs 7-8

+4dBV

150 O Lines

600 O Lines

-10dBV (0.316V)

+4dBV (1.58V)

XLR-3-32 & 1/4"TRS

Digital I/O

Connection

Format

Level/Impedance

Connector

COM

-

RS232C

9-pin D-sub (male)

WORD CLOCK IN

-

TTL, 75O (ON/OFF)

BNC

WORD CLOCK THROUGH

-

TTL, 75O

BNC

SLOT

Mini YGDAI

-

-



Yamaha DA824E
D/A Converter 8 channel, European Use Only

OUR PART #  DA824E

Product Information:

The DA824E is the European version of the DA824. It is an eight-channel recording-quality D/A converter. It features a Mini-YGDAI card slot as its input so that you can use the DA824E as the back end of many digital devices, such as the DME32 or the 02R.

A connection can be made between the DA824E and another device by using any digital MY series card (AES/EBU, TASCAM, ADAT) in the DA824E to the same format on the sending device. For example, to connect the DA824E to the DME32, use an MY8-AE in the DA824 and another MY8-AE in the DME32 unit. The two units connect via an AES/EBU cable.

Using a combination of remote AD824s and DA824Es, on can place the inputs and outputs throughout a facility as needed. By "remoting" the I/O, the signal can be kept in the digital realm where long transmission lines (up to 200 meters with an AES/EBU interface) are required. This keeps the sound quality pristine by preventing possible interference from RF or other factors that degrade analog signals.

Features

  • High Quality 24-bit D/A
  • Balanced XLR and 1/4" output connectors
  • Channel-independent selectable max. output level: +4, +15, +18, +24dBm
  • Mini-YGDAI card slot (ADAT, TASCAM, AES/EBU)
  • Word clock input/thru
  • Signal, nominal and peak LED indicators
  • Wired for Eurpean power.

General Specifications

  • Sampling Rate (MY8-AE, MY8-TD): 39.69 - 50.88kHz
  • Sampling Rate (MY8-AT): 41.013 - 50.88kHz
  • DA Conversion Resolution: 24-bit linear, 128-times oversampling
  • Frequency Response: -3, +1 dB, 20Hz - 20kHz
  • Dynamic Range: 110dB (typical)
  • Gain Error: +/-1dB @ 1kHz
  • THD: 0.5%, 20Hz - 20kHz / 0.01% full scale output @ 1kHz
  • Hum & Noise Level: -92dB (typical)
  • Crosstalk: -70dB between adjacent channels @ 1kHz
  • Signal Delay: 0.57ms (digital inputs to analog output, fs = 48kHz)
  • Indicators: PEAK = 3dB below full scale, NOMINAL = 14dB below full scale, SIGNAL = 34dB below full scale, LOCK = Word clock lock, POWER = Power on/off
  • Power Requirements: USA and Canada 120VAC, 60Hz
  • Power Consumption: 40W
  • Dimensions (W x H x D): 18.9" x 3.84" x 14.44"
  • Weight: 16.53lbs
  • Free-air Operating Temperature: 50 deg. F to 95 deg. F
  • Storage Temperature: -4 deg. F to 140 deg. F
  • Power Cord Length:  6' - 2.8"

Analog Output

Connection

Gain SW

Actual Source Impedance

For Use With Nominal

Output Level Nom

Output Level Max

Connector

Outputs 1-2

+24dB

150 O Lines

600 O Lines

+10dB (2.45V)

+24dB (12.28V)

XLR-3-32 & 1/4"TRS

Outputs 3-4

+18dB

150 O Lines

600 O Lines

+4dB (1.23V)

+18dB (6.16V)

XLR-3-32 & 1/4"TRS

Outputs 5-6

+15dB

150 O Lines

600 O Lines

+1dB (0.87V)

+15dB (4.36V)

XLR-3-32 & 1/4"TRS

Outputs 7-8

+4dBV

150 O Lines

600 O Lines

-10dBV (0.316V)

+4dBV (1.58V)

XLR-3-32 & 1/4"TRS

Digital I/O

Connection

Format

Level/Impedance

Connector

COM

-

RS232C

9-pin D-sub (male)

WORD CLOCK IN

-

TTL, 75O (ON/OFF)

BNC

WORD CLOCK THROUGH

-

TTL, 75O

BNC

SLOT

Mini YGDAI

-

-
