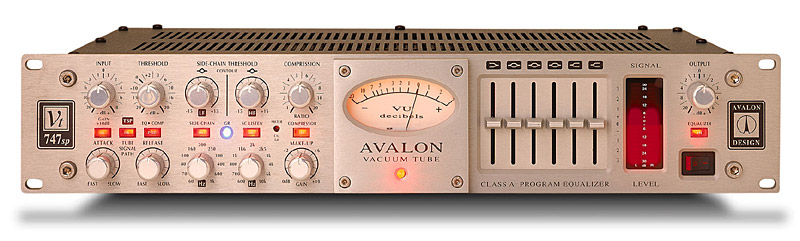

Avalon VT-747SP
Stereo Tube Compressor / Equalizer

OUR PART #:  VT747SP

The Avalon VT-747SP combines a creative STEREO tube-discrete Class A spectral-opto-compressor with a musical six band program equalizer...
Learn More
Our Price: $2,595.00
List Price: $2,900.00
You save 11%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Avalon VT-747SP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Avalon VT-747SP combines a creative STEREO tube-discrete Class A spectral-opto-compressor with a musical six band program equalizer, L-R output level and gain reduction metering and internal regulated power supplies in a 2U space. Ideal for high performance DAW input signal conditioning, stereo buss compression-EQ, stereo keyboards and analog mastering applications.

Spectral-Opto-Compression
The opto-compressor features a minimum signal path design utilizing sealed silver relays for all signal routing and by pass functions. The optical attenuator acts as a passive level controller with a Class A, variable gain make-up amplifier. Full dynamic control from soft compression to hard-knee limiting can be achieved with master threshold, ratio-compression, attack and release controls. Gain reduction indication is a large analog VU meter. Low frequency and high frequency contour parametric spectral controls can be routed into the side-chain path for enhanced frequency dependent compression with variable frequency and threshold levels. SC listen provides side-chain listen mode for monitoring.

Six Band Program Equalizer
The VT-747SP equalizer utilizes 100% discrete, Class A high-voltage transistors for optimum sonic performance. The six band STEREO program EQ incorporates the smooth characteristics of an all passive design. The frequency turnover, Q and amplitude ranges have been carefully chosen for each band to provide the most natural harmonic balance and lowest phase change while offering simple and effective tone control. The EQ can be placed pre or post the opto-compressor for enhanced effects.

TSP - Twin Signal Path
The VT-747SP features TSP which gives you the choice of either tube tone or the classic, Class A discrete transistor sound by exchanging, three (3) high-voltage dual triode tubes with discrete amplifiers in the opto-compressor and primary output stages.

Input-Output and Metering
Fully balanced DC coupled, Class A discrete amplifiers are utilized for the input and output drive interface with+36dB input headroom. A high quality analog VU meter indicates accurate gain reduction. Twin 60dB range LED meters provide fast L-R output status of all levels.

Features:

  • Stereo Class A opto-compressor with spectral control
  • Stereo Class A six band discrete passive program EQ
  • TSP twin signal path, vacuum tube bypass
  • Low noise -92dB
  • Fully balanced Class A input and DC coupled outputs
  • Stereo dynamic 60dB high resolution output meters
  • High quality analog VU meter for gain reduction
  • High headroom+36dB input before overload
  • Spectral side-chain monitor for pre listen
  • EQ pre-post selection for opto-compressor
  • Sealed silver relays for all signal routing
  • Internal discrete regulated power supplies
  • Military spec vacuum tubes for long life and low noise

Specifications:

  • Circuit topology: Three (3) dual triode vacuum tubes (Sovtek 6922), high-voltage discrete Class A mode.
  • Input gain range: Balanced, Class A, 20k ohms, -20dB to +16dB with high gain switch
  • Maximum input level: +36dB balanced XLR pin 2 hot
  • Maximum output level: +30dB balanced 600 ohms, DC coupled, discrete Class A
  • Output type: XLR connector, output trim gain -45dB to +6dB
  • Noise 20kHz unweighted: -92dB
  • Distortion THD, IMD: 0.5%
  • Frequency response -3dB: 1Hz to 200kHz
  • Gain reduction meter: High quality, illuminated gain reduction meter 0dB to -20dB range
  • Output meter: Twin 20 segment LED VU meters with -27dB to +30dB range
  • Compressor type: Optical passive attenuator
  • Make-up gain: Variable 0dB to +10dB stereo tracking
  • Threshold - Ratio: Threshold variable -30dB to +20dB, ratio-compression variable 1:1 to 20:1
  • Attack - Release: Attack variable 2mS to 200mS, release variable 100mS to 5 seconds
  • Side-chain spectral contour: Variable threshold -15dB to +15dB, frequency 70Hz to 9kHz twin ranges
  • Equalizer type: Discrete Class A, passive design optimized for full range program material
  • Frequency bands (6):
       * Variable amplitude LF +/-24dB 15Hz shelf response
       * Variable amplitude MF1 +/-8dB 125Hz selected Q response
       * Variable amplitude MF2 +/-4dB 500Hz selected Q response
       * Variable amplitude MF3 +/-4dB 2kHz selected Q response
       * Variable amplitude MF4 +/-10dB 5kHz shelf response
       * Variable amplitude HF +/-20dB 32kHz shelf response
  • AC power: Internal toroidal 100v to 240v, 50-60Hz selectable, 70 watts maximum
  • Dimensions (W x D x H): 19" x 12" x 3.5" (482 x 305 x 89 mm)
  • Weight: 22 lbs. (10 kg)
