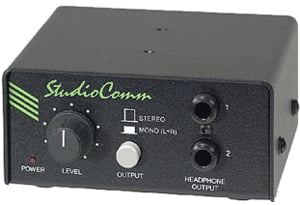

Studio Technologies MODEL-35
TALENT AMPLIFIER

OUR PART #  MODEL-35

Our Price: $168.64
List Price: $170.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Model 35 Talent Amplifier is a full-featured stereo headphone amplifier (cue) for use with the StudioComm 55/56 Stereo Monitoring System or StudioComm 74/75 Surround Monitoring System.

Model 35 modules are typically deployed in voice-over booths, studio areas, or other locations where voice or music talent needs access to a headphone cue feed. Using a standard 3-pin XLR-type audio cable, the Model 35 connects directly to, and is powered by, a StudioComm 55/56 or StudioComm 74/75 system. The Model 35 provides a stereo audio amplifier, built-in level control, stereo/mono switch, and support for one or two pairs of headphones. Up to four Model 35 Talent Amplifier modules can be used with a StudioComm 55/56 or StudioComm 74/75 system.

Specifications:

  • Power Requirements: +20-32 Vdc (modulated with left channel audio), provided by Model 55 or Model 74 Central Controller
  • Power Present LED: red, indicates presence of operating power
  • Connectors:
    Input (from Model 55 or Model 74): 3-pin XLR-type, female
    Loop Thru: 3-pin XLR-type, male, connected in parallel with input connector
    Headphone Outputs: 2, ¼ -inch, 3-conductor (stereo) phone jacks
  • Headphone Output: 1, feeds two headphone jacks
  • Load: intended for connection to one or two pairs of headphones with total impedance of 75 ohms or greater
  • Output Level: user adjustable
  • Maximum Output Voltage: 16 V peak-to-peak into 150 ohms @ 1% THD+Noise, 400 Hz
  • Distortion (THD+N): 0.03%
  • Frequency Response: 20 Hz-20 kHz ±0.5 dB
  • Dimensions (Overall):
    4.2 inches wide (10.7 cm)
    2.0 inches high (5.1 cm)
    5.3 inches deep (13.5 cm)
  • Mounting: desktop; microphone stand mounting adapter included
  • Weight: 0.8 pounds (0.4 kg)

Studio Technologies MODEL-35
TALENT AMPLIFIER

OUR PART #  MODEL-35

Product Information:

The Model 35 Talent Amplifier is a full-featured stereo headphone amplifier (cue) for use with the StudioComm 55/56 Stereo Monitoring System or StudioComm 74/75 Surround Monitoring System.

Model 35 modules are typically deployed in voice-over booths, studio areas, or other locations where voice or music talent needs access to a headphone cue feed. Using a standard 3-pin XLR-type audio cable, the Model 35 connects directly to, and is powered by, a StudioComm 55/56 or StudioComm 74/75 system. The Model 35 provides a stereo audio amplifier, built-in level control, stereo/mono switch, and support for one or two pairs of headphones. Up to four Model 35 Talent Amplifier modules can be used with a StudioComm 55/56 or StudioComm 74/75 system.

Specifications:

  • Power Requirements: +20-32 Vdc (modulated with left channel audio), provided by Model 55 or Model 74 Central Controller
  • Power Present LED: red, indicates presence of operating power
  • Connectors:
    Input (from Model 55 or Model 74): 3-pin XLR-type, female
    Loop Thru: 3-pin XLR-type, male, connected in parallel with input connector
    Headphone Outputs: 2, ¼ -inch, 3-conductor (stereo) phone jacks
  • Headphone Output: 1, feeds two headphone jacks
  • Load: intended for connection to one or two pairs of headphones with total impedance of 75 ohms or greater
  • Output Level: user adjustable
  • Maximum Output Voltage: 16 V peak-to-peak into 150 ohms @ 1% THD+Noise, 400 Hz
  • Distortion (THD+N): 0.03%
  • Frequency Response: 20 Hz-20 kHz ±0.5 dB
  • Dimensions (Overall):
    4.2 inches wide (10.7 cm)
    2.0 inches high (5.1 cm)
    5.3 inches deep (13.5 cm)
  • Mounting: desktop; microphone stand mounting adapter included
  • Weight: 0.8 pounds (0.4 kg)
