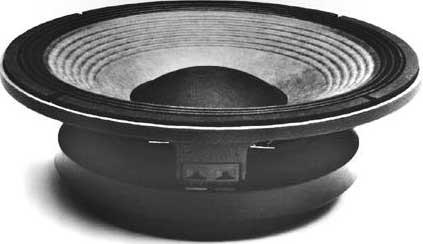

JBL 2206H
12" Low Freq. Tranducer

OUR PART #:  2206H

The 2206H/J incorporates JBL’s patented Vented Gap Cooling technology in an improved Symmetrical Field Geometry (SFG) magnetic structure.
Learn More
Our Price: $450.00
Write the first review.
JBL 2206H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The 2206H/J incorporates JBL’s patented Vented Gap Cooling technology in an improved Symmetrical Field Geometry (SFG) magnetic structure.  Vented Gap Cooling is a unique, direct voice coil-to-air heat dissipation method that increases power handling while reducing power compression.  This process pumps air through the magnetic gap and directly over and around the voice coil to provide immediate heat transfer and reduction in operating temperature.

Through the use of new computer-aided magnet optimization and analysis techniques, JBL engineers were able to optimize both magnet weight, flux density and field saturation resulting in a 1.8 kg (3.9 lb) reduction in overall driver weight and a significant reduction in harmonic distortion. This new magnet structure offers much of the weight advantage of rare earth magnet structures without their prohibitive cost.

Key Features:

  • 600 W continuous pink noise power capacity
  • 100 mm (4 in) edgewound aluminum ribbon voice coil
  • Frequency Range: 45 Hz - 3.5 kHz
  • 95 dB sensitivity, 1 W, 1 m (3.3 ft)
  • SFG magnet structure with Vented Gap Coolingtechnology

Specifications:

  • Nominal Diameter: 300 mm (12 in)
  • Rated Impedance: 8 ohms
  • Power Compression:
    at - 10 dB power (60 W): 0.6 dB
    at -3 dB power (300 W): 2.4 dB
    at full power (600 W): 3.9 dB
  • Distortions:
    2nd harmonic: < 1.0%
    3rd harmonic: <1.0%
  • Highest Recommended Crossover: 1500 Hz
  • Recommended Enclosure Volume: 28-113 1 (1-4 ft)
  • Effective Piston Diameter: 264 mm (10.4 in)
  • Maximum Excursion Before Damage (p-p): 40 mm (1.6in)
  • Minimum Impedance: 6.9 ohms ± 10% @ 25°C (H)
    12.2 ohms ±10% @ 25°C (J)
  • Voice Coil Winding Depth: 19 mm (0.75 in)
  • Magnetic Gap Depth: 8 mm (0.32 in)
  • Magnetic Assembly Weight: 6.8 kg (15 lb)
  • B1 Factor: 18.1 N/A(H)
    24.8 N/A (J)
  • Effective Moving Mass: 0.065 kg

To be the first to review this item, click here.
