Rose Brand Wahlberg Winch 10
Light Duty DMX Winch

OUR PART #:  WAHL0003

The Rose Brand Wahlberg Winch 10 is a compact cable winch that, like all Wahlberg Winches...
Learn More
Our Price: $1,549.80
List Price: $1,600.00
Write the first review.
Rose Brand Wahlberg Winch 10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

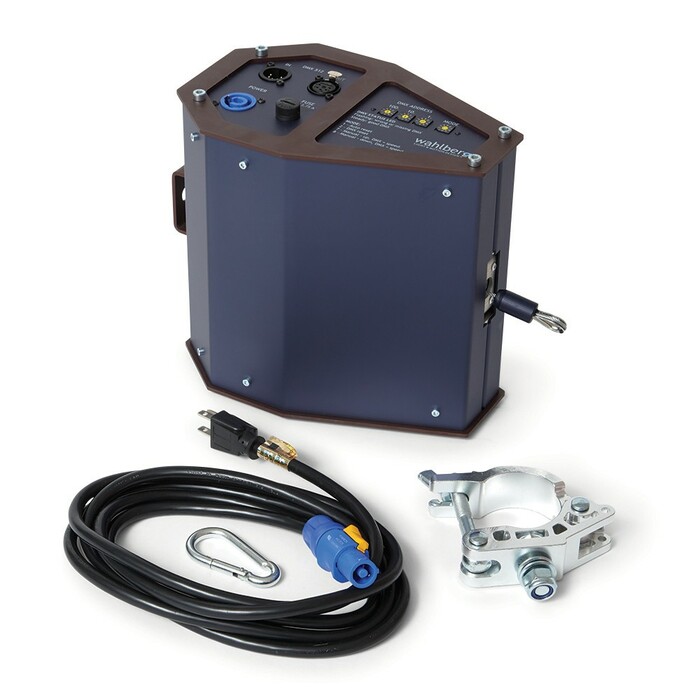

The Rose Brand Wahlberg Winch 10 is a compact cable winch that, like all Wahlberg Winches, is easily controllable via DMX from a lighting desk or stand-alone controller. Great for small fast pick-ups and synchronized operation via DMX control, this simple, affordable solution is well-suited for automating a wide variety of scenic elements including curtains, practicals, trick lines, light rigging and more.

Rose Brand Wahlberg Winch 10 Features:

  • Small form factor allows the winch to be mounted practically anywhere
  • Easily automate scenic moves without dedicated battens and rigging systems
  • Precise and repeatable positions and limits easily set via 16-bit DMX

Rose Brand Wahlberg Winch 10 Specifications:

  • Part Number: WAHL0003
  • 22 lb (10 kg) working load limit
  • 0.05" – 12"/sec. speed
  • 33 ft lifting height
  • 3/32" (2 mm) 7x7 strand aircraft cable
  • 5-pin DMX input and pass through
  • 7 Channels of DMX control
  • 16-bit DMX precision
  • 0.04" Position accuracy
  • Powercon™ input and pass thru
  • 120VAC input, 200 Watt consumption (optional 208/240VAC model)
  • Dimensions: 9.5" x 8.3" x 5.19"
  • Weight: 12 lbs
