QSC AD-S162T
Full-Range Surface-Mount Loudspeaker

OUR PART #:  AD-S162T

This product is currently available for pre-order ONLY . Placing a pre-order ensures that you will receive your unit as soon as it's available.
Learn More
Selected Model Price: $849.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

QSC AD-S162T
Select a Model: (shipping times are approximate)
Qty:

Similar Products

This product is currently available for pre-order ONLY. Placing a pre-order ensures that you will receive your unit as soon as it's available. We are currently expecting the product to begin shipping Fall 2017. This projected availability may vary depending upon manufacturer stock. Please contact your Sales Pro for more information.

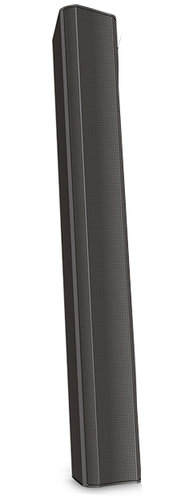

The AcousticDesign™ Series AD-S162T is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.

QSC AD-S162T Features:

  • Deliberately unobtrusive industrial design
  • Paintable enclosure and grill
  • Complete EASE, CLF, CAD & BIM information
  • Rugged aluminum construction
  • UV Inhibitors in all white models
  • IP-54 rating for dust and splash resistance
  • Powder-coated grills and weather-treated cones
  • Close to wall pan/tilt bracket included
  • Low saturation 70/100V transformers
  • 8 ohm low impedance bypass
  • Selectable broad/narrow beam contour
  • Screw-down Euro block connector with loop-through
  • Sealable input weather cup – keeps moisture away from wiring

QSC AD-S162T Specifications:

  • Effective frequency range: 200 Hz – 17K Hz
  • Power Capacity: 240 W
  • System Sensitivity:
    • 90 dB WIDE
    • 92 dB NARROW
  • Coverage Angle: 150°  (1.2K Hz - 6K Hz) WIDE
  • Horizontal  (-6dB): 150°  (2K Hz - 6K Hz)NARROW
  • Coverage Angle: 30° (900 Hz - 17K Hz) WIDE
  • Vertical (-6 dB): 15° (1.5K Hz - 17K Hz) NARROW
  • Output: 120 dB WIDE
  • (Peak SPL @ 1M): 122 dB NARROW
  • Driver Information: (x16) 2.5" weather resistant papercone woofer
  • Rated Impedance: 8 ohm
  • Input Connectors: 4-pin Euro terminal
  • Enclosure: Aluminum
  • Ingress Protection: IP-54
