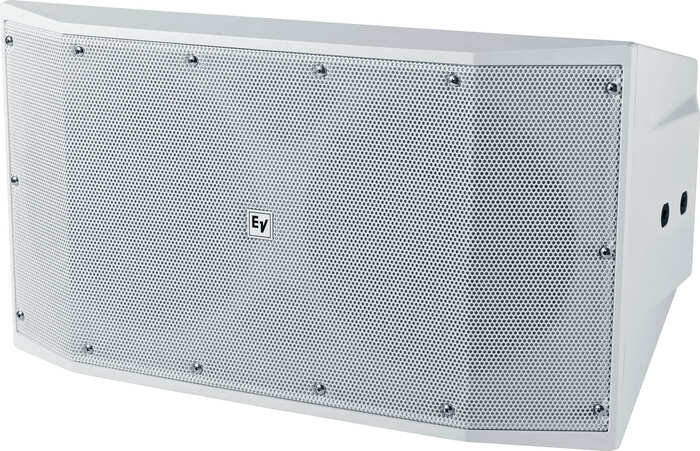

Electro-Voice EVID S10.1 2x10" Subwoofer Cabinet

The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual 10" (254 mm) woofer loudspeaker with outstanding performance for he most demanding professional and commercial sound applications. Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S10.1D is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

The EVID-S10.1D has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The subwoofer is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture. For the toughest weather conditions, the IP rating of the EVIDS10.1D can be upgraded to IP65, using the included port plug accessory.

Ease of installation, and flexible options for mounting solutions and weather resistance, the EVID-S10.1D is the perfect solution for a wide variety of surface mount applications.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.

Electro-Voice EVID-S10.1D Features:

• Two 10" high-excursion woofers
• Carefully engineered for outdoor environments (IP54 and IP65), without compromising performance
• 400 W power handling provides for 120 dB maximum SPL (126 dB peak)
• 70/100 V transformer input panel accessory available
• Crossover input panel accessory available

Electro-Voice EVID-S10.1D Specifications:

• Environmental Specs: IP-54 (per IEC-60529); IP-65 with port covers
• Frequency Response (-10 dB): 33 Hz – 500Hz
• Height: 14.02" (356mm)
• LF Transducer: Two 10" (254 mm)
• Max. SPL/1m (calc): 120dB
• Nominal Impedance:
  • Stereo Mode: (2) 8?
  • Mono Mode: (1) 4O
• Power Handling (Continuous / Peak): 400W/1600W
• Recommended High-Pass Frequency: 40Hz
• Regulatory Approvals: IP-54 (per IEC-60529); IP-65 with port covers
• Sensitivity 1 W/1 m: 94dB
• Shipping Weight: 46.3lbs (21kg)
• Transformer Taps (Transformer Version Only): Optional Accessory
• Weatherized: Yes
• Weight Net: 39.46lbs (17.9kg)
• Width: 25.63" (651mm)
