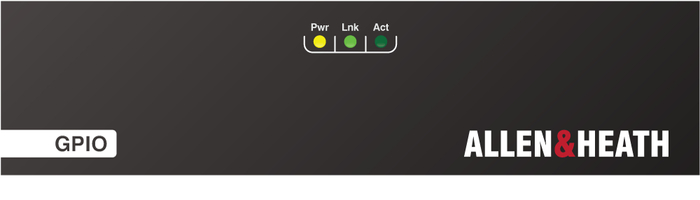

Allen & Heath GPIO
dLive GPIO interface

OUR PART #:  DLIVE-GPIO

The Allen & Heath GPIO is a general purpose I/O interface for remote control.
Learn More
Our Price: $599.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen & Heath GPIO
Qty:
In Stock

Similar Products

The Allen & Heath GPIO is a general purpose I/O interface for remote control.

GPIO is a general purpose IO switching interface for control integration of a dLive system and 3rd party hardware, offering 8 opto-isolated inputs and 8 normally open (N/O) relay outputs on Phoenix connectors in addition to 2x +10V DC outputs. The unit can be installed in a 19” rack (1u / ½ width) or can be operated freestanding, and up to 8 GPIO modules can be connected to a dLive system – directly or via a 100Mb/s network switch – using Cat5 cable. GPIO functions are programmed using a dLive Surface or dLive Director software for PC/Mac and can be configured for a number of install and broadcast applications, including EVAC (alarm / system mute), broadcast (on air lights, fader start logic) and theatre automation (curtains, lights).

Allen & Heath GPIO Features:

  • Up to 8 GPIO units can be added to a dLive system
  • Cat5 connection to dLive MixRack or Surface(<100m)
  • 8 opto-isolated inputs
  • 8 normally open (N/O) relay outputs
  • Industry standard Phoenix connectors
  • Freestanding or rack-mount (1u / ½ Width) operation
  • PoE (IEEE 802.3af-2003) compliant
  • IO parameters configured via Surface or Director
  • 2 10V outputs (500mA max)
