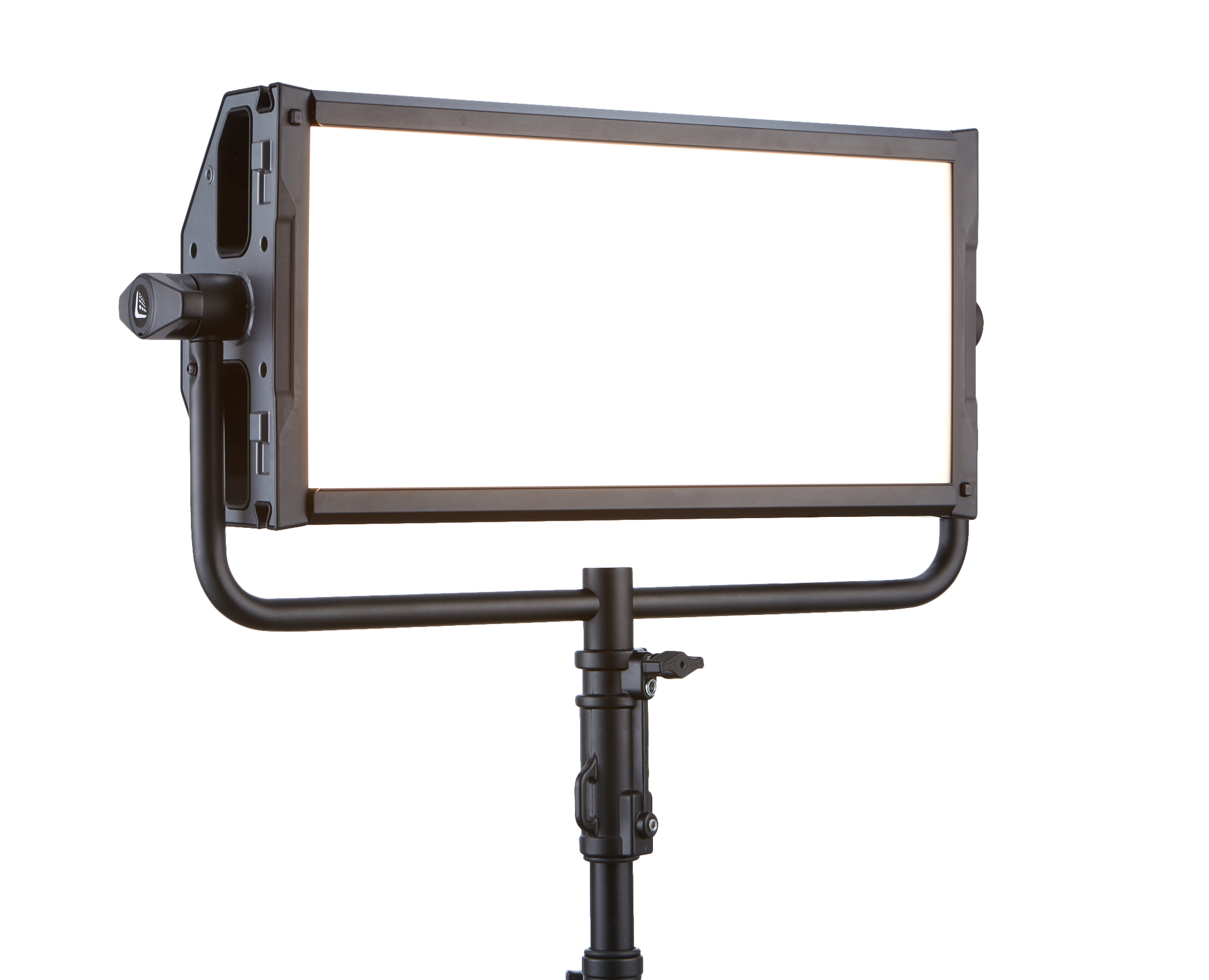

Litepanels Gemini LED Soft Panel
325W 2x1 LED Panel with Edison Connector and Pole Operated Yoke

OUR PART #:  940-1311

The Litepanels Gemini is a 2x1 LED panel and providing a nice wide soft source of color accurate illumination.
Learn More
Litepanels Gemini LED Soft Panel - Side View
Litepanels Gemini LED Soft Panel - CTO Controls
Litepanels Gemini LED Soft Panel - Power Controls

Click a thumbnail to see more images. (7 total)

Our Price: $4,654.05
List Price: $4,899.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Litepanels Gemini LED Soft Panel
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Litepanels Gemini is a 2x1 LED panel and providing a nice wide soft source of color accurate illumination. This model (SKU# 940-1311) comes with an Edison connection and a pole operated yoke.

Staying true to the Litepanels legacy, the Gemini has accurate full spectrum Daylight and Tungsten lighting. The Gemini also allows for additional quick and easy adjustment by offering full featured 3 lighting modes full color with hue and saturation control all which allow for the intensity to be controlled anywhere from 100%-0 at all times.

The Gemini is truly versatile with its manual and remote control via standard DMX 512 protocol or wirelessly with the option of wireless DMX or Bluetooth and can adapt to any lighting situation today’s Cinematographers and lighting professionals will find themselves in. The manual control knobs are sensitive to the speed of rotation and can either be finely tuned or when ramped up can adjust very quickly. With its light weight design, the Gemini allows for additional versatility with mobile power operation via 3pin XLR, making it a perfect location light.

Advantages of the Litepanels Gemini LED Soft Panel:

  • 3 lighting modes
  • CCT (Correlated Color Temperature) mode allows for Bi-Color (Daylight to Tungsten) operation with the addition of plus and minus Green offset
  • HSI Color Mode allows for full color control over Hue, Saturation and Intensity
  • Gel Mode allows for a variety of Gels to be selected from the menu
  • No heavy external ballast or restrike period
  • Flicker-free at any frame rate or shutter angle at any intensity level
  • AC/DC power with DC power via 3-pin XLR
  • Ultra-smooth dimming from 100% to 0, with no color shift
  • Integrated DMX (5-pin XLR or RJ45) allows for remote dimming and color control
  • Robust lightweight metal frame and housing
  • Pole operated yoke with Jr Pin for easy mounting and positioning
  • Incredibly energy efficient, these fixture draw only 325w nominal
  • Wireless control via optional Wireless DMX or Bluetooth
  • Master Slave mode - connect multiple lights together and control them all together from one light as the master control

Litepanels Gemini LED Soft Panel Includes:

  • Gemini Fixture with integrated power supply
  • Mounting yoke with Jr Pin
  • 3m powerCON cable

Litepanels Gemini Soft Panel Features:

  • Flexible, modular concept
  • Optional Bluetooth and wireless DMX modules allow the brightness, color and cooling mode to be remote controlled
  • Modern fixture design with integrated power supply
  • Intuitive and ergonomic controls for dimming, color and fixture set up
  • Aluminum core construction to provide maximum durability and superior thermal management
  • Barndoor/honeycomb accessory rails
  • Durable, industry standard PowerCon locking power connector with ability to daisy chain power
  • Ability to stack and gang lights together with optional hardware and yoke
  • LCD screen displays vital setting and status
  • Six defined CCT presets plus six user programmers presets
  • The Gemini allows for the user presets on Channel A which records color and intensity it also has factory presets on channel “B” with increments for 2700K to 6000K

Litepanels Gemini Soft Panel Specifications:

  • Color Temperature: Tunable Bi-Color (Tungsten-Daylight) with +/- Green offset Red Green Blue
  • Size: 25x6/5x12/5“ / 63.5 x 16.5 31.8cm
  • Weight: 22.2 lbs / 10.1 kgs
  • Power requirements: 28V DC / 100-240 VAC
  • Maximum power draw: 325W nominal
  • CRI / TLCI: 97 Daylight / 99 Tungsten
  • Control: DMX, Wireless DMX, and Bluetooth
