Product Overview

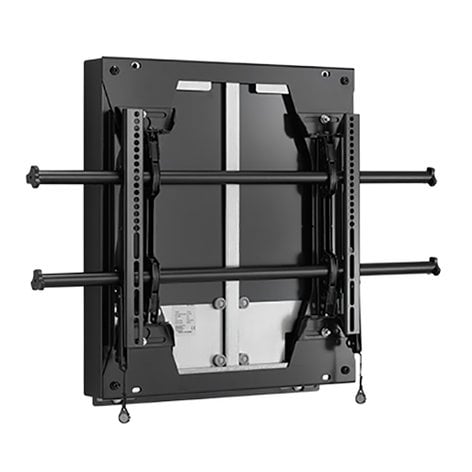

Well-suited for interactive applications, Chief's MSD1U Fusion mount with dynamic height adjust capability creates better accessibility to technology in the boardroom and the classroom. This height adjustable solution provides ultra-smooth and fast vertical travel with almost no effort. Ships fully assembled with the LSM1U mount to make this a complete aesthetic solution.
Chief Manufacturing MSD1U Medium Fusion Dynamic Height Adjustable Wall Mount Features:
- Height adjustable box allows up to 15.75" (400 mm) of vertical adjustment instantly
- ControlZone for post-installation fine-tuning of height and leveling
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Built in cable stand provides easy access under the screen
- ClickConnect offers an audible click when the screen safely engages with the mount
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Spring system tested to 60,000 cycles and 10 years of use
- Integrated security flag
Chief Manufacturing MSD1U Medium Fusion Dynamic Height Adjustable Wall Mount Specifications:
- Certifications: UL Listed
- Color: Black
- Dynamic Height Adjustment: 15.75" (400 mm)
- Lateral Shift: No
- Mounting Pattern Compatibility (Universal Versions): 200 x 200 - 800 x 400 mm
- Number of Monitors: 1
- Orientation: Landscape
- Overall Dimensions (HxWxD): 25" x 34.8" x 5.1" (635 x 884 x 130 mm)
- Wall Stud Compatibility: 16" (406 mm)
- Weight Capacity: 69 - 133 lbs (31 - 60 kg)
