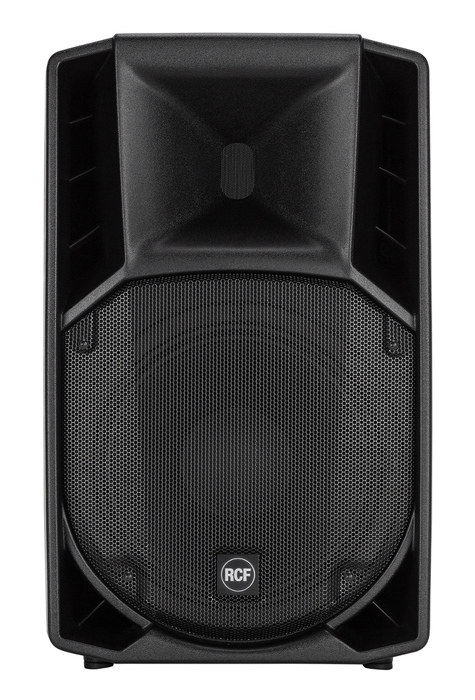

RCF ART 732A-MK4 12" Active Coaxial Loudspeaker, 1400W

The RCF ART 732-A MK4 is an active 2-way loudspeaker, 1400 W. The ART 732-A is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, phase control, soft limiting and speaker protections.

Applications:

• Live sound reinforcement
• Portable PA
• Frontfill and sidefill
• Auditorium, Clubs, Ballroom, Corporate AV, Theatre

Features:

• 131dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
• 12" Woofer
• 700Hz crossover point for perfect vocal reproduction
• 90° x 60°, wide dispersion constant directivity horn
• FiRPHASE Technology

Specifications:

• Acoustical
  • Frequency Response (@ -3 dB): 50Hz - 20000Hz
  • Max SPL: 131dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 60°
  • Compression Driver: 1.4", 3.0" v.c.
  • Woofer: 12", 2.5" v.c.
• Input/Output Section
  • Input signal: Bal/unbal
  • Output connectors: XLR
    • Input sensitivity: -2dBu / +4dBu
  • Input connectors: XLR, Jack
• Processor Section
  • Crossover frequencies: 700Hz
  • Protections: Thermal, rms
  • Limiter: Soft limiter
  • Controls: Volume, EQ shape
• Physical
  • Dimensions (HxWxD): 25.07" x 15.11" x 14.29" (637 x 384 x 363mm)
  • Net Weight: 39.24lbs (17.8kg)
