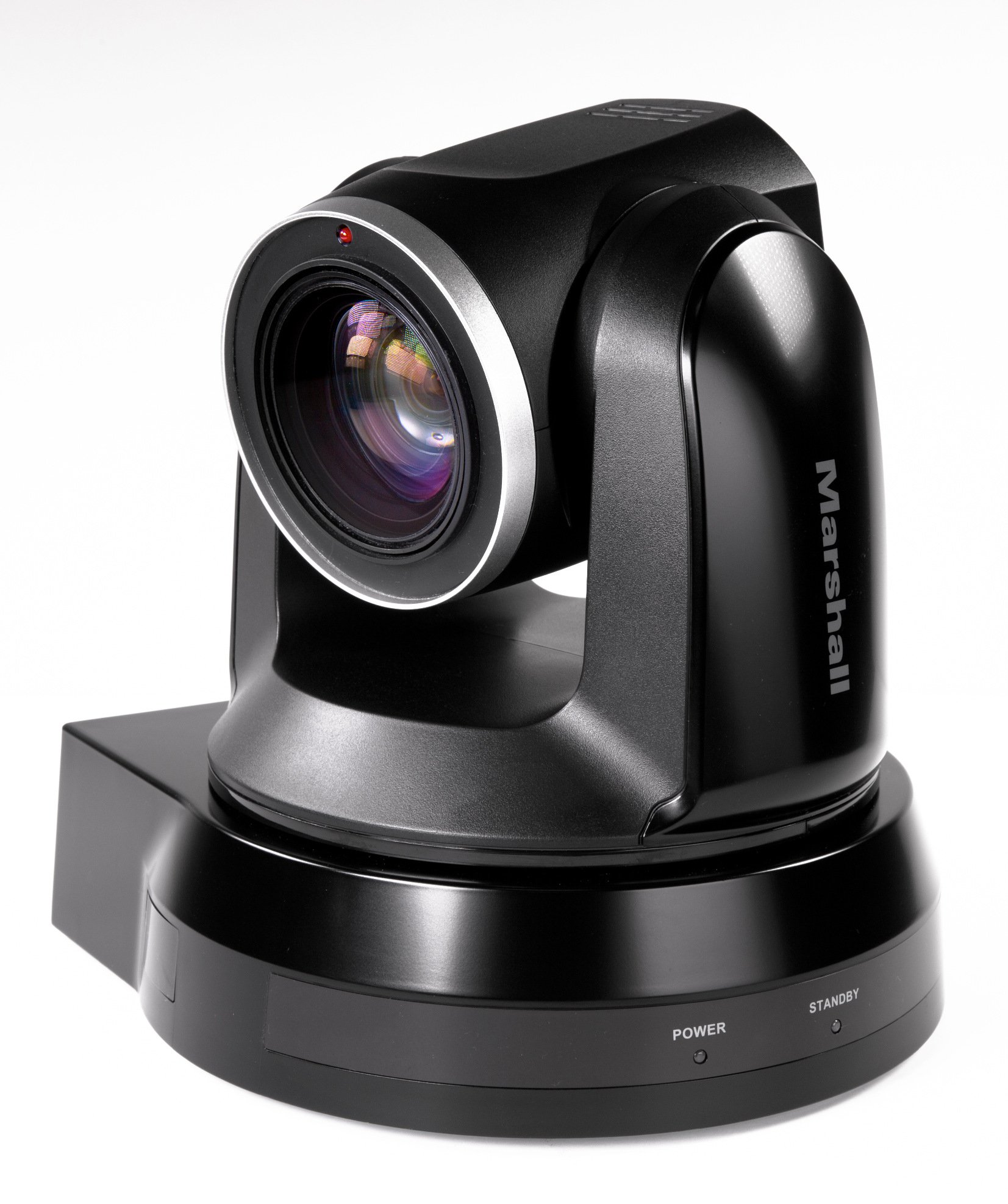

Marshall Electronics CV612HT-4K
4K HDBaseT and HDMI PTZ 12x Optical Zoom Camera in Black

OUR PART #:  BAV-CV612HT-4K

Our Price: $3,895.00
List Price: $3,995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV612HT-4K
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The CV612HT-4K from Marshall Electronics Broadcast is a Pro/AV 4K PTZ HDBaseT/HDMI Camera that is built around a 4K UHD 9 Megapixel 1/2.8-inch sensor with durable and smooth simultaneous Pan-Tilt-Zoom operation. This results in this PTZ camera producing up to 3840x2160p resolution from the high performance nine Megapixel sensor. One Cat5e/6 cable carries PoE (48V), uncompressed 4K video, and command control to camera. Remote operation and control using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use.

Marshall CV612HT-4K Applications:

  • Corporate
  • Courtroom
  • Education
  • Worship
  • Healthcare
  • Medical
  • Government
  • Entertainment
  • Music and a variety of Broadcast studio work-flows

Marshall CV612HT-4K Features:

  • 4K & HD: 3840x2160p29.97/25, 1920x1080p59.94/50,1920x1080i59/50, 1280x720p59/50
  • High Speed: 60, 59.94, 50, 30, 29.97, 25fps (NTSC/PAL)
  • Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080p24x), 12x optical – 12x digital
  • Wide Angle-of-View @ 3.9mm – 74° Panoramic AOV
  • Pan Range: -170° ~ +170°
  • Tilt Range:  -30° ~ +90°
  • 128 preset locations with variable transition speeds
  • Quiet, smooth, durable PAN-TILT-ZOOM motor allows for quality transitions
  • HDBaseT (uncompressed), HDMI outputs
  • RS422/RS232 Remote Control Interface at High Comm Speeds
  • Mountable via table/wall/ceiling (ceiling mounts included) with flippable images
  • Compatible with integrated video conferencing systems (VISCA/PELCO)
  • PoE (IEEE802.3af) over HDBaseT (Cat5e/6) – one Cat5e/6 hookup to camera
  • Tally Light on front camera panel

Marshall CV612HT-4K Specifications:

  • Model: BAV-CV612HT-4K
  • Sensor: 1/2.3” 9MP CMOS
  • Video Output:
    • 3840 x 2160p @ 29.97 / 25 fps
    • 1920 x 1080p @ 59.94 / 50 fps
    • 1920 x 1080i @ 59.94 / 50 fps
    • 1280 x 720p @ 59.94 / 50 fps
    • NTSC / PAL
  • Optical Zoom: 12x
  • Clear Image Zoom:
    • 1.67x (4K:20x)
    • 2.0x (1080P:24x)
  • Digital Zoom: 12x
  • Video Output Interface: HDBaseT, HDMI simultaneous
  • Horizontal Viewing Angle: 74° at widest
  • Panning Angle: -170° ~ +170°
  • Tilting Angle: -30° ~ +90°
  • Preset Positions: 128 savable
  • Panning Speed: 300°/sec
  • Tilting Speed: 300°/sec
  • Video S/N Ratio: > 50dB
  • Shutter Speed: 1/1 ~ 1/10,000 sec
  • Focal Length: f = 3.9mm~46.8mm
  • Aperture: F1.8~F2.0
  • Tally Light: Yes
  • PoH (PoE over Cat6e): Yes (IEEE802.3af)
  • Camera Control Interface: RS-232/ RS-422
  • Camera Control Protocol: VISCA, PELCO D
  • Minimum Illumination: 3.0 lux (F1.8, 50 IRE, 30 fps)
  • Minimum Object Distance (MOD): 10mm (Wide) ~ 1500 mm (Tele)
  • Gain Control: Auto, Manual
  • White Balance: Auto, Indoor, Outdoor, One-Push, Manual
  • Exposure Control: Auto, Manual
  • Focus System: Auto, Manual
  • Image Flip / Joystick Flip: Yes
  • 3D NR: Yes
  • Weight: 4.4 lbs (2.0kg)
  • Dimension (H x W):  7.35 x 6.85in. (186.8mm x 174.0mm)
  • UPC: 801813184013
