Pathway Connectivity 6152
Pathport Portable UNO Gateway with Single XLR5-F Output

OUR PART #:  P6152

Our Price: $486.21
List Price: $525.00
You save 7%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Pathway Connectivity 6152
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

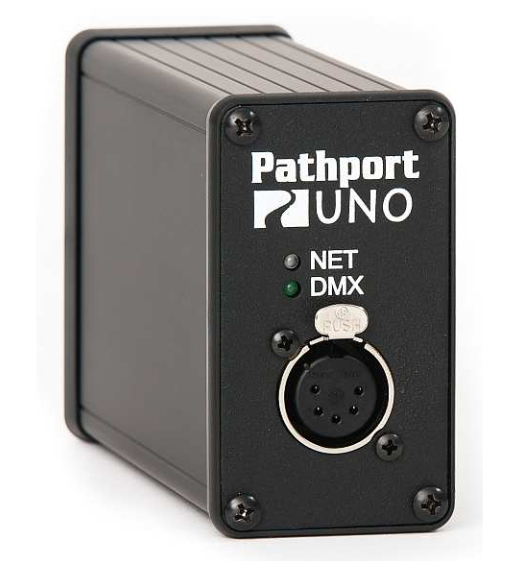

The Pathport® Portable Uno™ (Model 6152) from Pathway Connectivity is a single port DMX512 gateway in a rugged metal enclosure that comes with full support for Pathport DMX management and distribution features. The Model 6152 comes with a single five-pin XLR female output and includes a hanging bracket. Pathport™ Uno is ideal for venues and applications where a simple, single DMX port is needed, in either flushmount or portable forms.

Pathway 6152 Portable Uno Includes:

  • Installation/Operations manual
  • Hanging Bracket (6151/6152 portable models only)

Pathway 6152 Portable Uno Features:

  • Single DMX512 port
  • DMX routing on a universe or channel-by-channel basis
  • Multiple source merging or prioritizing using powerful softpatch engine
  • DMX output speed and signal loss behavior user-set
  • LED indicators for network status and DMX status
  • Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
  • 2.5mm DC input port included
  • E1.20 RDM compliant as proxy device
  • Manage up to 256 RDM responders per port
  • Ships with optional hanging bracket
  • Discreet compact design
  • Supports the following Ethernet protocols:
    • E1.31 Streaming ACN (sACN)
    • Strand Shownet
    • Pathport Protocol
    • Art-Net
    • ETC Net2 (receive only)

Pathway 6152 Portable Uno Specifications:

  • Power-over-Ethernet Class 1 device - 4W maximum
  • Operating Conditions:  14 to 122°F (-10 to +50°C), 5-95% relative humidity, non-condensing
  • Compliance:
    • USITT DMX512 –1990 ANSI E1.11 DMX512-A R2013
    • E1.20 RDM - Remote Device Management
    • E1.31 sACN - streaming ACN
    • IEEE 802.3af Power over Ethernet
    • CE
    • RoHS 2002/95/EC
    • Class 2 Low Voltage
  • Physical:
    • 1 lb (0.45 kg)
    • 1.8”w  x 3.2”h  x 5.0”d ( 46mm x 82mm x 126mm)
