Neutrik NC3FDM3LBAG-1 DL1 Series 3 pin Female Receptacle

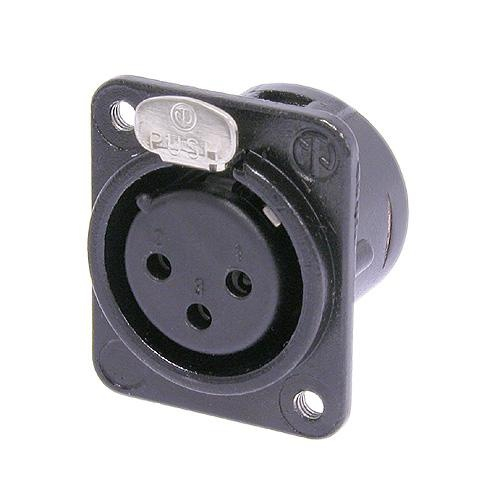

The Neutrik NC3FDM3LBAG-1 is a 3 pole female receptacle with solder cups, black metal housing, silver contacts, and M3 mounting holes.

Universal D-size metal body XLR panel mount series. UL recognized component.

Neutrik NC3FDM3LBAG-1 Features:

• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout
• Solder cups on 3 - 7 pole version

Neutrik NC3FDM3LBAG-1 Specifications:

• Product:
  • Title: NC3FDM3LBAG-1
  • Connection Type: XLR
  • Gender: female
• Electrical:
  • Capacitance between contacts: = 4 pF
  • Contact resistance: = 5 mO
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GO (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V
• Mechanical:
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Mounting direction: Rear mounting
  • Chassis shape: D
  • Mounting: Mounting holes with M3 threads
• Material:
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
• Environmental:
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
