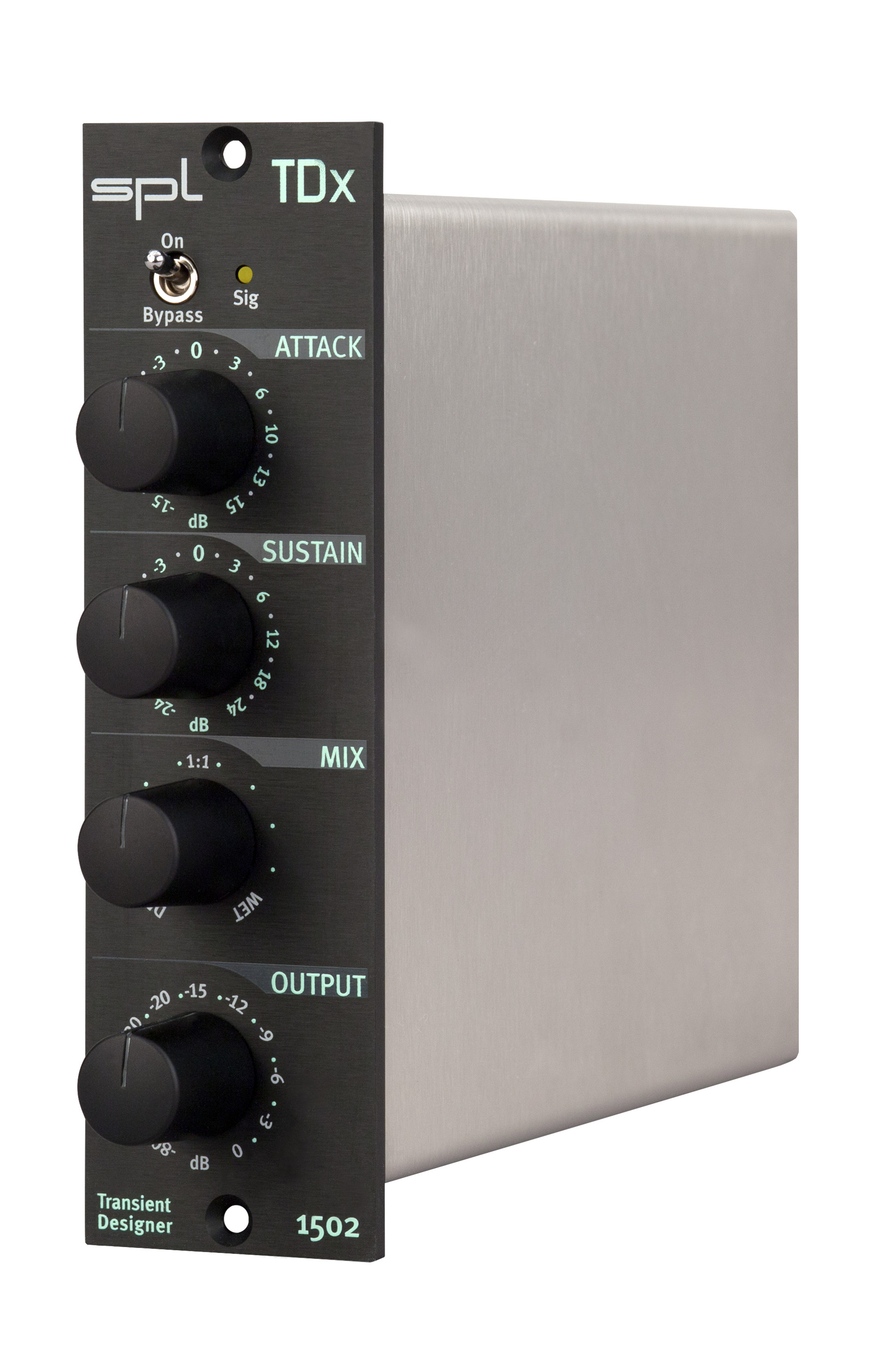

SPL Sound Performance Lab TDx
Transient Designer 500 Series module

OUR PART #:  TDX

The SPL TDx Trasient Designer 500 module is the level-independent processing of signal paths is making headway into the world of 500 series rack modules.
Learn More
Our Price: $599.00
List Price: $699.00
You save 14%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

SPL Sound Performance Lab TDx
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SPL TDx Trasient Designer 500 module is the level-independent processing of signal paths is making headway into the world of 500 series rack modules.

Working with the Transient Designer is very simple: Attacks can be amplified or attenuated and sustain may be prolonged or shortened. However, the possibilities for studio and live application are seemingly endless.

Thanks to the new TDx feature MIX (parallel mix) you can continuously blend between the processed and the unprocessed signal. Thus, the range of functions is extended even further and with the three parameters ATTACK, SUSTAIN and MIX, which offer an intuitive operation, the options of designing transients reach a new dimension of great variety.

SPL TDx Features:

  • Extended original Transient Designer circuitry
  • NEW: Parallel MIX control - blend between "Wet" and "Dry"
  • ATTACK: amplify or attenuate attacks
  • SUSTAIN: Prolong or shorten sustain
  • Differential Envelope Technology (DET)
  • Output level control
  • ON/Bypass switch
  • Signal LED
  • Single-Slot 500 series rack module
  • Made in Germany

SPL TDx Specifications:

  • Input:
    • Balanced
    • Impedance: 20kOhm
    • Max. Input level: +22 dBu
  • Output:
    • Balanced
    • Impedance : 150 Ohm
    • Max. Output Level: +22 dBu
  • Frequency Range: 10Hz -100kHz
  • Noise: -93 dBu (A-weighted)
  • Dynamic Range: 116 dB
  • CMRR: > -80 dBu (at 1 kHz, 0 dBu input level, unity gain)
  • THD: 0,03% (at 0 dBu input level, unity gain)
  • Housing: Single Slot 500er-Serie rack modul
  • Weight: 1.43 lbs (0.65 kg)
