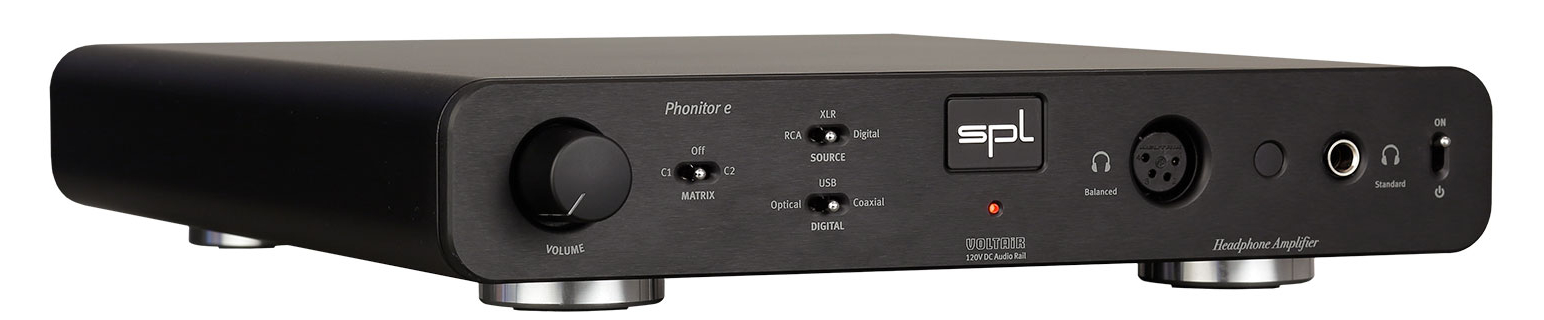

SPL Sound Performance Lab Phonitor e
Headphone Amplifier + DAC

OUR PART #:  PHONITOR-E+DAC

The SPL Phonitor e is the ultimate headphone amplifier. It offers connections for headphone operated both balanced and unbalanced.
Learn More
Selected Model Price: $1,499.00
List Price: $1,799.00
Save up to 17%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

SPL Sound Performance Lab Phonitor e
Select model: (shipping times are approximate)
Qty:

Similar Products

The SPL Phonitor e is the ultimate headphone amplifier. It offers connections for headphone operated both balanced and unbalanced. With up to 3.7 W output power the Phonitor e delivers an impressive performance.

Up to five input sources can be connected to the Phonitor e. Two analog stereo inputs (XLR und RCA) and, if the optional DAC is installed, three more digital stereo inputs (USB, coaxial and optical).

SPL Phonitor e Features:

  • 120 V Rail headphone amplifier
  • Separate connections for headphones driven balanced and unbalanced
  • Suited for all headphones with impedances >10 ohms
  • Balanced and unbalanced analog inputs (XLR and RCA)
  • Optional DAC: 192 kHz and 24 Bit, Win driver supplied, Apple Class compliant
  • Phonitor Matrix with two presets for speaker-equivalent listening
  • Volume remotely adjustable (learns any IR remote control)
  • Maximum output power: 2 x 3.7 W (into 120 ohms)
  • Frequency response: 10 Hz - 300 kHz
  • THD+N: 0.00091 %
  • Dynamic range: 135.5 dB
  • Standby/power on switch
  • Linear power supply with toroidal transformer
  • Front and Lid made from aluminum, housing made from sheet metal
  • Made in Germany

SPL Phonitor e Specifications:

  • XLR Input
    • Neutrik XLR, balanced, Pin 2 = (+)
    • Impedance: ca. 20 kohms
    • CMR: -82 dBu (at 1 kHz)
    • Max. Input Level: +32.5 dBu
  • RCA Input
    • RCA,  unbalanced
    • Impedance: ca. 10 kohms
    • Max. Input Level: +32.5 dBu
  • Power Supply
    • Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz
    • Fuses: 230 V: T 500 mA; 115 V: T 1 A
    • Power consumption: max 30 VA
    • Stand-by power consumption: 0.7 W
  • Dimensions (incl. feet) (W x H x D): 10.95 x 2.24 x11.19" (278 x 57 x 335 mm)
  • Weight:
    • 3.3 kg; 7.3 lbs (unit only)
    • 4.4 kg; 9.7 lbs (shipping)
