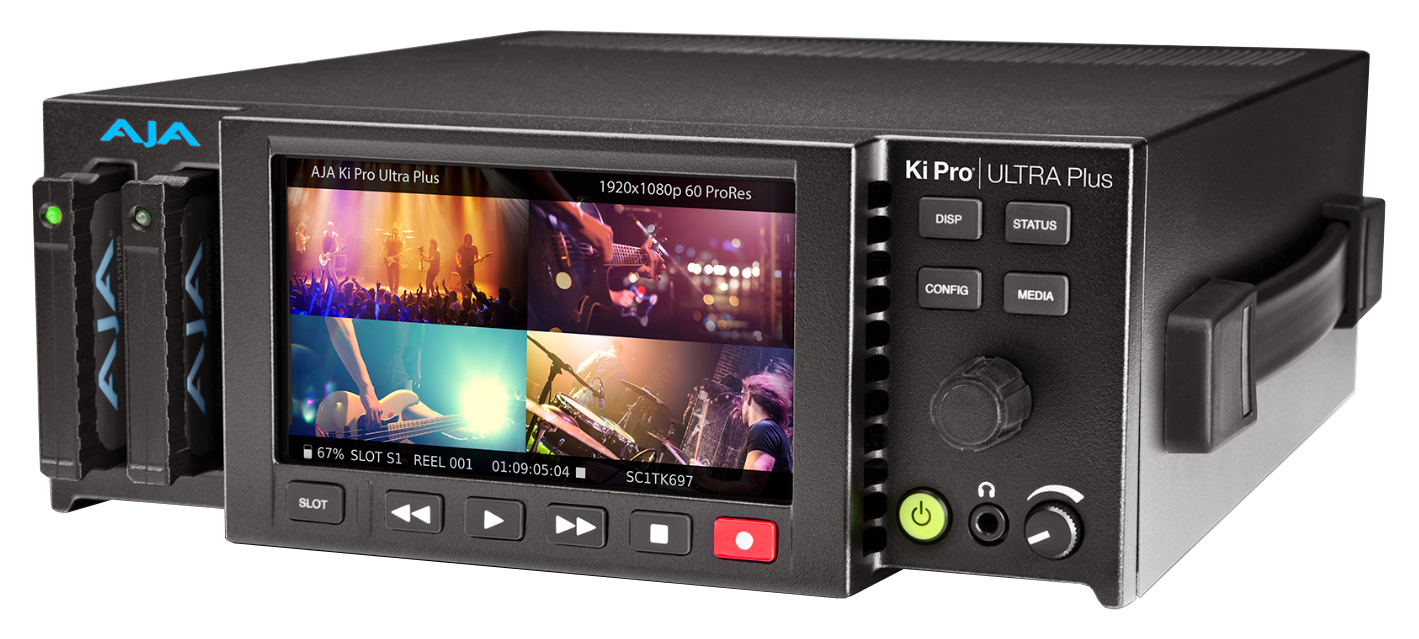

AJA Video Systems Inc Ki Pro Ultra Plus
4K/UHD and 2K/HD Recorder/Player with Multi-Channel Support

OUR PART #:  KI-PRO-ULTRA-PLUS

The AJA Video Systems Inc Ki Pro® Ultra Plus is a Multi-Channel Apple ProRes recorder offering up to 4-Channels of simultaneous HD recording...
Learn More
Our Price: $3,995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc Ki Pro Ultra Plus
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Video Systems Inc Ki Pro® Ultra Plus is a Multi-Channel Apple ProRes recorder offering up to 4-Channels of simultaneous HD recording, or in Single-Channel mode a 4K/UltraHD/2K/HD Apple ProRes® or Avid DNxHD® MXF recorder and player supporting the latest connectivity including 3G-SDI, Fiber and HDMI 2.0, as well as large raster high frame rate workflows, including 4K 60p.

Designed to be both portable with a built-in carry handle or rackmountable with half rack wide 2RU high dimensions, Ki Pro Ultra Plus suits a wide range of production and post environments.

AJA Video Systems Inc Ki Pro Ultra Plus Features:

  • Multi-channel HD recording
  • Ki protect
  • HDMI 2.0: Colorful simplicity
  • 4K, 12-bit full raster workflows for professionals
  • ProRes® 422 and 444 recording
  • Avid DNxHD MXF recording
  • exFAT and HFS+ support
  • 2SI (two sample interleve)
  • 16-channel auidio support
  • Closed caption support
  • Reliable storage media
  • Pak-adapt-eSATA
  • High quality LCD with onscreen intuitive UI
  • Familiar controls
  • Professional Connectivity
  • 4K and HD monitoring
  • Fiber connectivity
  • CWDM fiber options
  • RS-422 control
  • Remote configuration
  • AJA data calc

AJA Video Systems Inc Ki Pro Ultra Plus Specifications:

  • Video Formats:
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97*
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97*
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080i 25, 29.97, 30
    • (HD) 1080PsF 23.98, 24, 25**, 29.97**
    • (HD) 720p 50, 59.94, 60
      *Only 4 x 1.5G-SDI, 10-bit 4:2:2 YCbCr, Square Division
      **25 and 29.97 requires Record Type>PsF selection
  • Codec Support:
    • Apple ProRes 4444, 4K/UltraHD/2K/HD up to 30 fps
    • Apple ProRes 422 (HQ)
    • Apple ProRes 422
    • Apple ProRes 422 (LT)
    • Apple ProRes 422 (Proxy)
    • Avid DNxHD HQX (220x)*
    • Avid DNxHD SQ (145)*
    • Avid DNxHD LB (36)**
      • (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94
      • (HD) 1080i 25, 29.97
      • (HD) 1080PsF 23.98, 24, 25, 29.97
      • (HD) 720p 50, 59.94
    • *Avid DNxHD only supported for 1080 and 720 resolutions
    •  **Avid DNxHD 36 only supported for 1080p
  • Codec Container:
    • Apple ProRes .MOV
    • AVID DNX MXF or .MOV
  • Removable Storage:
    • 2 x slots, AJA Pak SSD media Pak256, Pak512, Pak1000*
    • Pak-Adapt-eSATA**, Pak-Adapt-CFast**
      *4K/UltraHD 50, 59.94, 60 ProRes 422 (HQ) recording requires genuine AJA Pak1000 media
      **Only with AJA qualified media
  • Video Input Digital:
    • 4x 3G-SDI, SMPTE-292/296/424, 10-bit (12-bit input supported)
    • 4x Fiber LC*,  3G-SDI, SMPTE-297, 10-bit
    • 4K/UltraHD 4:2:2 or 4:4:4 (4 x BNC or Fiber LC*)
    • Dual Link 4:2:2, 4:4:4 (2 x BNC or Fiber LC*)
    • Single Link 4:2:2, 4:4:4 (1 x BNC or Fiber LC*)
    • 1x HDMI standard type A connector
    • HDMI v2.0
      • 4:2:2 YCbCr 8/10/12bit
      • 4:4:4 RGB/YCbCr 8bit
      • 4:2:0 YCbCr 8/10/12bit (deep color)
      • 4:4:4 RGB 10/12bit (deep color)
        *Optional SFP Modules
  • Video Output Digital:
    • 4 x 3G-SDI, SMPTE-292/296/424, 10-bit
    • 4x Fiber LC* 3G-SDI, SMPTE-297, 10-bit
    • 4K/UltraHD 4:2:2 or 4:4:4 (4 x BNC or Fiber LC*)
    • Dual Link 4:2:2 or 4:4:4 (2 x BNC or Fiber LC*)
    • Single Link 4:2:2 or 4:4:4 (1 x BNC or Fiber LC*)
    • 1x HDMI standard type A connector
    • HDMI v2.0
      • 4:2:2 YCbCr 8/10/12bit
      • 4:4:4 RGB/YCbCr 8bit
      • 4:2:0 YCbCr 8/10/12bit (deep color)
      •  4:4:4 RGB 10/12bit (deep color)
        *Optional SFP Modules
  • Audio Input Digital:
    • 16-Channel, 24-bit SDI/Fiber embedded audio, 48 kHz sample rate, synchronous
    • 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
    • 8-Channel, AES/EBU via (1/2 x DB-25 TASCAM pinout)
  • Audio Input Analog:
    • 8-Channel, 24-bit A/D analog audio, 48 kHz sample rate (1 x DB-25 TASCAM Pinout)
    • +24dBu full scale digital
    • +/- 0.2dB 20 Hz to 20 kHz frequency response
  • Audio Output Digital:
    • 16-Channel, 24-bit SDI/Fiber embedded audio, 48 kHz sample rate, synchronous
    • 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
    • 8-Channel, AES/EBU via (1/2 x DB-25 TASCAM pinout)
  • Audio Output Analog:
    • Stereo unbalanced headphone jack (1 x 3.5mm jack) with volume control
    • 8-Channel, 24-bit D/A analog audio, 48 kHz sample rate (1 x DB-25 TASCAM pinout)
    • 2-Channel unbalanced 2 x RCA connectors
  • Recording Mode:
    • Multi-channel HD Apple ProRes recording*
    • Single-channel 4K/UltraHD/2K/HD recording
      *Multi-channel HD recording is only supported for Apple ProRes with AJA Pak1000 media
  • Playback Mode: Single-channel HD/2K/UltraHD/4K recording
  • Timecode:
    • SDI RP188/SMPTE 12M via SDI BNC
    • LTC input (1 x BNC)
    • LTC output (1 x BNC)
  • Reference Input:
    • External, 2 x BNC
    • Looping, nonterminating
    • Blackburst or tri-level sync
  • Network Interface:
    • 10/100/1000 Ethernet (RJ-45)
    • Embedded web server for remote control via REST
    • Video Confidence Monitor via Web Interface
    • Clip upload/download via Web Interface in DATA-LAN mode
    • Configuration and Transport Control via WEB Interface
  • Machine Control:
    • RS-422, 1 x DE-9 female connector, Sony 9-pin protocol
    • 9-pin D-connector pinout is as follows:
   1          GND
   2          TX-
   3          RX+
   4          GND
   5      No Connection
   6          GND
   7          TX+
   8           RX-
   9          GND
 Shell          GND
  • User Interface:
    • Rotary selector knob
    • Dedicated, backlit transport controls and menu buttons
    • Large 1280 x 720 TFT LCD display with Video Monitor and Menu/Status Overlays
  • Closed Captioning Support: CEA-708, CEA-608
  • File System Support: HFS+, exFAT
  • Size (WxDxH): 8.64" x 9.34" x 3.31" (219.46 x 237.24 x 84.08 mm)
  • Weight: 5.6 lbs (2.6 kg)
  • Power:
    • Dual, redundant, 5.4A max, 35W-60W typical-65W Max
      • 100-240 VAC 50/60 Hz (adapter)
      • 12-18Vdc 4-pin XLR (chassis)
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
