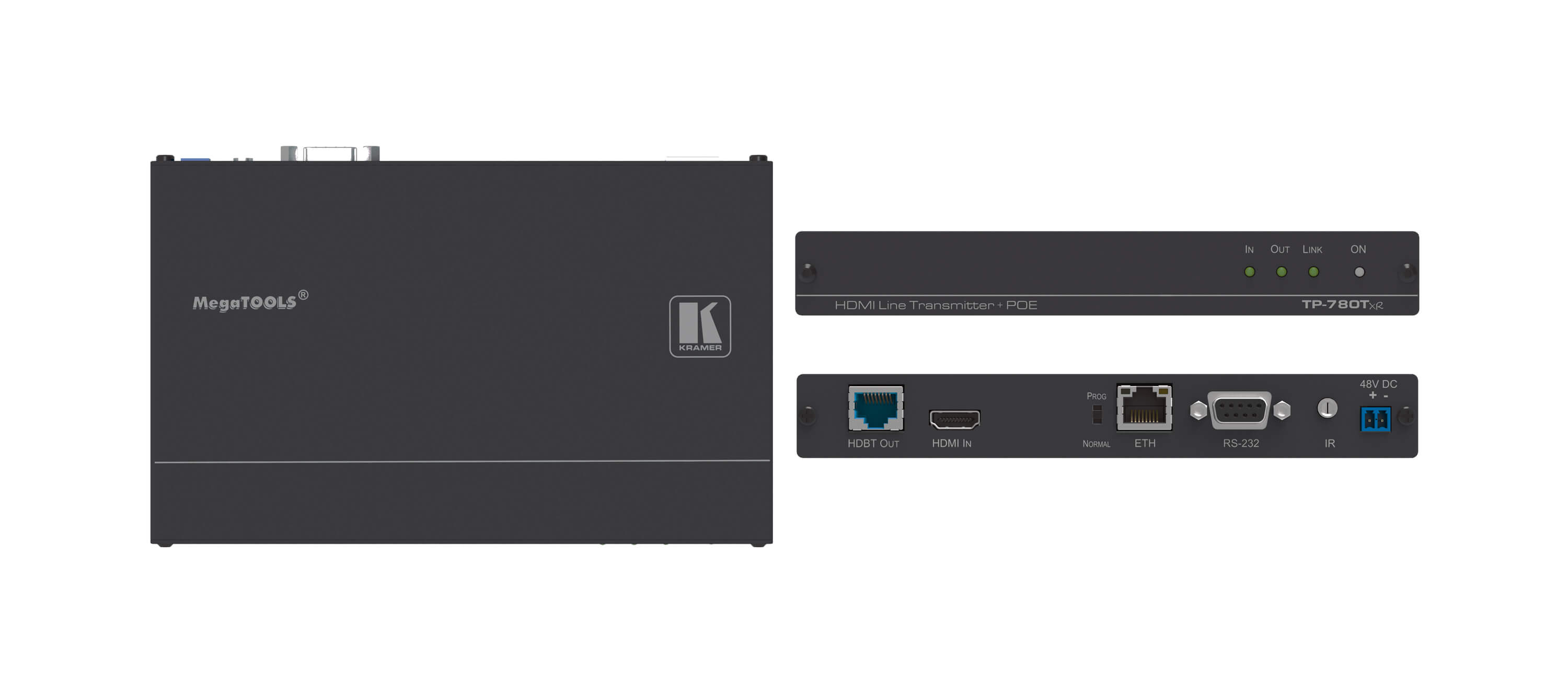

Kramer TP-780TXR
4K UHD HDMI HDBaseT Transmitter with POE - Extended Range

OUR PART #:  TP-780TXR

The Kramer TP-780TXR is a high-performance, HDBaseT twisted pair transmitter for 4K@60Hz (4:2:0), 2Kx4K HDMI, Ethernet, bidirectional RS-232, IR signals and PoE.
Learn More
Our Price: $348.00
List Price: $435.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-780TXR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer TP-780TXR is a high-performance, HDBaseT twisted pair transmitter for 4K@60Hz (4:2:0), 2Kx4K HDMI, Ethernet, bidirectional RS-232, IR signals and PoE. The TP-780TXR inputs HDMI, Ethernet, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-780RXR receiver. The TP-780TXR provides power remotely over Ethernet to the TP-780RXR in places where an external power supply is difficult to reach. The result is that a single HDBaseT LAN cable can provide both data and power to compatible devices.

Kramer TP-780TXR Features:

  • Reach Extension — Up to 100m (330ft) at 4K @60Hz (4:2:0); up to 130m (430ft) at full HD (1080p @60Hz 36bpp); up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp), when using Kramer HDBaseT cables
  • Transmitted Data Bandwidth — Up to 10.2Gbps (3.4Gbps per graphic channel)
  • Transmitter Compliance — Complies with HDBaseT receiver.
  • Video Resolution — Up to 4K@60Hz (4:2:0) 24bpp
  • HDMI Signal Transmission — HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, CEC, Full HD, 2K, 4K, and 3D
  • Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting surround sound at studio level
  • EDID and CEC Pass Through — Passes EDID and CEC signals from the source to the display
  • Ethernet Transmission — Ethernet interface data flows in both directions to allow extension of up to 100Mbps Ethernet connectivity for LAN communication and device control
  • Bidirectional RS–232 Transmission — Serial interface data flows in both directions to allow data transmission and device control
  • Bidirectional Infrared Transmission — IR interface data flows in both directions to allow remote control of peripheral devices located at either end of the extended line
  • Firmware Upgrade — Local upgrade via RS–232 control connection and the K–Upload tool to ensure field–proven deployment
  • LED Indicators — Status indicators for HDMI input and the HDBT output link facilitate maintenance and troubleshooting
  • Easy Installation — Single cable for transmitting HDBaseT signals and PoE to the receiver. Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the optional RK–T2B rack adapter

Kramer TP-780TXR Specifications:

  • Inputs: 1 HDMI connector
  • Outputs: 1 twisted pair RJ–45 connector
  • Ports: 1 IR on a 3.5mm mini jack, 1 RS–232 on a 9–pin D–sub connector
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • RS-232 BAUD Rate: 115200
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Power Consumption: 48V DC, 280mA
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: –40° to 158°F (–40° to +70°C)
  • Humidty: 10% to 90%, RHL non–condensing
  • Included Accessories: Power supply 48V/1.36A, bracket installation kit
  • Options: RK–T2B 19” rack mount, Kramer external IR sensor (P/N: 95–0104050), Kramer IR emitter cable (P/N: C–A35/IRE–10)
  • Product Dimension (WxDxH): 7.38" x 4.53" x 1.00" (18.75 x 11.50 x 2.54cm)
  • Product Weight: 0.9lbs (0.4kg) approx
  • Shipping Dimensions (WxDxH): 13.58" x 6.50" x 2.05" (34.50 x 16.50 x 5.20cm)
  • Shipping Weight: 2.2lbs (1.0kg) approx
