Studio Technologies Model 5422-02
Dante Intercom Audio Engine

OUR PART #:  MODEL-5422-02

The Studio Technologies Model 5422 Dante Intercom Audio Engine is a high-performance, cost-effective...
Learn More
Our Price: $2,998.45
List Price: $3,295.00
You save 9%!
Write the first review.
Studio Technologies Model 5422-02
Usually ships in 7-14 business days.
Need it sooner? Call us!

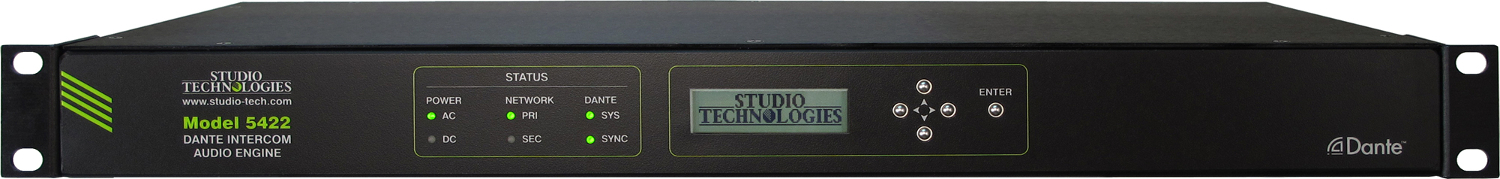

The Studio Technologies Model 5422 Dante Intercom Audio Engine is a high-performance, cost-effective, and flexible solution for creating party-line (PL) intercom circuits when used with Dante-compatible products. These include the Studio Technologies range of 2- and 4-channel intercom beltpacks. The Model 5422 will also prove valuable in a variety of other broadcast-related mixing, IFB (talent cueing), and interfacing applications. The unit is suitable for use in fixed and mobile broadcast facilities, post-production studios, commercial and educational theater environments, and entertainment applications. Only power and an Ethernet network connection are required for the Model 5422 to provide a powerful resource in a variety of Dante applications. The Model 5422 is available in two versions – one with 32 input and output channels and the other with 64 input and output channels.

Model 5422-02 is two 32-channel Dante audio engines (64 channels total).

Studio Technologies Model 5422 Applications:
Designed to create multiple party-line (PL) circuits in Dante audio-over-Ethernet environments. Can also provide digital summing (mixing) functions for general-purpose applications. Special Dante pass-thru mode allows flow-limited and non-AES67-compliant Dante devices to participate in more advanced applications.

Studio Technologies Model 5422 Features:

  • Dante audio-over-Ethernet technology with AES67 support
  • Creates multiple virtual party-line (PL) intercom circuits
  • High-performance, low-latency 32-bit digital audio processing
  • Two versions available: one or two 32-channel audio engines
  • Dual Gigabit Ethernet interfaces allow switched, redundant, and split Dante operation
  • Web-based configuration and software updating
  • AC mains and 12 volts DC powering
  • Lightweight enclosure, single rack-space (1U) mounting

Studio Technologies Model 5422 Specifications:

  • Network Audio Technology:
    • Type: Dante audio-over-Ethernet
    • AES67-2013 Support: selectable enabled/disabled
    • Ethernet Interface Configuration: Switched, Redundant, or Split
    • Clock Source: Dante network or internal (can serve as clock master)
    • Bit Depth: 24
    • Sample Rate: 48 kHz
    • Number of Dante Receiver (Input) Channels: 32 (Model 5422-01), 64 (Model 5422-02)
    • Number of Dante Transmitter (Output) Channels: 32 (Model 5422-01), 64 (Model 5422-02)
    • Number of Dante Flows: 32 transmitter, 32 receiver
    • Internal Digital Audio Processing: 32-bit, fixed
    • Input-to-Output Audio Processing Latency: less than 100 uSec
  • Network Interfaces: 2, Primary and Secondary
    • Type: 1000BASE-T (Gigabit Ethernet ("GigE")) per IEEE 802.3ab (100 Mb/s also supported but not recommended for optimal performance)
    • NIC Status LEDs: one link and one activity for each Ethernet interface
  • Software Updating: internal FTP client supportsupdating of main and audio processing (FPGA) software
  • Front Panel Display: LCD with LED backlighting
  • Front Panel LEDs: 6, dual-color
    • Functions: provides indication of condition of incoming AC and DC power, status of Dante connections on Ethernet interfaces, and status of Dante connectivity
  • Power Sources:
    • AC Mains: 100 to 240 V, 50/60 Hz, 5 W maximum
    • DC: 10 to 18 V, 0.5 A max
  • Connectors:
    • Ethernet: 2, RJ45
    • AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with C13)
    • DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)
  • Dimensions (Overall):
    • 19.0 inches wide (48.3 cm)
    • 1.72 inches high (4.4 cm)
    • 7.9 inches deep (20.1 cm)
    • Mounting: one space (1U) in a standard 19-inch rack
    • Weight: 2.8 pounds (1.3 kg)
