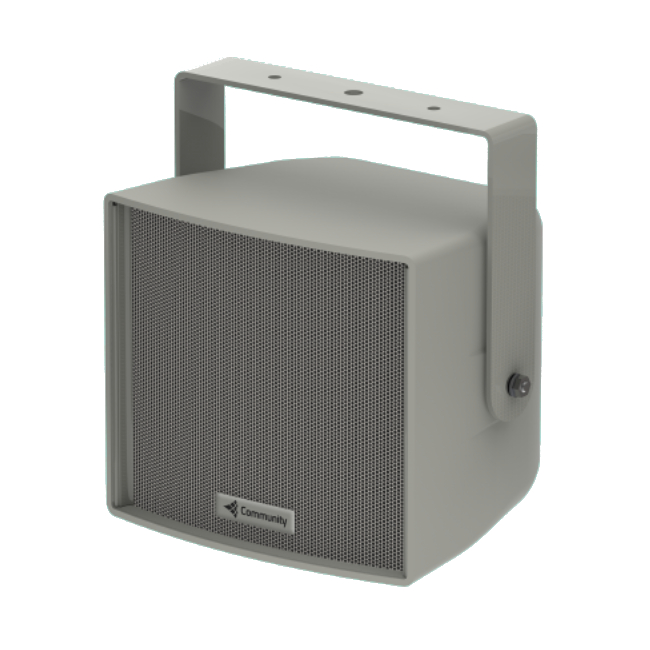

Biamp R.15COAXW 6.5" 2-Way Coaxial Speaker, Weather Resistant, White

The compact R.15 and R.35 models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. This model, the R.15COAXW is weather resistant and comes in the color white.

The R.15COAX and R.35COAX use identical 1.25-inch exit HF compression drivers, featuring Community’s exclusive Tru-Phase™ phase plug and Carbon Ring Cone Technology™. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction, while identical voicing ensures a uniform listening experience. The HF assembly is coaxially mounted with the LF driver allowing wide 100° coverage with low distortion. The flange-less cone design provides a cone area nearly equivalent to a typical 8-inch driver cone.

The Music / Voice switch provides an out-of-the-box selectable response allowing for additional application flexibility. The design uses Community's proprietary Tru-Phase™ phase plug to provide wide dispersion, low distortion and increased intelligibility. The enclosure is sealed to provide maximum vocal clarity and increased intelligibility. The sealed enclosure also provides supreme weather protection for all of the interior components.

Community R.15COAXW Applications:

• Theme and Amusement Parks
• Outdoor Entertainment Centers
• Malls, Fairgrounds, Race Tracks
• Multipurpose Indoor/Outdoor Venues
• Background Music / Voice Paging Systems
• Athletic Fields
• Swimming Pools
• Convention Centers
• Cruise Ships
• Factories
• Stadiums, Arenas

Community R.15COAXW Features:

• Excellent musicality and intelligibility, and low distortion in an extremely compact enclosure
• Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
• NeverWet™ treated grille and LF driver cones, polymer HF diaphragm, and moisture-sealed crossover
• Corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and low-profile yoke
• Real compression driver on Tru-Phase™ waveguide
• 120W Autoformer (standard), selectable 8 ohm or 70V/100V operation
• High sensitivity, high output
• Light Grey, Black and White finish standard - Custom colors available upon request.
• Five-year product warranty / Fifteen-year enclosure warranty

Community R.15COAXW Specifications (partial):

• Transducers: LF - 1 x 6.5" carbon ring cone; coaxial HF - 1 x 1.25" exit compression driver
• Operating Range: 90 Hz - 16 kHz
• Sensitivity (1W/1m): 94 dB
• Power Handling: 150W continuous @ 8 ohms
• Continuous Max Output: 117 dB (123 dB Peak)
• 70V/100V Autoformer: 120W, 60W, 30W, 15W (@ 70V only)
• Nominal Beamwidth (H x V): 100° x 100° (conical)
• Finish: Light Grey, Black or White ABS matte plastic, paintable with dual-layer powder-coated steel with NeverWet™ treated grille
• Dimensions (H x W x D): 9.0" x 10.2" x 10.2" (229 x 258 x 259 mm)

Note:

Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

For additional specs and info, please consult the documentations tab above.
