Galaxy Audio EDXR/HH38 EXDR UHF Wireless Dual Handheld System, Handheld Transmitter / Mics

The Galaxy Audio EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Syc from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

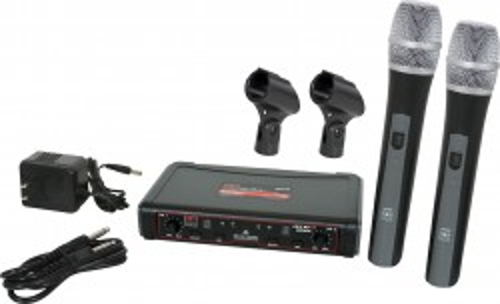

EDXR/HH38 - This system includes the EDXR Receiver and 2 HH38 Handheld Transmitters.

Galaxy Audio EDXR Receiver Features:

• AF & RF Indicator
• IR Sync
• 1 Mixed 1/4" Output, 2 Balanced Male XLR Output
• 2 Internal Antennas (Non-Diversity)
• Rugged Plastic Casing

Galaxy Audio EDXR Receiver Specifications:

• Audio Output Level
  • XLR Connector (into Ohms 600 load) -12 dBV
  • 1/4" Connector (into 3k Ohms load) -18 dBV
• Output Impedance
  • XLR Connector 200 Ohms
  • 1/4" Connector 1k Ohms
• Sensitivity: -92 dBm
• Image Rejection: >92 dB
• Dimensions (H x W x D): 1.7" x 8.3" x 5" (42 x 210 x127 mm)
• Weight: 13.6 oz (390 g)
• Power Requirements: 12-18 V dc at 300mA, supplied by external power supply

Galaxy Audio HH38 Handheld Transmitter Specifications:

• Max Audio Input Level: 0 dBV
• Gain Adjust: Trim pot
• RF Output: 10 mW
• Frequency Response: 70 Hz - 10 kHz
• Dimensions: 10.8" x 1.9" (275 x 47 mm) (L x Dia.)
• Weight: 6.9 oz. (195 g) (without batteries)
• Power Requirements: 2 “AA” size alkaline or rechargeable batteries
• Battery Life: About 8 hours (Alkaline)
