Product Overview

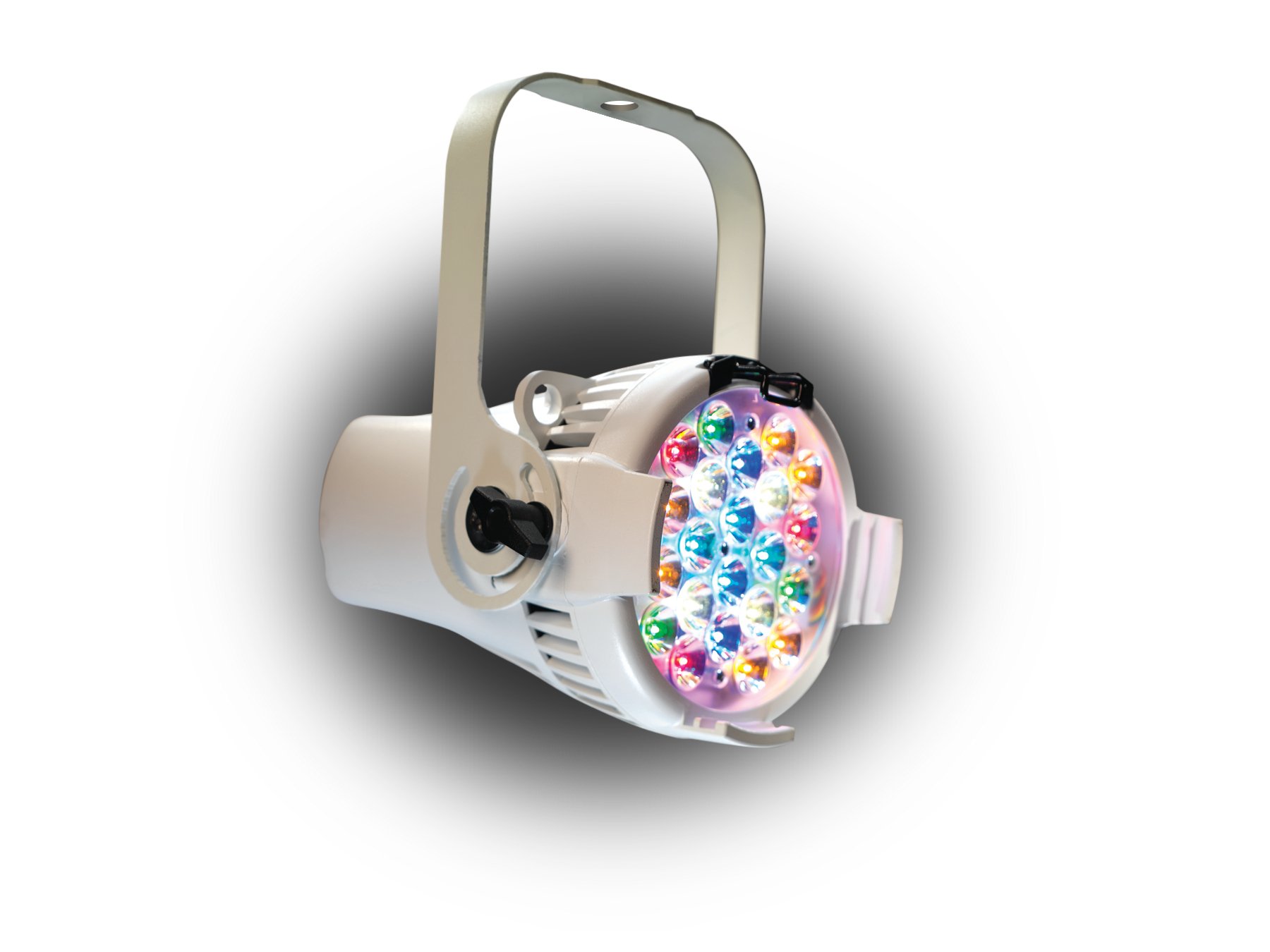

Don't let the ETC Selador Desire D22™ LED luminaire's size fool you; it may be small, but it does pack a punch. Budget-friendly and equipped with 22 Luxeon® Rebel LED emitters, the D22 delivers efficient ETC Desire®-quality lighting in a small 8" footprint weighing less than 7 pounds. This is the portable model that comes in the white housing, as shown, along with the Lustr®+ array.
It taps into the power of the x7 Color System™, which combines up to seven LED colors onto one unit. The Lustr+ is a most flexible array, offering nearly limitless color possibilities, from adjustable whites and subtle tints to vibrant, bold colors sure to make an impact in any lighting installation.
ETC Selador Desire D22 Features:
- Lustr+ array: Optimized array with six colors plus, high intensity white LEDs to create an ideal wash fixture for full range color
- Portable: Standard yoke-mount hardware; power lead with Edison connector and DMX in/thru connectors
ETC Selador Desire D22 Specifications:
- General:
- Manufacturer code: SELD22L-1
- 22-LED color-mixing wash fixture
- ETL listed general purpose lighting
- IP20-rated for indoor use
- DMX in/thru for easy setup (no DMX thru on D22 Track)
- User-friendly control interface with multiple modes and fixture settings
- Permanent power input cable connected
- Physical:
- Rugged die-cast all-metal housing
- Easy access slots for secondary lenses and 5.5” accessories
- Hanging yoke standard
- DMX512 in/thru via five-pin XLR connectors
- Electrical:
- 100VAC to 240VAC 50/60Hz universal power input
- 20 fixtures total per circuit when used with R20
- Relay Module or Unison Echo Relay Panel. Consult breaker trip curves when used with other equipment
- Requires power from a non-dim source
- Inrush:
- -- 120V: 17A
- -- 240V: 25A
- LED:
- 50,000-hour LED life (50,000 hours at 70% intensity)
- 22 Luxeon® Rebel LED emitters
- Color:
- Exclusive x7 Color System seven-color LED array
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Broad-spectrum color interacts seamlessly with conventional sources
- Exclusive, optional red-shift option emulates tungsten dimming performance
- Optical:
- Primary field angle of 21°
- Secondary lenses available for multiple beam spread options
- Refer to accessories charts for lenses available
- Control:
- Multiple control options, including RGB, strobe, and console-free Primary/Secondary mode
- 15-bit virtual dimming engine provides smooth, high-quality theatrical fades, and minimizes color shift during dimming
- RDM functionality for address and setting changes
- Thermal:
- Ambient operating temperature of 32°F to 104°F (0°C to 40°C)
- Active electronic thermal management for droop-free operation
- Noiseless, fan-free convection cooling for acoustically sensitive installations
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
