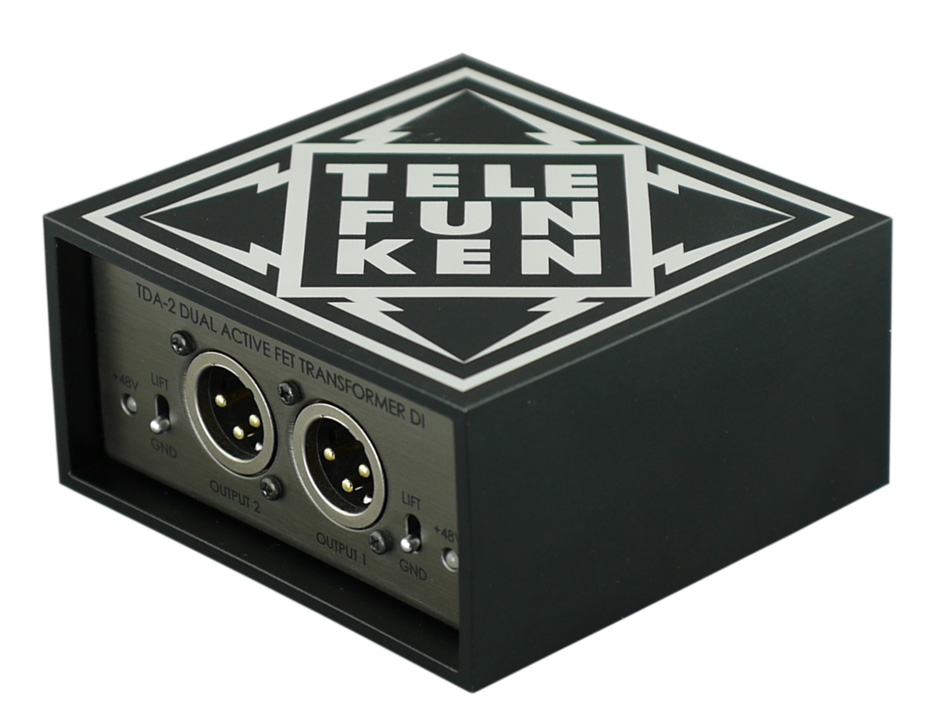

Telefunken Elektroakustik TDA-2
Dual Unit, Active Stereo DI Box

OUR PART #:  TDA-2

The Telefunken TDA-2 is a dual unit.
Learn More
Our Price: $349.00
List Price: $399.00
You save 13%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Telefunken Elektroakustik TDA-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Telefunken TDA-2 is a dual unit. This active FET direct box has a design that utilizes top quality components in a modern take on classic circuitry to give you a full, rich character that both complements and retains the natural tone and feel of your instrument. The TDA circuit employs discrete Class-A FET circuitry coupled with a high quality transformer that provides the perfect balance between clean, high headroom performance and warm, saturated tone with vibe.

The heart of the design is a custom-wound output transformer by OEP/Carnhill, made in the UK. The circuit board features gold plated traces and is entirely hand-assembled with through-hole components, providing more secure and reliable connections than typical surface mount circuitry. The frequency response of the circuit is +/- 2dB from 20 Hz to 70 kHz, with extremely low distortion and self-noise. Each individual unit is manually tuned by hand for the lowest distortion figure possible. High input impedance prevents the loading down of passive pickups. This careful attention to detail and high quality component choices results in a direct box with a harmonically rich low end and a detailed, open high-end clarity.

The circuit is housed in an extremely durable extruded aluminum enclosure with recessed switches and connectors. This rugged construction is virtually indestructible, able to easily withstand the wear and tear of gigging. Each channel features two heavy duty metal toggle switches to engage a -15 dB pad and ground lift. The circuit is powered from standard +48V phantom power with an LED indicating when it is powered. The TDA-2 unit features two independent DI channels with separate controls, giving you the ability to run two instruments through one footprint on stage or in the studio.

While some direct boxes focus on providing sterile, ultra-clean gain, they often leave the instrument devoid of any soul or character. Conversely, some DI's artificially hype too much low-end and overemphasize harmonic distortion, resulting in a tubby and undefined output. The Telefunken active DI avoids these common design pitfalls and delivers a new standard in reliability and performance for direct boxes.

Telefunken TDA-2 Features:

  • Custom-wound OEP/Carnhill transformer, made in the UK
  • Rugged aluminum construction
  • Class-A discrete FET circuitry
  • Recessed switches and connectors for protection
  • +48V phantom powered with LED indicator
  • -15 dB pad switch
  • Ground lift switch
  • 100% through-hole components
  • Amphenol connectors
  • WIMA, Nichicon, and Panasonic capacitors
  • 1% 1/4W metal film resistors
  • 3-year warranty

Telefunken TDA-2 Specifications:

  • Channels: 2
  • Transformer: Custom-Wound OEP/Carnhill Transformer
  • Frequency Range: 20 Hz - 70 kHz, +/- 2 dB
  • Noise: -116 dBV (unweighted)
  • Input Impedance: 1 M Ohm
  • Output Impedance: < 100 Ohm
  • Power Requirement: +48 VDC Phantom Power
  • Current Draw: 3.8 mA
  • Weight: 459 g (1.01 lb)
  • Dimensions (L x W x H): 100 x 100 x 50 mm
  • Max Input: +1 dBV (no pad), +17 dBV (with pad)
  • Input Connection: 1/4" Jack
  • Output Connection: XLR Output, 1/4" Thru
