Neutrik NLT8FP-BAG
speakON STX Series 8-Pole Female Chassis Connector

OUR PART #:  NLT8FP-BAG

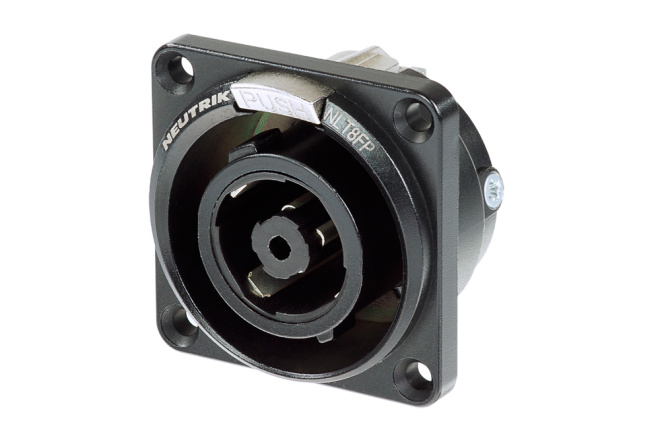

Neutrik's NLT8FP-BAG is an 8-pole female chassis connector with solder contacts in a black-chrome metal housing.
Learn More
Our Price: $17.88
List Price: $20.07
You save 11%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NLT8FP-BAG
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Neutrik's NLT8FP-BAG is an 8-pole female chassis connector with solder contacts in a black-chrome metal housing. This speakON STX Series connector is designed for heavy-duty amplifier/loudspeaker applications such as professional touring.

Neutrik NLT8FP-BAG speakON STX Series Chassis Connector Features:

  • Extremely robust metal housing designed for harsh and demanding environment
  • Well-suited for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio signal with 50% duty cycle
  • Uses precise "Quick Lock" system
  • Mates with all currently available speakON products

Neutrik NLT8FP-BAG speakON STX Series Chassis Connector Specifications:

  • Electrical Specifications:
    • Contact resistance: < 2 mOhms (after lifetime)
    • Dielectric strength: 3 kVdc (peak)
    • Insulation resistance: > 10 GOhms
    • Rated current per contact: 40 A rms continuous
    • Rated current per contact: 50 A audio signal, duty cycle 50%
    • Rated voltage: 250 V (insulation)
    • Attention: speakON is NOT to be used as an AC mains or power supply connector
  • Mechanical Specifications:
    • Lifetime: > 5000 mating cycles
    • Wiresize: 6 mm²
    • Wiresize: 10 AWG
    • Locking device: Quick Lock
    • Chassis shape: square G-size flange
    • Layout: four thru holes
  • Material Specifications:
    • Contact plating: 4 µm Ag
    • Contacts: Spring copper
    • Insert: Polyamide (PA 6 30 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1) black chrome
  • Environmental Specifications:
    • Flammability: UL 94 HB
    • Protection class: IP 52 (mated condition)
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30°C to +80°C
