Chief LVS1UP ConnexSys Video Wall Portrait Mounting System with Rails

OUR PART #: LVS1UP MFR #: LVS1UP

Copied to clipboard

Chief's LVS1UP is a ConnexSys Video Wall Mounting System that's engineered to solve common video wall challenges of speed, alignment, rigidity, and serviceability. ...Read more

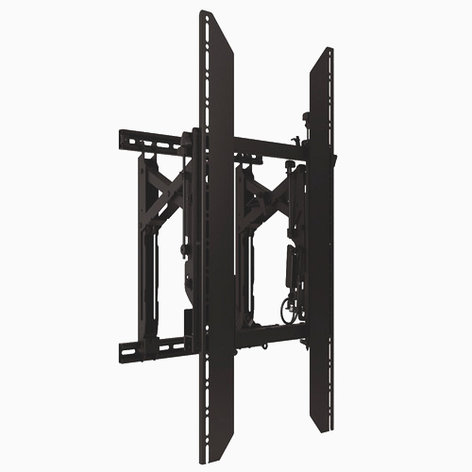

Chief LVS1UP ConnexSys Video Wall Portrait Mounting System With Rails Image 1
Chief LVS1UP ConnexSys Video Wall Portrait Mounting System With Rails Image 2
Chief LVS1UP ConnexSys Video Wall Portrait Mounting System With Rails
Our Price: $828.00
List Price: $1,035.00
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$23/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Chief's LVS1UP is a ConnexSys Video Wall Mounting System that's engineered to solve common video wall challenges of speed, alignment, rigidity, and serviceability. The ConnexSys Video Wall Mounting System features provides you with the ability to level each row once by employing strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

The LVS1UP ConnexSys Video Wall system portrait mount comes with rails for each mount.

Chief LVS1UP Features:

  • Speed:
    • Hang units on a single strut channel for quick row leveling
      • No need for horizontal spacers
      • Vertical measurement is simply the height of the display to the next rail
      • Compatible with most 1-5/8" sizes of channel strut
    • Reduces installation time - especially for XL and recessed configurations
    • Tool-free ClickConnect™ latching secures displays
    • PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount
  • Alignment:
    • PowerZone™ Adjustments
    • Height adjustment ±1" on each interface
    • Tilt adjustment at single pivot point, protects displays from twisting
    • Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations:
      • Both sides adjust independently, compensating for imperfections inthe wall
      • Walls can be out of alignment by up to 2" (horizontally)
    • 3 levels of lateral adjustment:
      • 1. Mount left/right along rail
      • 2. Interface left/right along mount
      • 3. Lock in lateral guide for fine-tune adjustment using turn knobs,protecting screens from potential collisions
    • Rigidity:
      • Rigid frame keeps displays where you set them, even after extending for service
      • Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
    • Serviceability:
      • RapidDraw™ Display Release
        • Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
        • Protects displays by not requiring an aggressive push to release/pop-out
        • Releases only on demand, preventing accidental pop-outs
        • The 10 ft (304.8 cm) cord can be set up to pull for release from any 90° angle
      • Kickstand provides 20° of bottom tilt access
    • Miscellaneous:
    • Security - pad lock ¼" shank diameter
    • Safety tested
    • Universal interface
    • Each mount comes out of the box with adjustments set in the exact same position

Chief LVS1UP Specifications:

  • Certifications: TÜV Certified, UL Listed
  • Color: Black
  • Manual Height Adjustment: ± 1"
  • Maximum Extension: 13.4" (34.0 cm)
  • Minimum Depth: 4"
  • Mounting Pattern Compatibility (Universal Versions): 200 x 100 - 800 x 400mm
  • Solution Type: Universal
  • Tilt: + 4.0°, -2.5°
  • Orientation: Portrait
  • Physical:
    • Overall Dimensions (HxWxD): 32.5" x 19.5" x 4.1" (826 x 495 x 104 mm)
    • Shipping Weight: 42.00 lbs
    • Typical Screen Sizes: 40" - 80"
    • Weight Capacity: 150 lbs (68 kg)

Note:

To ensure this mount works with your specific equipment, please consult your Sales Pro.
