Cardioid Condenser Handheld Transmitter Microphone, 5NC Version

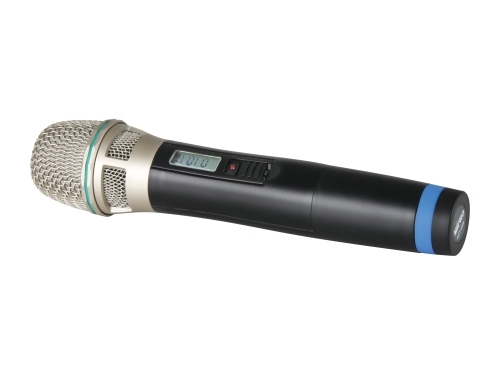

The MIPRO ACT-32H is a cardioid condenser handheld transmitter.
Learn More
Our Price: $159.00
List Price: $180.00
You save 12%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The MIPRO ACT-32H is a cardioid condenser handheld transmitter. This microphone features unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. It also has a robust, lightweight plastic housing.

MIPRO ACT-32H Features:

  • Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
  • Premium condenser capsules exhibit high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality and withstand maximum SPL.
  • Reversible end-cap allows power on/off switch being locked to avoid accidental power-off during performance.
  • Impact-resistant battery compartment holds 2 AA batteries.
  • Backlit LCD displays various parameters and status.
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Patented “built-in” antenna design.
  • Interchangeable colored rings for microphone channel identification on stage.
  • High-efficiency circuitry design provides more than 16 hours of operation from 2 AA batteries (depending on the battery quality).

MIPRO ACT-32H Specifications:

  • Frequency Range: UHF 480 – 934 MHz, operates 542-566 MHz
  • Bandwidth: 24 MHz
  • Oscillation Mode: PLL Synthesized
  • Channel Set-Up: ACT Sync
  • RF Output Power: 10mW / 30mW (switchable)
  • Spurious Emissions: < -55 dBc
  • LCD Display: Group, Channel, Battery status & error codes
  • Max. SPL: 140 dB SPL
  • Battery Type: 2 AA alkaline
  • Operating Time: Min. 12 hours (Low Power)
  • Current Consumption: Approx. 92 mA
  • Dimensions (Ø × L): 51 × 234 mm / 2 × 9.2"
  • Net Weight: Approx. 251 g / 8.9 oz
