CAD Audio WX1610G
UHF Wireless Body Pack Mic System (Includes E19 Earworn, WXG

OUR PART #:  WX1610G

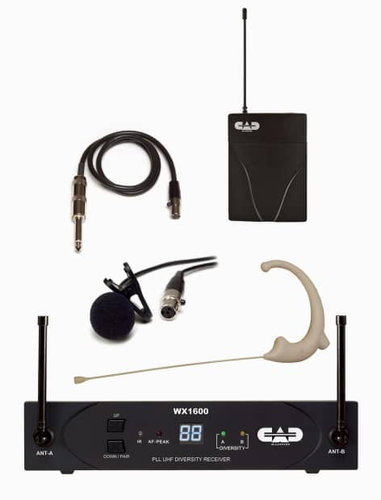

The CAD Audio WX1610G  is a UHF wireless bodypack microphone system that includes the E19 earworn, the WXGTR, and the WXLAV.
Learn More
Our Price: $349.00
List Price: $499.00
You save 30%!
Write the first review.
CAD Audio WX1610G
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The CAD Audio WX1610G  is a UHF wireless bodypack microphone system that includes the E19 earworn, the WXGTR, and the WXLAV.

The StageSelect WX1610 Wireless Bodypack System with Lavalier, Earworn Mic and Guitar Cable from CAD Audio is for capturing audio. It is used in various venues for vocal and speech applications such as for singers, public speakers, stage and theater performances, and more. It features a frequency response of 40Hz to 15kHz and a dynamic range of 109dB. This wireless bodypack system features 100-channel UHF frequency-agile diversity reception and offers connectivity with a minimal of multipath interference.

The Equitek E19 ergonomic and behind the ear microphone is designed with a replaceable cable and provides intelligibility in speech. It also provides natural and accurate reproduction in the most demanding environments such as in houses of worship, presenters or theater performers.

The WX1610 system is built with ScanLink technology to provide instantaneous and automatic channel configuration. There is an automatic code encoded squelch to help prevent and eliminate unauthorized interference. AA batteries supply over 15 hours of battery life. The bodypack transmitter has SoftTouch On and Mute switches with multi-color LED indicators to monitor mute status and battery life. The receiver is built with a metal chassis to provide a durable and shielded enclosure. It features 1/4" and XLR outputs to connect to a mixer source. A 1/4" to TA4 guitar cable for the bodypack, rack ears and joining kit are also included.

CAD Audio WX1610G Features:

  • Diversity Operation: Receiver features 2 antennas to scan for the strongest signal to minimize multipath interference
  • ScanLink Technology: Features instantaneous scan of the RF environment and automatic link to the transmitter and receiver
  • CADLock: Provides automatic tone encoded squelch to eliminate unauthorized interference
  • Frequency Band: Band G is 542 to 564 MHz
  • SoftTouch Switches: Features switches with multicolor LED indicators of On/Mute and Low Battery
  • Long Battery Life: AA batteries provide over 15 hours battery life
  • Metal Chassis: Metal chassis receiver provides a durable shieldedenclosure with included rack ears for mounting

CAD Audio WX1610G Specifications:

  • Receiver Frequency Range: G band 542 to 564 MHz
  • Audio Frequency Response: 40 Hz to 15 kHz
  • Dynamic Range: >109 dB
  • Outputs: 1 x 1/4” (6.3 mm) 1 x XLRM
  • Bodypack Transmitter Frequency Response: 40 Hz to 15kHz
  • Transmit Power:10 mW
  • Batteries and Power: 2 x AA batteries with >15 hoursbattery life
  • Connector: TA4F (instrument pin 3, microphone pin 4)
  • Packaging Info:
  • Package Weight: 4.15 lb
  • Box Dimensions: (LxWxH) 14.882 x 12.598 x 3.071”

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
