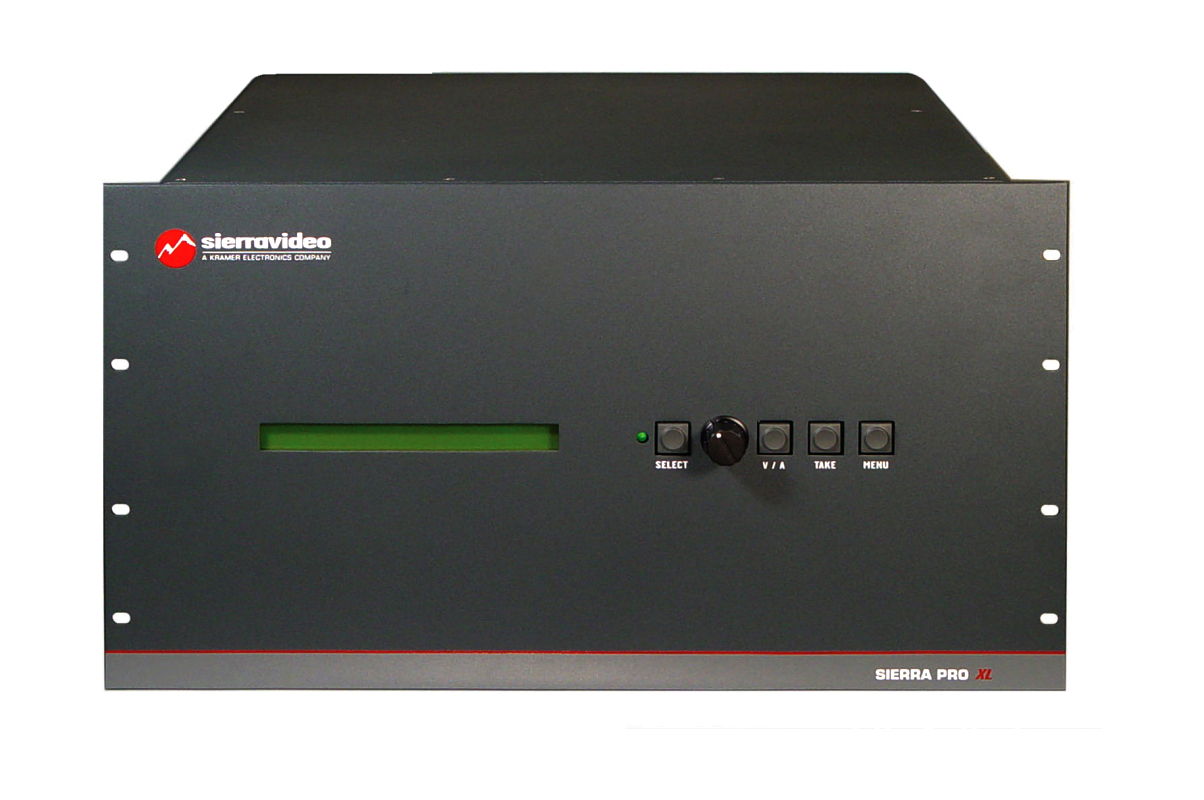

Sierra Video Systems Pro XL 1616V5S
16 x 16 Five-Channel 450MHz @ -3dB Wideband Video + Stereo Audio 6RU Routing Switcher

OUR PART #  1616V5S-XL

Call for price! Not available online.
List Price: $15,220.00


The Sierra Video Systems Pro XL™ 1616V5S's advanced design allows for higher bandwidth routing along with very low crosstalk. Its frame is a compact 6RU (10.5") and it provides control of multiple signal types including composite, S-Video, YUV, RGBS, RGBHV, Y/C, and analog HD. It accommodates balanced or un-balanced audio, AFV, or Breakaway split routing which offers RGB muting for enhanced performance with projectors and displays. Standard features include IP control, RS-232 serial control and a front local control panel. Remote control options are available (sold separately).

Sierra Pro XL Series 16
The Sierra Pro XL series component analog routing switchers offers high-bandwidth 3-, 4-, or 5-channel (RGB + HV) and stereo audio (S) matrix routing capability in a line of compact frames. The series was engineered specifically for presentation environments such as corporate boardrooms, churches, live staging events, and universities.

These durable routers offer RGB/HV and Stereo Audio in the same compact frame. Moreover, these rugged frames can be populated from 1 to 5 video and pulse sync channels. They've been designed for high-bandwidth, along with very low crosstalk. Numerous other features include audio gain adjustment for Inputs and Outputs via standard front control panels or through a control serial port and optional redundancy. This system accommodates balanced or un-balanced audio, AFV, or breakaway split routing which allows RGB muting for seamless performance to projectors and displays. This routing switcher family is optimized for multiple signal type control within the same frame. Composite, S-video, YC, YUV, RGBHV, analog HD, and audio are all easily controlled with one small Sierra Pro frame. Sierra Pro's 450MHz bandwidth is compatible with most high-resolution sources.

These units also feature a user-friendly, color-coded (RGB) rear panel layout for easy installation, plus their own unique motherboard configuration options (contact your Sales Pro for more information). Frames also include a standard front local control panel, serial control using a RS-232/422 serial interface, and an RJ-45 Ethernet port, with up to 5 simultaneous users supported by SVS software and by all major third-party control systems.

Sierra Video Systems Pro XL 1616V5S Includes:

  • Video Frame
    • Video and Audio (contained in one frame)
    • Power Supply
    • Video Motherboard
    • Audio Motherboard
    • Local Control Panel
  • Accessory Kit
    • User Manual
    • 5-pin Audio Connectors
    • Fuses
    • Power Cord
    • Software Disk
    • Rack "ears"

Sierra Pro XL 1616V5S Features:

  • (3) Video & (2) Sync Channels
  • Digital Volume Control
  • 450MHz bandwidth at -3dB with very low crosstalk
  • Up to and exceeding 1600 x 1200 @ 75Hz resolution capability
  • Matrix Mapping Universal Breakaway™ Switching for multi-format use
  • Adjustable audio gain and attenuation with no "zipper" effect
  • Video Follow Sync™ Switching design eliminates glitches during switching
  • Room grouping of inputs for flexible configuration in multi-room applications
  • Plug-in boards for flexible frame signal configuration by the factory
  • Color-coded rear panel
  • Front panel control Interface with LCD display
  • IP and RS-232 control
  • Full range of remote control panels available
  • Redundant power supplies available

Sierra Pro XL 1616V5S Specifications:

  • Manufacturer Model #: 1616V5S–XL
  • Wideband Video:
    • Bandwidth: 450MHz @ -3dB
    • Video Gain: Unity
    • Crosstalk: -80dB @ 1MHz, 47dB @ 100MHz, -30dB @ 150MHz
    • Switching Speed: Deterministic
    • Input:
      • Video Level: 0.2V to 5V p-p
      • Impedance: 75 Ohm
      • Return Loss: < -30dB @ 5MHz
      • Connector Type: BNC
    • Output:
      • Video Level: 0.2V to 5V p-p
      • Impedance: 75 Ohm
      • Return Loss: < -30dB @ 5MHz
      • Connector Type: BNC
  • Analog Stereo Audio:
    • Voltage Gain: Unity, +/- 0.75dB max (+/- 0.25 typical)
    • Input Adjust Range: +20.5dB to -8dB
    • Output Adjust Range: +15dB to -59.5dB and fully off (MUTE)
    • Frequency Response: 20Hz to 20KHz +/- 0.5dB (typical -3dB @ 120KHz) (unity gain)
    • Dynamic Range: 96 dB (20-20KHz unweighted) (unity gain)
    • Crosstalk (all inputs hostile): < -80dB @ 1KHz (unity gain), < -60dB @ 10KHz (unity gain)
    • THD (20 to 20 KHz): < 0.025% (20Hz - 20Khz @ +4dBu) (unity gain)
    • IM (20 to 20 KHz): < 0.025 SMPTE-DIN @ +4dBu (unity gain), < 0.01% CCIF @ +16dBu (unity gain)
    • Input:
      • Maximum Source Level: +24dBu
      • Impedance: > 20K
      • Connector Type: 5-pin terminal block for balanced or unbalanced operation
    • Output:
      • Maximum Source Level: +24dBu balanced, +18dBu unbalanced
      • Impedance: < 50 Ohm
      • Connector Type: 5-pin terminal block for balanced or unbalanced operation
  • Control:
    • Serial: General Purpose 9-pin-D, each switchable RS-232 or RS-422 x 1, 9600, 38400, 115200 baud
    • Serial Protocols: SVS host, simple Kramer, and select others (contact your Sales Pro for more information)
    • Ethernet: 10/100 Base-T, full duplex, RJ-45 connector
    • Ethernet Protocols: ARP, ICMP, TCP/IP, Telnet, HTTP
    • Web Server: For configuration and control
    • Redundant Control Processor: N/A
    • Control Panels: Supports SCP programmable control panels, XY & single bus control panels
  • Form Factor:
    • Dimensions: 19" W x 10.5" H x 19" D
      Note: Mounts in standard 19" rack. Depth measurements do not include front panel hardware or rear cabling
    • 6RU (Rack Unit Size/Frame)
  • General:
    • Power: 90 VAC->240 VAC 50/60 HZ (<150 Watts) auto-detecting
    • Redundant Power Supply: Optional (sold separately)
    • Environmental:
      • Storage Temperature: -40° to +150° F
      • Operating Temperature: 30° to 100° F ambient
      • Humidity: 10% to 90 % non-condensing

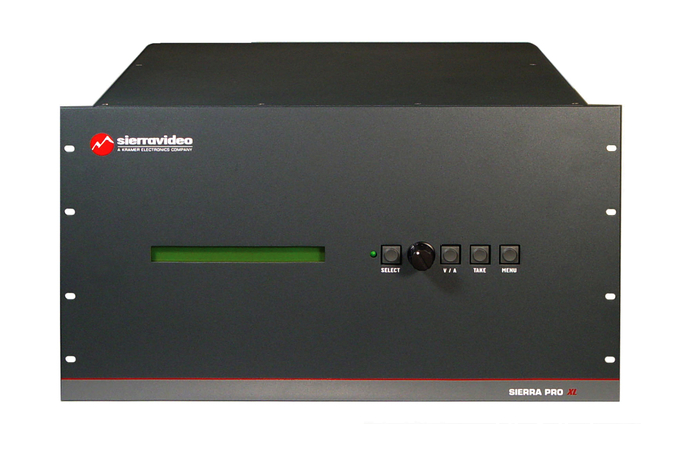

Sierra Video Systems Pro XL 1616V5S
