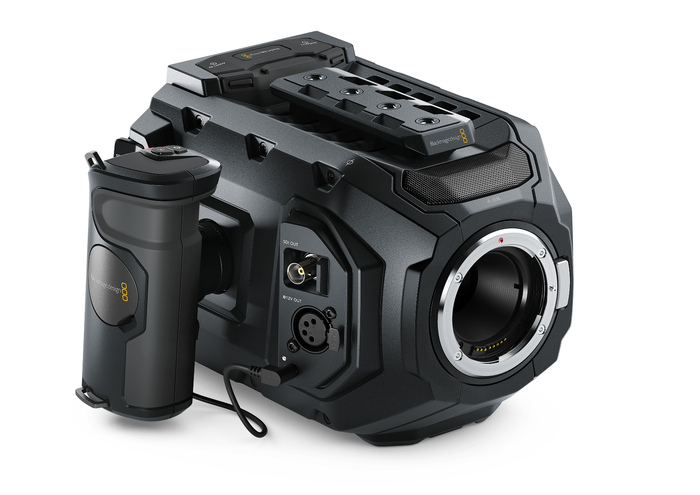

The Blackmagic Design URSA Mini 4.6K EF is a lightweight, miniaturized URSA that features an incredible 4.6K Super 35 image sensor with a huge 15 stops of dynamic range. Its super compact and lightweight design is perfectly balanced for handheld use and comfortable enough for all day shooting. So you get a handheld camera with higher resolution and better dynamic range than most Super 35mm film. URSA Mini can shoot up to 60 frames per second, has a super bright 5-inch foldout viewfinder, dual RAW and ProRes recorders, and more. This particular model featues an EF lens mount.
Designed to be used on feature films, television shows, commercials, indies, documentaries, music videos and more, the stunning quality of its 4.6K sensor with 15 stops of dynamic range lets you capture epic cinematic shots, while its compact size is ideal for solo shoots or smaller crews. You can easily customize URSA Mini with high quality cinema lenses, rails, matte boxes and more. Its optional shoulder mount kit includes a quick-release mounting plate so you can go from handheld to shoulder or tripod in seconds, making it perfect for "run and gun" shooting situations. And, because it's an URSA, everything you need is built right in. It's the handheld Super 35mm digital film camera that you can use anywhere.
Blackmagic URSA Mini is fully customizable so you can create a rig that fits your specific needs! Add accessories like the Blackmagic URSA Viewfinder and Blackmagic URSA Mini Shoulder Kit (sold separately), or choose from hundreds of third party accessories (sold separately). URSA Mini comes with 9 standard ¼" threaded mounting points on the top and bottom so you can mount it directly to a tripod, as well as add other accessories, such as rails, sliders, matte boxes, microphones, ring lights, batteries, and more. Whether you're assembling a feature film rig or outfitting the camera for an ENG style shoot, URSA Mini offers all of the mount points and connections you'll need.
URSA Mini operates at a resolution and dynamic range that goes well beyond that of traditional motion picture film. Its 4.6K image sensor captures up to 4608 x 2592 pixels—bigger than full DCI 4K. The sensor is equipped with a rolling shutter up to 60 frames per second with 15 stops of dynamic range. Onboard refrigeration cooling ensures maximum dynamic range so you get incredibly clean images with amazing detail in both the dark shadows and bright highlight areas of the picture.
With URSA Mini, you can shoot at high frame rates and then play back at the edit frame rate so you get smooth slow motion video. Just set the sensor frame rate to get different types of slow motion effects. It can capture full resolution 4.6K recordings at up to 60 frames per second (fps) and up to 120 fps in regular 1080 HD.
Blackmagic Design URSA Mini 4.6K EF Includes:
- Blackmagic URSA Mini 4.6K EF body
- Turret Dust Cap
- Side Handle with LANC Cable and strap
- Power supply
- SD card with software and manual
- DaVinci Resolve Studio USB dongle
Blackmagic Design URSA Mini 4.6K EF Features:
- Adjust settings and monitoring with the touch of your finger using its high resolution 5-inch fold out monitor. This provides you with easy access to the revolutionary URSA camera interface.
- Ursa Mini features multiple connections such as 12G-SDI out, HD-SDI monitoring out, 2 LANC inputs, balanced XLR audio with phantom power, timecode in, reference input, and much more.
- an incredible 8 times faster than regular HD-SDI, 12G-SDI is fast enough for Ultra HD video at up to 60 fps, all over a single regular SDI cable, offering compatibility with all of your existing HD and Ultra HD equipment so you can interface with things like ATEM live production switchers, on-set monitors, decks and more
- The onboard touchscreen makes it remarkably simple to set up and enter metadata for tagging clips. Metadata is saved directly within the video files so you don’t have to worry about managing extra "sidecar" files.
- URSA Mini is equipped with a 4-pin XLR industry standard power connector that works with 12V to 30V external power supplies. So it’s easy to use the camera with all of your existing power supplies and batteries.
- URSA Mini includes the full version of DaVinci Resolve Studio for Mac and Windows for editing, color grading, media management, mastering and delivery. DaVinci Resolve can easily handle the 12-bit log RAW images from URSA Mini so you can take advantage of URSA Mini’s amazing image quality and wide dynamic range. DaVinci Resolve has advanced, multi layer timeline editing with powerful trimming tools, plus the industry’s leading suite of creative grading tools.
Blackmagic Design URSA Mini 4.6K EF Specifications:
- Image Capture:
- Sensor Size: 25.34mm x 14.25mm (Super35)
- Shooting Resolutions:
- 4608 x 2592
- 4096 x 2304 (4K 16:9)
- 4608 x 1920 (4K 2.4:1)
- 4096 x 2160 (4K DCI)
- 3840 x 2160 (Ultra HD)
- 3072 x 2560 (3K Anamorphic)
- 2048 x 1152 (2K 16:9)
- 2048x1080 (2K DCI)
- 1920 x 1080
- Frame Rates: Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
- Dynamic Range: 15 stops
- Focus: Focus button turns on peaking, auto focus available using compatible lenses.
- Iris Control: Iris button automatically adjusts the lens iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
- Lens Mount: EF Mount
- Screen Dimensions: 5” - 1920 x 1080
- Screen Type: LCD capacitive touchscreen
- Metadata Support: Automatic camera data and user data such as shot number, filenames, and keywords.
- Controls: Touchscreen menus on 5” screen.
- Push buttons for other controls. 2 assignable shortcut keys.
- Microphone: 2 x built-in cardioid microphones for stereo recording with -15dB pad and low cut filter.
- Speaker: 1 x mono speaker, enabled in playback mode when headphones are not used.
- Storage Features:
- Storage Rates:
- 4608 x 2592
- CinemaDNG RAW - 513MB/s
- CinemaDNG RAW 3:1 - 180 MB/s
- CinemaDNG RAW 4:1 - 135 MB/s
- 3840 x 2160
- Apple ProRes 444 XQ - 250 MB/s
- Apple ProRes 444 - 165 MB/s
- Apple ProRes 422 HQ - 110 MB/s
- Apple ProRes 422 - 73.6 MB/s
- Apple ProRes 422 LT - 51 MB/s
- Apple ProRes Proxy - 22.4 MB/s
- 1920 x 1080
- Apple ProRes 444 XQ - 62.5 MB/s
- Apple ProRes 444 - 41.25 MB/s
- Apple ProRes 422 HQ - 27.5 MB/s
- Apple ProRes 422 - 18.4 MB/s
- Apple ProRes 422 LT - 12.75 MB/s
- Apple ProRes Proxy - 5.6 MB/s
- Note: Storage rates based on 30 fps.
- Storage Type:
- 2 x CFast 2.0
- Note: Please refer to either the Manual or contact your Sales Pro for more information.
- Recording Formats:
- Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 with film dynamic range at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3072 x 2560, 2048 x 1152 and 2048 x 1080
- Apple ProRes 3840 x 2160 and 1920 x 1080 with either film or video dynamic range
- Connections:
- SDI Video Output:
- 1 x 12G-SDI BNC 10-bit 4:2:2
- 1 x 3G-SDI BNC 10-bit 4:2:2
- SDI Video Input: 1 x 12G-SDI BNC 10-bit 4:2:2
- Ref/ Timecode Input: 1 x BNC reference or timecode input with automatic detection
- Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support.
- SDI Audio Output: 2 channel
- Headphones: 3.5mm stereo headphone jack
- Remote Control: 2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
- Computer Interface: USB 2.0 Mini-B port for software updates.
- Standards:
- SDI Compliance:
- SMPTE 292M, SMPTE 424 Level B, Draft
- SMPTE 2081-1, Draft SMPTE 2082-1
- SDI Audio Sampling: 48 kHz and 24 bit
- Software Operating Systems:
- Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later.
- Windows 8.1 or Windows 10.
- Software Included:
- DaVinci Resolve Studio grading software including Resolve USB dongle for Mac OS X and Windows.
- Blackmagic Media Express software.
- Blackmagic Disk Speed Test.
- Blackmagic Camera Setup.
- Power Requirements:
- External Power Input:
- 1 x 4-pin XLR port for external power or battery use.
- 1 x 12-pin molex connector on rear battery plate.
- Custom V-mount battery plate with D-tap
- +12V regulated output from camera
- External Power Output
- 1 x 12V output using 4-pin XLR for powering external accessories such as EVF.
- 1 x 12V regulated output from rear molex 12-way connector.
- Power: Rear camera mount compatible with industry standard V-mount or Gold Mount battery plates.
- Environmental Specifications:
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
- Warranty: Product Warranty: 12 Month Limited Manufacturer's Warranty.
