Product Overview

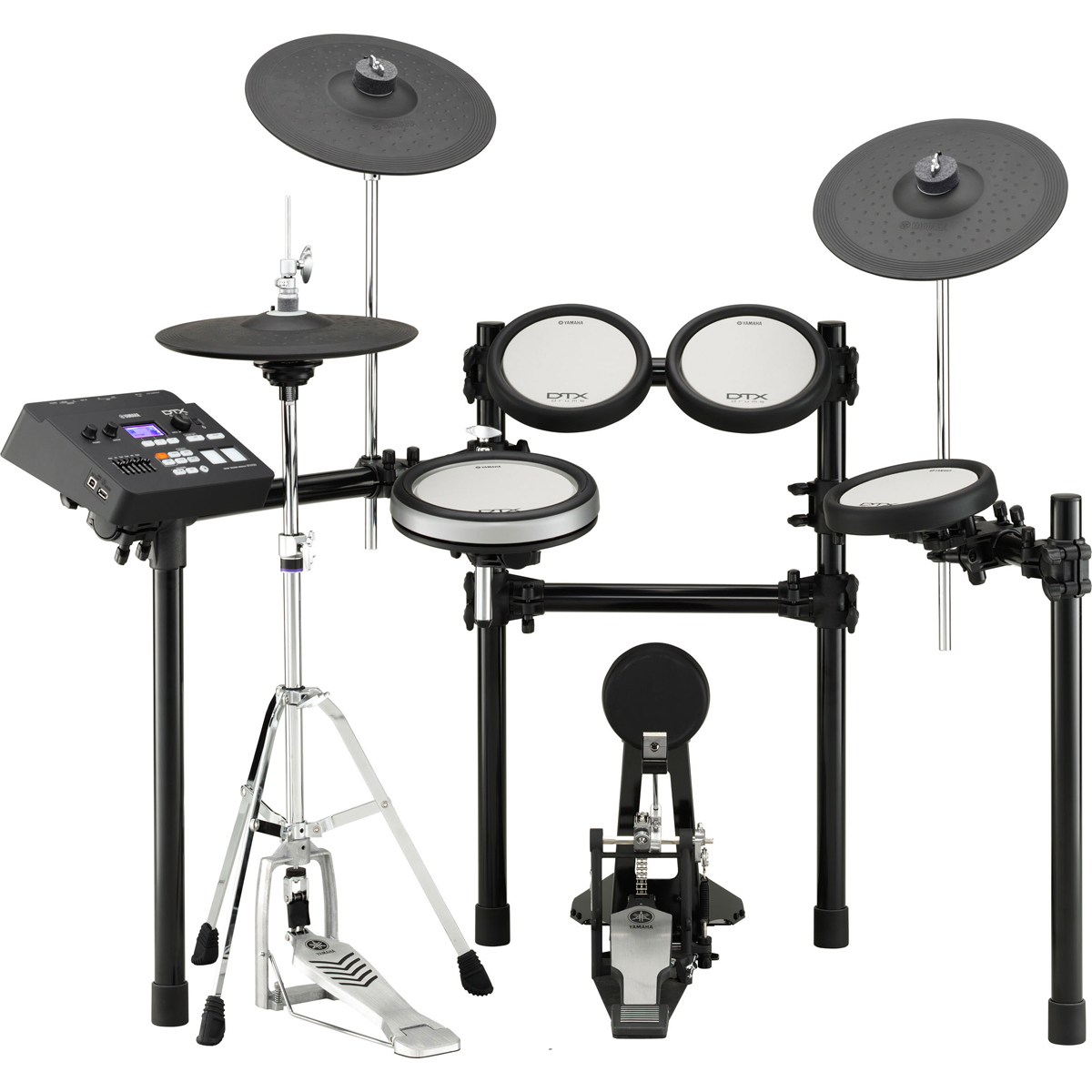

Yamaha's DTX700HWK comes equipped with all DTX-PADs for snare, toms and floor tom, real hi-hat controller, and 3-zone cymbals. The DTX700 module helps players develop solid timing while the 64 MB Flash-ROM allows access to your own samples to play along with. With the internal performance recorder and 2 USB ports for storage the DTX700 is a powerful tool for triggering samples and sequences on stage or recording high-quality drum tracks at home and in the studio.
Yamaha DTX760HWK Includes:
- DTX700 Drum Trigger Module
- DTP903 Pad Set 1
- (2) PCY135 cymbals
- PCY155 ride
- RHH135 hi-hat
- KP100 kick pedal
- (2) CH-750 cymbal arm
- SS-662 snare stand
- DTP904 Pad Set 2
- XP120SD snare
- XP120T floor tom
- (2) XP100T toms
- (2) CH-755 cymbal stand
- HS-740A hi-hat stand
- (2) WS-860 tom stand
- PS940 percussion stand
- MAT1 mounting plate
Yamaha DTX760HWK Features:
- DTX-Pads for Quiet Practice
- DTX700 Drum Trigger Module for high quality acoustic drum, cymbal, and percussion voices
- Import up to 64MB of your own favorite sounds
- Professional 3-zone Cymbal Pads
- Hi-hat system with dual-zone trigger pad
- Audio Input for connecting an external CD or MP3 player
Yamaha DTX760HWK Specifications:
- Configurations
- DTX-PAD: Snare, Toms
- Snare diameter: 8"
- 3-zone pads: Snare
- Realtime control knob: No
- Real Hi-Hat System: Yes
- Hi-Hat stand: HS650A
- 3-zone cymbals: Crash, Ride
- Trigger Module: DTX700
- Rack System: RS500
- Pad Set: DTP700P (PAD SET) includes: XP80, XP70 x 3, KP65, DTP700C (PAD SET) includes: PCY135 x 2, RHH135, HS650A
- Size/Weight (Trigger Module)
- Dimensions: 10-29/32" W x 8-25/64" H x 2-3/4" D (277 x 213 x 95 mm)
- Weight: 3.31 lbs (1.5 kg)
- Tone Generator
- Maximum Polyphony: 64 notes
- Voices:
- Drum and percussion: 1,268
- Melodies: 128
- Effects
- Reverb: 6
- Chorus: 6
- Variation: 42
- Kit EQ: 4 band
- Master EQ: 3 bands
- Drum kits
- Preset: 50
- User: 10 (all of which may be edited and overwritten)
- Sequencer
- Note Capacity: Approx. 152,000 notes
- Note Resolution: 480 ppq (parts per quarter note)
- Song recording type: Real-time replace
- Song tracks: 1 track
- Songs:
- Demo: 2
- Practice: 44
- Pad: 17
- User: 30 * all of which may be edited and overwritten
- Sequence formats: Proprietary, SMF format 0
- Click
- Tempo: 30 to 300 BPM, Tap Tempo supported
- Beat: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
- Timing: Accents, Quarter note, Eighth note, Sixteenth note, Triplet
- Training Functions: Measure break, Groove check, Rhythm gate
- Other:
- Connectors: USB TO DEVICE/TO HOST, OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger Input 1 to 8, 11 (Standard stereo phone, L: Trigger Input, R: Rim Switch), Trigger Input 9 and 10 (Standard stereo phone, L: Trigger Input, R: Trigger Input), HH-KICK (Standard stereo phone) , HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), MIDI IN/OUT
- Accessories: Power Adapter (PA-150, or an equivalent), Module holder, Module holder fastening screws x 4, Owner's Manual, Data List, DVD-ROM (Cubase AI)
- Audio Import
- Samples: 500
- Sample Data Bits: 16 bits
- Sampling Time * Mono/Stereo: 44.1kHz: 23 sec., 22.05kHz: 46 sec., 11.025kHz: 1 min. 32 sec., 5.5125kHz: 3 min. 4 sec.
- Sample Formats: WAV, AIFF
