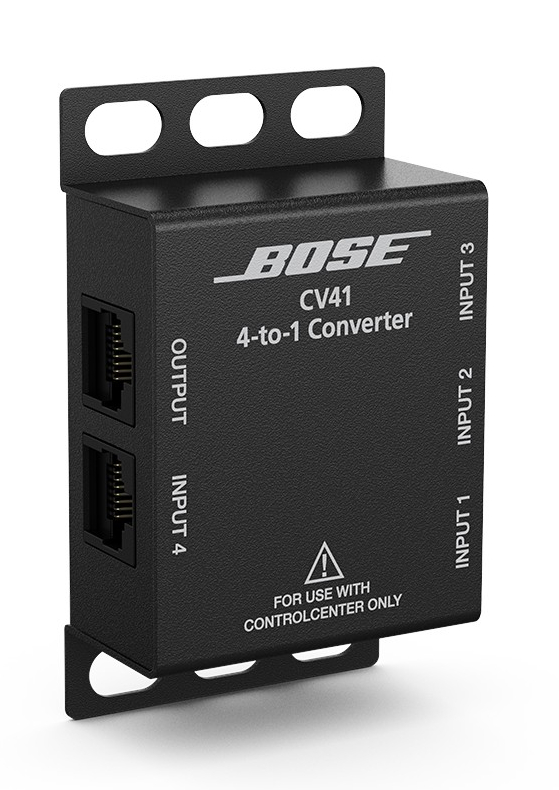

Bose CV41
Control Center 4-to-1 Converter

OUR PART #:  CV41

The Bose CV41 is a 4-to-1 converter.
Learn More

Call for price! Not available online.

Related Products

The Bose CV41 is a 4-to-1 converter. The Bose® ControlCenter CV41 4-to-1 converter simplifies wiring when using multiple ControlCenter CC-1 zone controllers with a PS602 or PS604 PowerShare adaptable power amplifier. The CV41 converter supports up to four CC-1 controllers allowing each CC-1 to homerun to the amplifier.

Applications:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Religious and worship facilities
  • Auxiliary zones

Bose CV41 Features:

  • Homerun to PowerShare amplifiers – Allows up to two CC-1 controllers (PS602) or up to four CC-1 controllers (PS604) to be homerun directly to PowerShare amplifiers.
  • Supports upstream Daisy-Chaining – CC-1 zone controllers can first be daisy-chained prior to connecting to the CV41. Any combination of daisy-chaining and homeruns is supported.
  • Cat 5 wiring –Five RJ-45 ports (TIA/EIA 568B) accomodate four CC-1 inputs and one master output back to the PS602 or PS604 PowerMatch amplifier.
  • Rack-Mountable – The CV41 stands 2U tall and can be attached to standard rack rails for secure mounting

Bose CV41 Specifications:

  • Connectors: Five (5) RJ-45, TIA/EIA 568B wiring standard
  • Settings: None
  • Type: Passive device
  • Cable Requirement: Cat 5
  • Maximum Cable Length: 609 m (2000 ft) from farthest CC-1 to amplifier
  • Color: Black
  • Compatible With:
    • PowerShare PS604 adaptable power amplifier
    • PowerShare PS602 adaptable power amplifier
  • Box Contents: (1) converter, (1) installation guide
