Yamaha DTX920K Electronic Drum Set 5-Piece Kit with TCS Snare and Tom Pads, 3 Cymbals and DTX900 Module

OUR PART #: DTX920K MFR #: DTX920K

Copied to clipboard

Yamaha's DTX920K is equipped with a tone generator to deliver the exceptionally real sound and feel of a set of an acoustic drumset. ...Read more

Yamaha DTX920K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX900 Module Image 1
Yamaha DTX920K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX900 Module Image 2
Yamaha DTX920K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX900 Module Image 3
Yamaha DTX920K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX900 Module Image 4
Yamaha DTX920K Electronic Drum Set 5-Piece Kit With TCS Snare And Tom Pads, 3 Cymbals And DTX900 Module
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

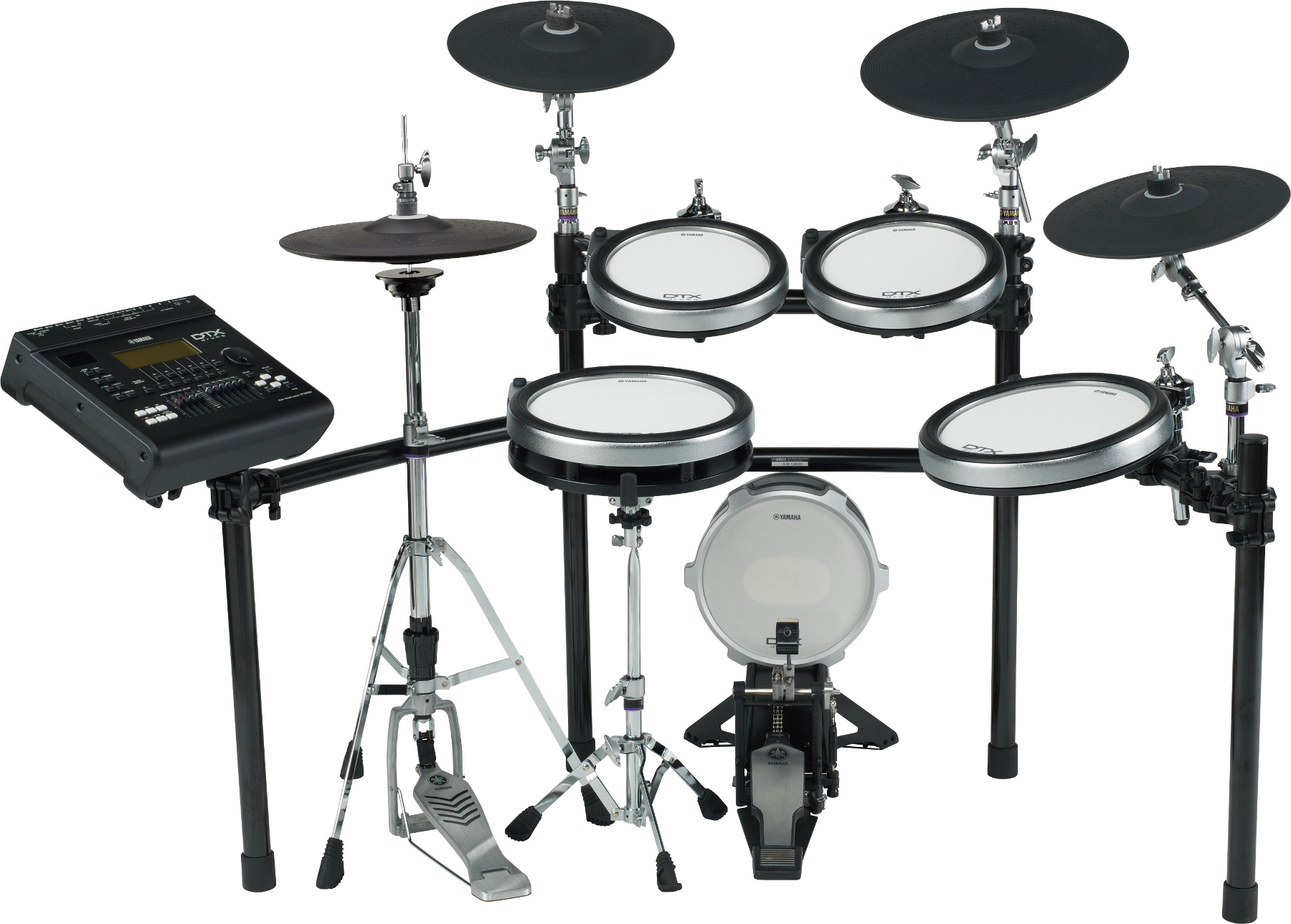

Yamaha's DTX920K is equipped with a tone generator to deliver the exceptionally real sound and feel of a set of an acoustic drumset. The DTX920K kit includes Yamaha's 3-zone DTX-PAD to mimic the real feel of snare and toms, 3-zone cymbal pads to produce different sounds depending upon where they are hit, a vertically movable hi-hat for natural feel and playability for both hands and feet, and a large, highly-stable kick pad.

Yamaha DTX920K Features:

  • Configuration
    • Module: DTX900M
    • Snare: XP120SD + SS662
    • Tom1, 2: XP100T x 2
    • Floor Tom: XP120T
    • Crash Cymbal1, 2: PCY135 x 2
    • Ride Cymbal: PCY155
    • Hi-Hat: RHH135 + HS740A
    • Kick: KP100
    • Rack: RS700
  • Delivers Real Playability: Experience the ultimate in feel and playability with the 3-zone DTX-PAD used for snare and tom drums, also the hi-hat controlled with the hi-hat stand, 3-zone cymbal pads that produce different sounds according to where the pad is hit, the large kickpad, and more.
  • Outstanding Performance for Performing Live ,Recording, or Music Production: Authentic acoustic drum sounds, expertly engineered drum sounds, percussion sounds, and more; the DTX900 Drum TriggerModule provides a wide-ranging collection that covers nearly any musical style.
  • Add Original Sounds with Sampling: Load data from an external source into the module then assign the voices to the pads to play.
  • Unique DTX Functions Deliver Awe-Inspiring ExpressivePower: Powerful capabilities like the Stack Function, which layers multiple voices on a single pad and plays them simultaneously, and the Alternate Function, which changes the voice each time the pad is struck, are unique to DTX drums. These let you create original ways to play that are impossible to perform with acoustic drums.

Yamaha DTX920K Specifications:

  • Configuration
    • Trigger Module: DTX900M
    • Rack System: RS700
  • Size/Weight (Trigger Module)
    • Dimensions (WxHxD): 13-5/32" x 11-15/64" x 3-25/32" (334 x 96 x 285 mm)
    • Weight: 7.94 lbs (3.6 kg)
  • Tone Generator
    • Maximum Polyphony: 64 notes
    • Voices
      • Drum and percussion: 1,115
      • Melodies: 211
    • Effects:
      • Reverb: 9
      • Chorus: 19
      • Variation: 51 (Drum Kit)
      • Insertion: 51 (AUX IN/SAMPLING IN)
      • Master Effect: 9
      • Master EQ: 5 bands
    • Drum kits:
      • Preset: 50
      • User: 50
      • External: 1,584 (or 99 x 16, in the external USB storage device)
    • Sequencer
    • Note Capacity: Approx. 152,000 notes
    • Note Resolution: 480 ppq (parts per quarter note)
    • Song Recording Type: Real-time replace
    • Song tracks: 1 track
    • Songs
      • Demo: 3
      • Practice: 44
      • Pad: 40
      • User: 50 (all of which may be edited and overwritten)
      • Sequence Formats: Proprietary, SMF format 0
    • Click
      • Tempo: 30 to 300 BPM, Tap Tempo supported.
      • Beat: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
      • Timing: Accents, Quarter note, Eighth note, Sixteenth note, Triplet
      • Training Functions: Measure break, Groove check, Rhythm gate
    • Other
      • Connectors: USB TO DEVICE/TO HOST, OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), DIGITAL OUT (EIAJ CP1201, IEC60958, S/P DIF), INDIVIDUAL OUTPUT 1 to 6 (Standard mono phone), Trigger Input 1 to 9, 12 to 15 (Standard stereo phone, L: Trigger Input, R: Rim Switch), Trigger Input 10 and 11 (Standard stereo phone, L: Trigger Input, R: Trigger Input), HI-HAT CONTROL (Standard stereo phone), AUX IN/SAMPLING IN (Standard stereo phone), PHONES (Standard stereo phone), MIDI IN/OUT
      • Accessories: Power Adapter (PA-300B, or an equivalent), Module holder, Module holder fastening screws x 4, Owner's Manual, Data List, DVD-ROM (Cubase AI)
    • Audio Import
    • Sampling: Available (512MB SDRAM built-in)
    • Samples: 1,016
    • Sample Data Bits: 16 bits
    • Sampling Time * Mono/Stereo: 44.1kHz: 6 min. 20 sec., 22.05kHz: 12 min. 40 sec., 11.025kHz: 25 min. 20 sec., 5.5125kHz: 55 min. 40 sec.
    • Sample formats: Proprietary, WAV, AIFF
