Community IC6-1082/26

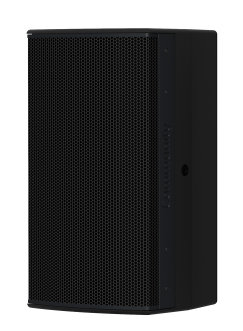

8-Inch Two-Way Installation Loudspeaker, For Indoor Use, Black

OUR PART #:  IC6-1082/26B

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues.
Learn More
Our Price: $1,083.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community IC6-1082/26
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint™ Flyware modular array brackets.

The Community IC6-1082/26 is designed for maximum performance in a minimal size enclosure. The large, rotatable horn coupled to a 1.75" (44mm) diaphragm HF driver provides consistent directivity and smooth response through the critical voice band, then seamlessly integrates with the high output 8" LF through the crossover region. The precisely engineered low velocity, flared port ensures low distortion, extended LF performance at any output level. Additionally, 8 ohm or 70V/100V models expand application flexibility both indoors and out. Multiple attachment points provide compatibility with a variety of Community and third party mounting brackets.

Community IC6-1082/26 Features:

  • Excellent LF extension and output in a very smallenclosure
  • Exceptional fidelity with elegant I SERIES aesthetics
  • Large, field-rotatable HF horn for smooth, consistentcoverage
  • Low impedance (8 ohm) or 70V/100V models available
  • Low profile U-Bracket or Vertical Yoke available, compatible with mostthird party wall and ceiling brackets

Community IC6-1082/26 Specifications:

  • Technical Specifications:
    • Operating Mode: Low Impedance or 70V/100V models
    • Operating Environment: Indoor
    • Operating Range: 52 Hz to 19.5 kHz
    • Nominal Beamwidth (H x V): 120° x 60°, rotatable wave guide
    • Transducers:
      • LF 1 x 8" (203mm) ferrite driver, 1.8" (45mm) voice coil
      • HF 1 x 1" (25mm) exit, 1.75" (44mm) voice coil, advanced polymer diaphragm, ferrite compression driver
    • Recommended Amplifiers: 250W - 500W @ 8 ohms, (45V - 63V)
  • Physical:
    • Input Connection: (1) Screw terminal block (5-position)
    • Mounting Points: (7) M10 threaded inserts; (4) M8 threaded inserts (rear)
    • Weight: 25 lbs (11.3 kg) loudspeaker
    • Dimensions (H x W x D): 18.75 x 10.40 x 10.63" (476 x 264 x 270mm)
U-bracket for IC6-1082 For Indoor Use, Black
Community IUB1082 U-bracket for IC6-1082 For Indoor Use, Black
The Community IUB1082 is a U-bracket for the IC6-1082. It allows for mounting of the IC6-1082, pivoting on the long axis individually. It weighs 6.3 lbs (2.9 kg). Note: Image shown is for display purposes only. For more information please ...
