Space Force™ Variable LED with Bridle and LumenRadio


Our Price: $3,780.00
List Price: $4,200.00
You save 10%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

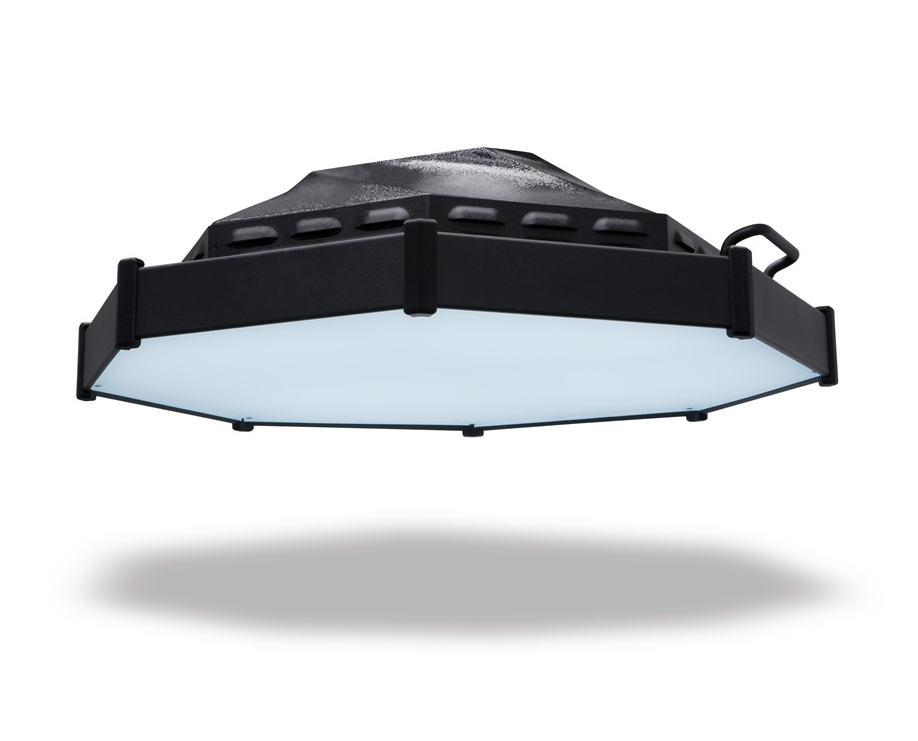

The Chroma-Q® Space Force™ is a cutting-edge white LED space light fixture that is a true replacement for equivalent conventional light sources commonly used in Film and TV studios around the world. This version, the CHSPFVLR is the Space Force variable LED fixture with bridle that also includes the LumenRadio installed. Unlike conventional fixtures, the Space Force has on-board power and control electronics - eliminating costly power cables and the need for dimmer racks. Control of color temperature and intensity is available via DMX wired, the optional LumenRadio CRMX wireless (included), or locally via the onboard encoders.

The Space Force benefits from cool running, energy efficiency, lightweight design and minimum maintenance. This fixture is CCT tuneable between 2,800K and 6,500K, and natively single source, the diffuse nature of its output negates the need for silks or skirts. The Space Force is built with a high efficiency diffuser that provides a fully homogenised beam spread.

It features extensive RDM functionality is provided through wired, or the optional LumenRadio CRMX, connections. Hanging options include a standard bridle, optional yoke and a low-profile hanging bracket. The Space Force is built with chassis mount powerCON TRUE1 connectors for power input/through and chassis mount XLR 5-pin for DMX input/through. The chassis is ground bonded.

Additional highlights of the Chroma-Q Space Force include:

Smooth, Soft Output: With a high degree of efficiency, the fixture is natively single source, removing the need for skirts or silks to diffuse the light. Designed for lighting stages and studios, the Space Force provides a high-quality, variable CCT soft white light. As a result of its low profile, lightweight and skirt-free design, the Space Force is quick and easy to set up at any height. Taking advantage of Chroma-Q's extensive experience and impressive track record in developing LED lighting solutions, the Space Force utilises the very latest technologies, high quality components and manufacturing techniques in order to deliver a reliable, premium performance light source.

A White Light for Every Application: The Chroma-Q Space Force is available as a variable white model 2,800K – 6,300K. Every unit is factory calibrated, to ensure consistent output and colour temperature.

Energy-Efficient: The Chroma-Q Space Force uses a fraction of the power required by conventional fixtures, while delivering all of the performance you require. Not only is the power consumption lower, so too is the heat produced - ensuring a cooler environment and lower air conditioning costs.

Convection Cooled: Using the same proven convection cooling technology found in other Chroma-Q LED fixtures - which eliminates the need for noisy cooling fans - the Space Force provides totally silent operation.

Long life: The Chroma-Q Space Force utilises LED technology to ensure consistent long life performance - removing the need for costly regular maintenance associated with conventional fixtures.

Chroma-Q Space Force Features:

  • Comparable to a traditional 6kW fixture
  • Up to 26,700 lumens
  • Variable white – 2,800K to 6,500K
  • Only 17.6 lb (8kg)
  • No fans, no noise
  • Smooth, soft uniform beam
  • Variable PWM flicker-free operation
  • Multiple hanging options
  • Wireless DMX / RDM
  • Superior unit-to-unit consistency
  • Chroma-Q's proven LED performance

Chroma-Q Space Force Specifications:

  • Product Code: CHSPFVLR - Space Force Variable with Bridle and LumenRadio Installed
  • Net Dimensions (WxHxD): 25.8" x 8" x 25.8" (655mm x203mm x 655mm)
  • Net Weight: 17.6 lbs (8kg)
  • Shipping Dimensions (WxHxD): 29" x 29" x 10" (737mm x737mm x 254mm)
  • Shipping Weight: 24 lbs (11kg)
  • Power Supply: Built-in
  • Power Input Rating: 100-240V AC 50-60Hz 400VA
  • Power Factor: 0.97
  • Power Consumption: 333W @ 120V AC, 331W @ 230V AC
  • Inrush Current: 56A @ 120V AC, 82A @ 230V AC
  • Idle Power Consumption: 18W @ 120/230V AC
  • Residual Current (max.): 0.4 mA
  • Power Connectors In/Out: powerCON TRUE1
  • Data Connector In/Out: XLR 5-pin
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Control Protocol: ANSI E1.20 RDM over ANSI E1.11 USITTDMX 512-A
  • Cooling System: Convection
  • Construction: Powder Coated Aluminium
  • Color: Black / Gray
  • Built-In Hardware: Suspension Hanger Brackets
  • IP Rating: IP20
  • Approvals: CISPR 22:2008 / EN55022:2010 (ClassA), & CISPR 24:2010 / EN55024:2010, FCC Part 15 Subpart B:2015, ICES-003:2012; UL 1573:2003 / R:2014-01, CSA C22.2 No. 160-M1983 IEC 60598
  • Control & Photometric Data:
    • Control Modes: Manual Intensity / Color Temperature, 2 channel Intensity / Color Temperature, Focus, Link, Memory 1 / 2, Addressing
    • Dimming Curve: Theatrical
    • Hot Lumen Output: Up to 26,700 lm
    • Optics: High Efficiency Diffuser
    • Beam Angle: 60°
    • Beam Distribution: Symmetrical Direct Illumination
    • CCT: 2,800 - 6,500K (+/- 200K)
    • CRI: Up to 97
    • TLCI: Up to 97
    • Sound Level: 24.6 dB
    • Lamp Life: L70 at 50,000 hours
